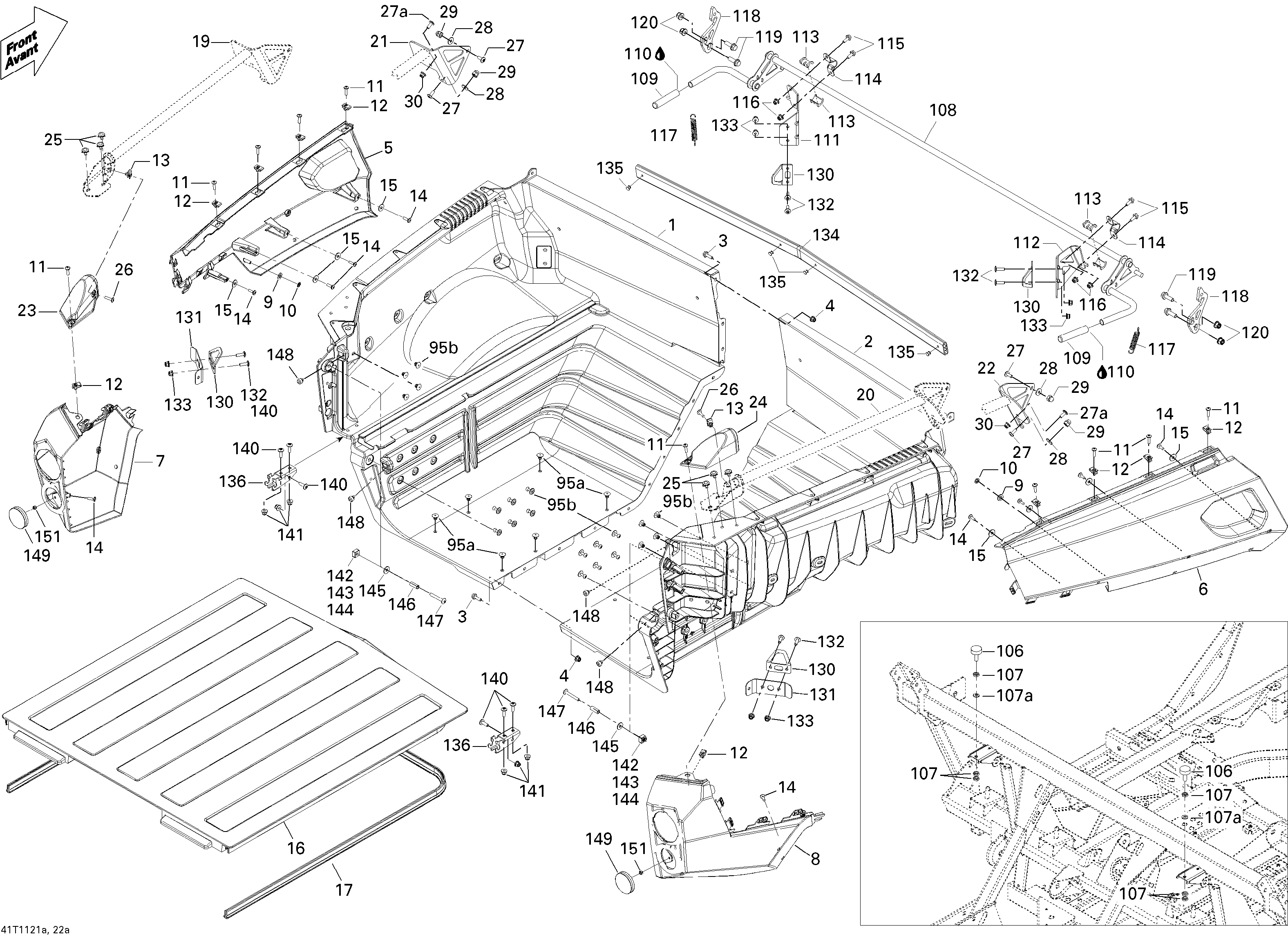

09- Rear Cargo Box 1 для BRP Commander 1000 - 2011

  • №
    Артикул
    Название
  • 1
    715001259 LH Box
    LH Box
  • 2
    715001257 RH Box
    RH Box
  • 3
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 4
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 5
    708300101 LH Rear Fender, Yellow. STD
    LH Rear Fender, Yellow. STD
  • 5
    708300226 LH Rear Fender, Red. XT Red
    LH Rear Fender, Red. XT Red
  • 5
    708300101 LH Rear Fender, Yellow. XT Yellow
    LH Rear Fender, Yellow. XT Yellow
  • 5
    708300437 LH Rear Fender, Camo. XT Camo
    LH Rear Fender, Camo. XT Camo
  • 5
    708300439 LH Rear Fender, Black. X
    LH Rear Fender, Black. X
  • 6
    708300102 RH Rear Fender, Yellow. STD
    RH Rear Fender, Yellow. STD
  • 6
    708300227 RH Rear Fender, Red. XT Red
    RH Rear Fender, Red. XT Red
  • 6
    708300102 RH Rear Fender, Yellow. XT Yellow
    RH Rear Fender, Yellow. XT Yellow
  • 6
    708300438 RH Rear Fender, Camo. XT Camo
    RH Rear Fender, Camo. XT Camo
  • 6
    708300440 RH Rear Fender, Black. X
    RH Rear Fender, Black. X
  • 7
    708300103 LH Rear Facia
    LH Rear Facia
  • 8
    708300104 RH Rear Facia
    RH Rear Facia
  • 9
    234081100 Flat Washer 8 mm
    Flat Washer 8 mm
  • 10
    732610072 Push Nut
    Push Nut
  • 11
    250000130 Torx Screw M5 X 20
    Torx Screw M5 X 20
  • 12
    250000079 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 13
    250000079 Panel Nut M5 X 0.8. XT
    Panel Nut M5 X 0.8. XT
  • 14
    250000146 Truss Head Torx Screw K50 X 16
    Truss Head Torx Screw K50 X 16
  • 15
    234062670 Flat Washer
    Flat Washer
  • 16
    708300131 Separator Pannel Ass'y. Includes 16 to 17
    Separator Pannel Ass'y. Includes 16 to 17
  • 17
    293250240 Neoprene seal
    Neoprene seal
  • 19
    708300231 LH Welded Rail. XT
    LH Welded Rail. XT
  • 20
    708300232 RH Welded Rail. XT
    RH Welded Rail. XT
  • 21
    708300333 LH Painted Rail Cap. Except XT
    LH Painted Rail Cap. Except XT
  • 22
    708300334 RH Painted Rail Cap. Except XT
    RH Painted Rail Cap. Except XT
  • 23
    708300233 LH Rail Cover. XT
    LH Rail Cover. XT
  • 24
    708300234 RH Rail Cover. XT
    RH Rail Cover. XT
  • 25
    293150190 Pop Rivet 3/16. XT
    Pop Rivet 3/16. XT
  • 26
    250000130 Torx Screw M5 X 20. XT
    Torx Screw M5 X 20. XT
  • 27
    250000129 Torx Screw M6 X 16
    Torx Screw M6 X 16
  • 27a
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 28
    234062670 Flat Washer
    Flat Washer
  • 29
    232361493 Domed Nut M6
    Domed Nut M6
  • 30
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 95a
    293150100 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 95b
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 106
    293720091 Frame Rubber Bumper
    Frame Rubber Bumper
  • 107
    232180600 Nut M8
    Nut M8
  • 107a
    234181401 Lock Washer 8 mm
    Lock Washer 8 mm
  • 108
    708300491 Latch Lever Ass'y
    Latch Lever Ass'y
  • 109
    708300358 Cap Latch Lever
    Cap Latch Lever
  • 110
    293800100 Loctite 406, 7 Oz
    Loctite 406, 7 Oz
  • 111
    708300278 LH Latch Lever Support
    LH Latch Lever Support
  • 112
    708300351 RH Latch Lever Support
    RH Latch Lever Support
  • 113
    705500033 Half Ring
    Half Ring
  • 114
    708300392 Clamp Reatiner
    Clamp Reatiner
  • 115
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 116
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 117
    708300454 Spring
    Spring
  • 118
    708300136 Box Retainer
    Box Retainer
  • 119
    207583086 Flanged Hex. Screw M8 X 30, Scotch Grip
    Flanged Hex. Screw M8 X 30, Scotch Grip
  • 120
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 130
    708300183 Retaining Plate
    Retaining Plate
  • 131
    708300206 Retaining Plate Support
    Retaining Plate Support
  • 132
    250000284 Torx Screw M6 x 25
    Torx Screw M6 x 25
  • 133
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 134
    708300346 Front Support
    Front Support
  • 135
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 136
    708300345 Upper Pivot Support
    Upper Pivot Support
  • 140
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 141
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 142
    269500725 Nut Housing Ass'y. Includes 142 to 144
    Nut Housing Ass'y. Includes 142 to 144
  • 143
    269500252 M6 Nut Housing Ass'y
    M6 Nut Housing Ass'y
  • 144
    232561600 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 145
    234062670 Flat Washer
    Flat Washer
  • 146
    517304852 Spacer
    Spacer
  • 147
    250000215 Torx Screw M6 X 45
    Torx Screw M6 X 45
  • 148
    293830005 Rubber Plug, Black
    Rubber Plug, Black
  • 149
    705002408 Reflector, Red. Except Europe
    Reflector, Red. Except Europe
  • 151
    232551414 Elastic Stop Nut M5. Except Europe
    Elastic Stop Nut M5. Except Europe
