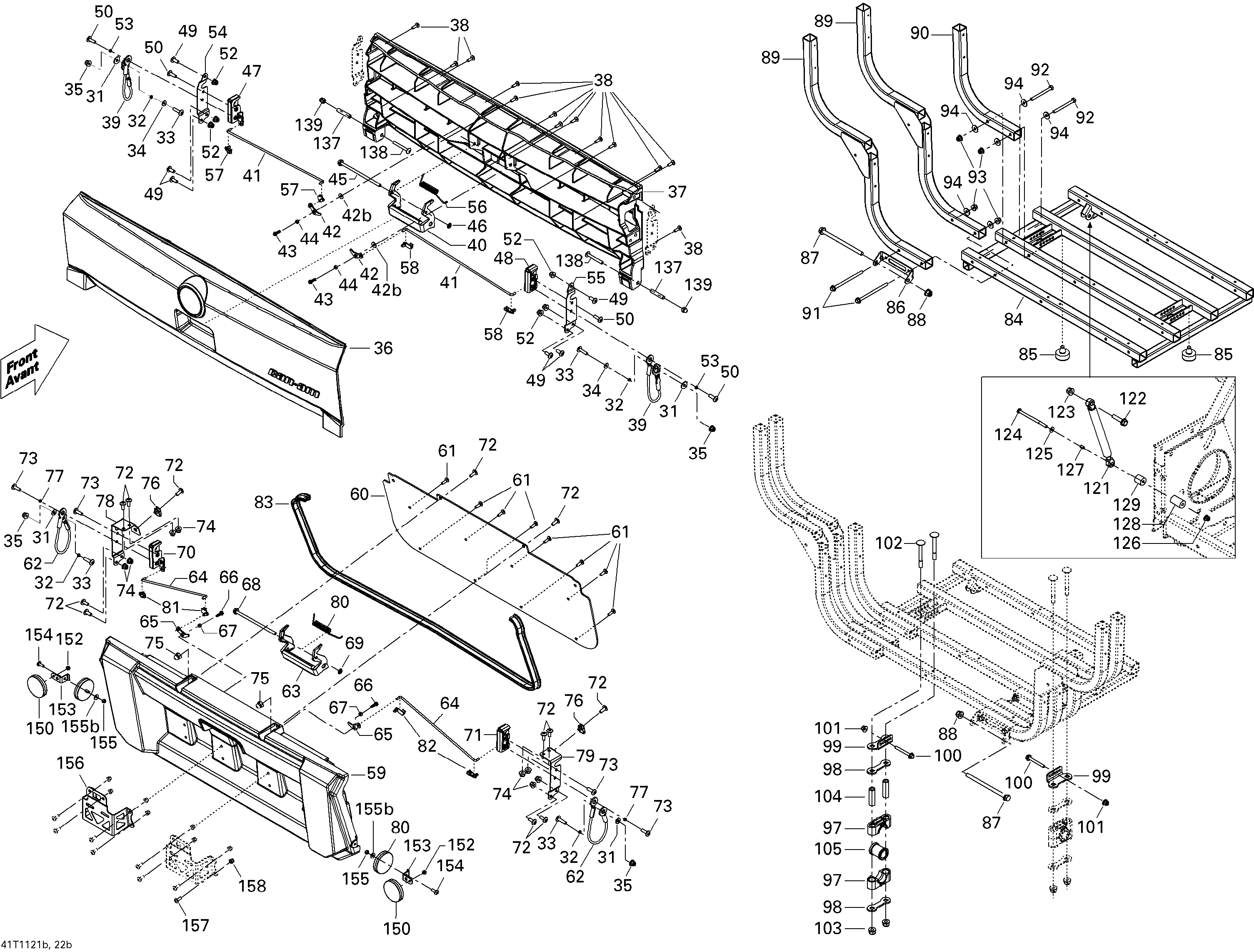

09- Rear Cargo Box 2 для BRP Commander 1000 - 2011

  • №
    Артикул
    Название
  • 31
    234062670 Flat Washer
    Flat Washer
  • 32
    293900101 Bushing
    Bushing
  • 33
    250000284 Torx Screw M6 x 25
    Torx Screw M6 x 25
  • 34
    224061121 Flat Washer
    Flat Washer
  • 35
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 36
    708300052 Outside Top Pannel, Yellow. X, Yellow
    Outside Top Pannel, Yellow. X, Yellow
  • 36
    708300441 Outside Top Pannel, Red. XT Red
    Outside Top Pannel, Red. XT Red
  • 36
    708300442 Outside Top Pannel, Camo. XT Camo
    Outside Top Pannel, Camo. XT Camo
  • 37
    708300053 Inside Top Pannel
    Inside Top Pannel
  • 38
    250000146 Truss Head Torx Screw K50 X 16
    Truss Head Torx Screw K50 X 16
  • 39
    708300092 Upper Cable
    Upper Cable
  • 40
    708300398 Handle
    Handle
  • 41
    708300160 Top Rod
    Top Rod
  • 42
    708300184 Activator
    Activator
  • 42b
    224061121 Flat Washer
    Flat Washer
  • 43
    241151640 Hex. Flanged Screw K50 X 16
    Hex. Flanged Screw K50 X 16
  • 44
    708300365 Bushing
    Bushing
  • 45
    230663084 Hex. Flanged Screw M6 X 130
    Hex. Flanged Screw M6 X 130
  • 46
    732610072 Push Nut
    Push Nut
  • 47
    708300162 LH Latch
    LH Latch
  • 48
    708300201 RH Latch
    RH Latch
  • 49
    250000129 Torx Screw M6 X 16
    Torx Screw M6 X 16
  • 50
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 52
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 53
    293900101 Bushing
    Bushing
  • 54
    708300359 LH Upper Support
    LH Upper Support
  • 55
    708300360 RH Upper Support
    RH Upper Support
  • 56
    708300219 Spring
    Spring
  • 57
    708300182 LH Tie Rod Clip
    LH Tie Rod Clip
  • 58
    708300202 RH Tie Rod Clip
    RH Tie Rod Clip
  • 59
    715001255 Outside Bottom Pannel
    Outside Bottom Pannel
  • 60
    708300073 Inside Bottom Pannel
    Inside Bottom Pannel
  • 61
    250000146 Truss Head Torx Screw K50 X 16
    Truss Head Torx Screw K50 X 16
  • 62
    708300218 Lower Cable
    Lower Cable
  • 63
    708300398 Handle
    Handle
  • 64
    708300164 Lower Bottom Rod
    Lower Bottom Rod
  • 65
    708300184 Activator
    Activator
  • 66
    241151640 Hex. Flanged Screw K50 X 16
    Hex. Flanged Screw K50 X 16
  • 67
    708300365 Bushing
    Bushing
  • 68
    230663084 Hex. Flanged Screw M6 X 130
    Hex. Flanged Screw M6 X 130
  • 69
    732610072 Push Nut
    Push Nut
  • 70
    708300162 LH Latch
    LH Latch
  • 71
    708300201 RH Latch
    RH Latch
  • 72
    250000129 Torx Screw M6 X 16
    Torx Screw M6 X 16
  • 73
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 74
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 75
    232361493 Domed Nut M6
    Domed Nut M6
  • 76
    250000048 Panel Nut M6 X 1.0
    Panel Nut M6 X 1.0
  • 77
    293900101 Bushing
    Bushing
  • 78
    708300361 LH Lower Support
    LH Lower Support
  • 79
    708300362 RH Lower Support
    RH Lower Support
  • 80
    708300219 Spring
    Spring
  • 81
    708300182 LH Tie Rod Clip
    LH Tie Rod Clip
  • 82
    708300202 RH Tie Rod Clip
    RH Tie Rod Clip
  • 83
    293250240 Neoprene seal
    Neoprene seal
  • 84
    708300167 Black Box Support
    Black Box Support
  • 85
    708000884 Rubber Stopper
    Rubber Stopper
  • 86
    708300185 Bracket Pivot
    Bracket Pivot
  • 87
    230683034 Hex. Flanged Screw M8 X 130
    Hex. Flanged Screw M8 X 130
  • 88
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 89
    708300174 Welded Lateral Support, Black
    Welded Lateral Support, Black
  • 90
    708300340 Lateral Support, Black
    Lateral Support, Black
  • 91
    207669584 Hex. Flanged Screw M6 X 95
    Hex. Flanged Screw M6 X 95
  • 92
    207066544 Hex. Screw M6 X 65
    Hex. Screw M6 X 65
  • 93
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 94
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 97
    506150400 Housing Half
    Housing Half
  • 98
    506150600 Stopper Plate
    Stopper Plate
  • 99
    708300210 Adjustable Stopper Plate
    Adjustable Stopper Plate
  • 100
    207665044 Hex. Flanged Screw M6 X 50
    Hex. Flanged Screw M6 X 50
  • 101
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 102
    207787044 Carriage Bolt M8 X 70
    Carriage Bolt M8 X 70
  • 103
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 104
    506150500 Housing Bushing
    Housing Bushing
  • 105
    708300172 Pivot Bushing
    Pivot Bushing
  • 121
    708300512 Gaz Shock
    Gaz Shock
  • 122
    207683544 Hex. Flanged Screw M8 X 35
    Hex. Flanged Screw M8 X 35
  • 123
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 124
    207069044 Hex. Screw M6 X 90
    Hex. Screw M6 X 90
  • 125
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 126
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 127
    708300366 Bushing
    Bushing
  • 128
    708300470 Spacer
    Spacer
  • 129
    708300471 Spacer
    Spacer
  • 137
    708300513 Bushing
    Bushing
  • 138
    250000239 Torx Truss Screw M6 X 50
    Torx Truss Screw M6 X 50
  • 139
    232361493 Domed Nut M6
    Domed Nut M6
  • 150
    705002408 Reflector, Red. Europe
    Reflector, Red. Europe
  • 152
    232551414 Elastic Stop Nut M5. Europe
    Elastic Stop Nut M5. Europe
  • 153
    708300367 Reflector Support. Europe
    Reflector Support. Europe
  • 154
    250000145 Torx Screw M5 X 14. Europe
    Torx Screw M5 X 14. Europe
  • 155
    232551414 Elastic Stop Nut M5. Europe
    Elastic Stop Nut M5. Europe
  • 155b
    234062670 Flat Washer
    Flat Washer
  • 156
    708300349 Plate Support. Europe
    Plate Support. Europe
  • 157
    250000145 Torx Screw M5 X 14. Europe
    Torx Screw M5 X 14. Europe
  • 158
    233251414 Hex. Flanged Elastic Nut M5. Europe
    Hex. Flanged Elastic Nut M5. Europe
