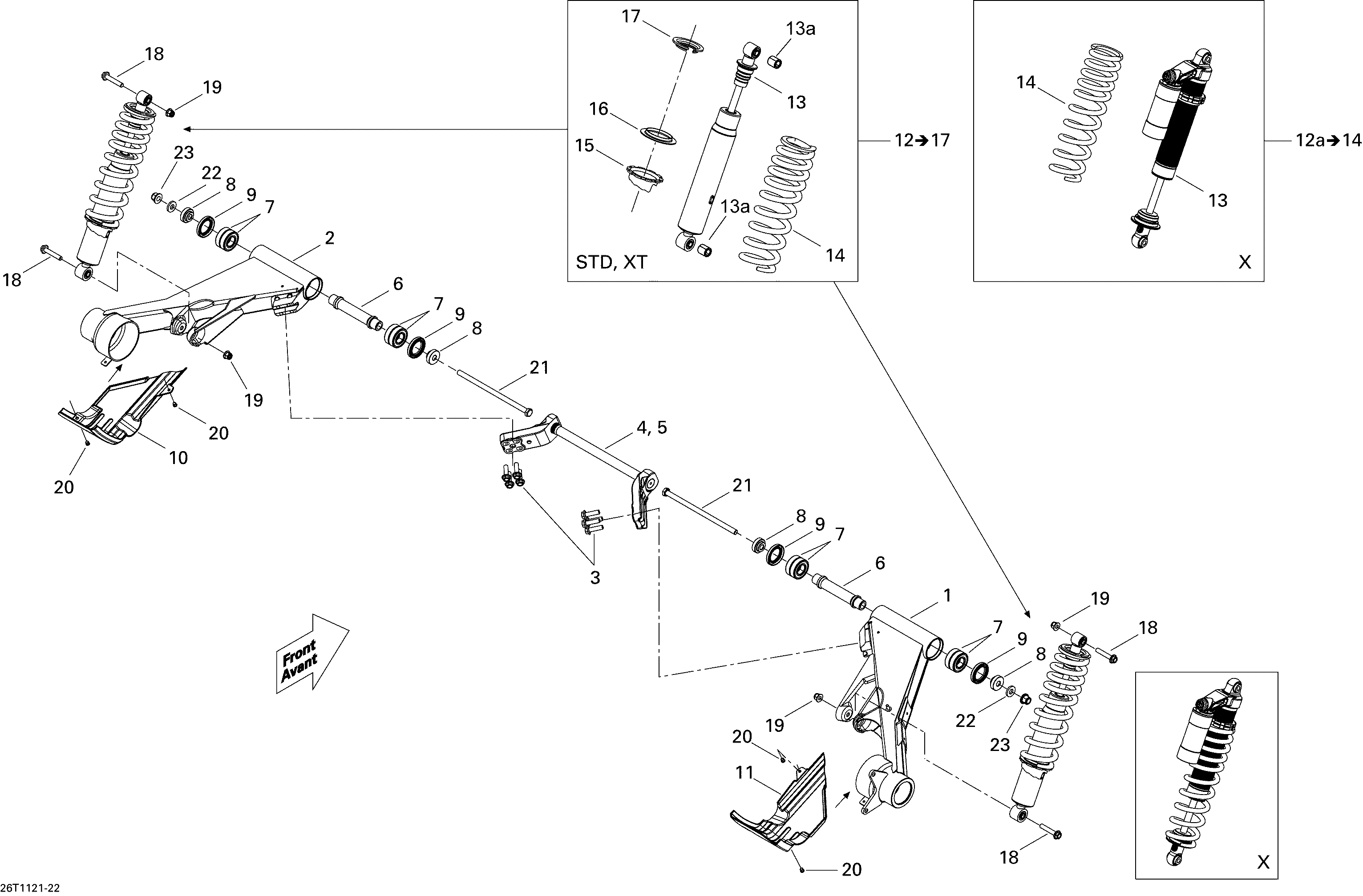

08- Rear Suspension для BRP Commander 1000 - 2011
-
№АртикулНазвание
-
1706000589 RH Swing ArmRH Swing Arm
-
2706000588 LH Swing ArmLH Swing Arm
-
3207503544 Hex. Flanged Screw M10 X 35Hex. Flanged Screw M10 X 35
-
4706000909 Sway Bar Ass'y. STD, XTSway Bar Ass'y. STD, XT
-
5706001014 Sway Bar Ass'y. XSway Bar Ass'y. X
-
6706000616 Pivot BushingPivot Bushing
-
7293350055 Ball BearingBall Bearing
-
8706000629 SpacerSpacer
-
9293200094 SealSeal
-
10706000630 LH Joint ProtectorLH Joint Protector
-
11706000814 RH Joint ProtectorRH Joint Protector
-
13706000615 Rear Shock Ass'y. STD, XTRear Shock Ass'y. STD, XT
-
13706000820 Rear Shock. XRear Shock. X
-
13a715900122 BushingBushing
-
14706000821 Rear Spring, Gold-Gold. XRear Spring, Gold-Gold. X
-
14706000667 Rear Spring, Blue-Gold. STD, XT Yellow ModelRear Spring, Blue-Gold. STD, XT Yellow Model
-
14706001043 Rear Spring, Blue-Yellow. XT Red ModelRear Spring, Blue-Yellow. XT Red Model
-
14706001045 Rear Spring, Green-Yellow. XT Camo ModelRear Spring, Green-Yellow. XT Camo Model
-
15706000910 Adjustable Ring. STD, XTAdjustable Ring. STD, XT
-
16706000911 Protector Ring. STD, XTProtector Ring. STD, XT
-
17706000567 Spring Stopper. STD, XTSpring Stopper. STD, XT
-
18207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
19233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
20293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
21250000515 Hex. Cap Screw M12 X 241Hex. Cap Screw M12 X 241
-
22250200120 Flat Washer M12Flat Washer M12
-
23233221416 Elastic Flange Nut M12Elastic Flange Nut M12
