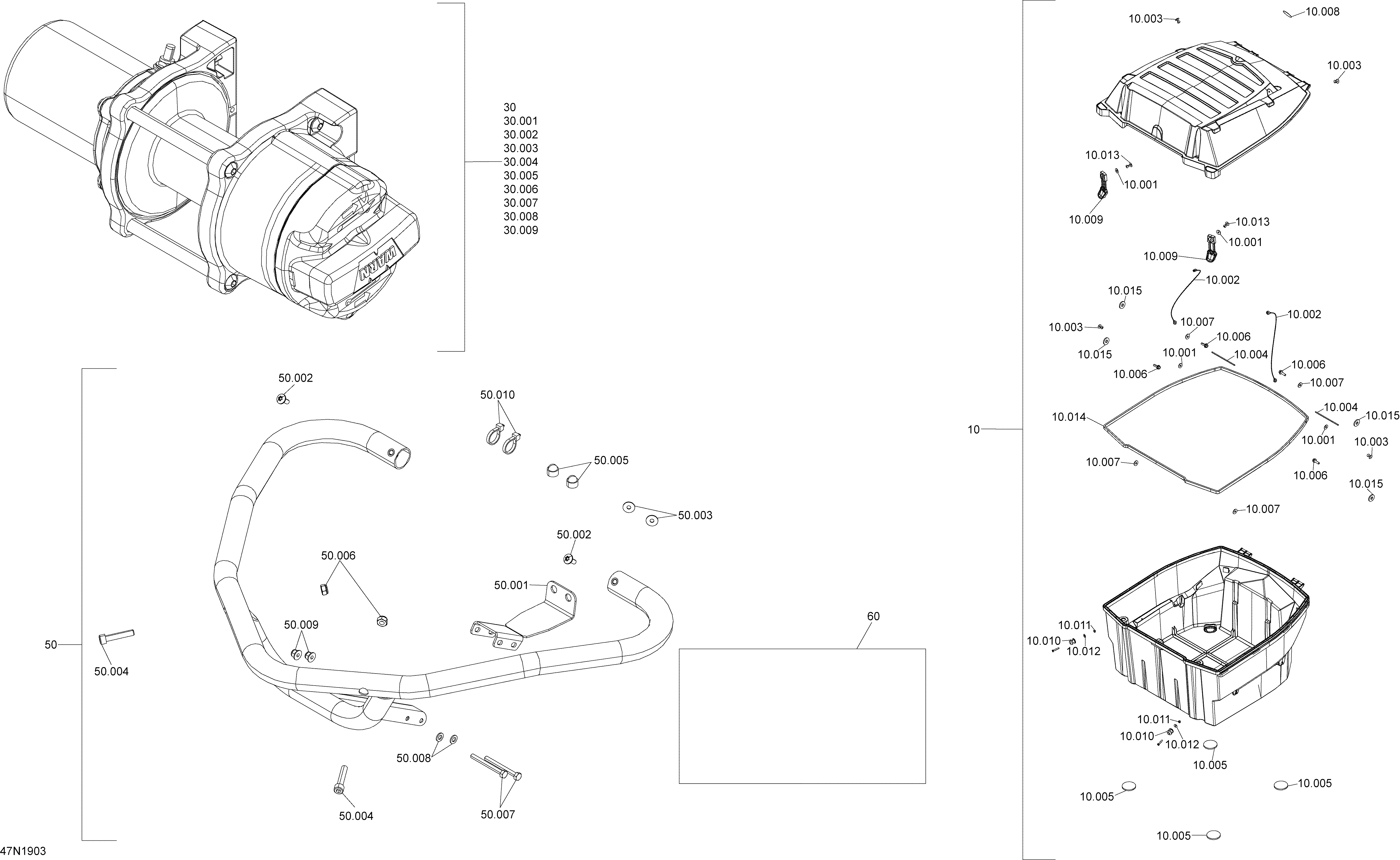

09- Options - SE для BRP Ski-Doo 006 - EXPEDITION LE-SE-SWT 900 ACE - 2019
-
№АртикулНазвание
-
10619560023 Cargo Box Ass'y. Includes 10 to 10,015Cargo Box Ass'y. Includes 10 to 10,015
-
10.001250200025 Washer M5Washer M5
-
10.002293750070 Seat Retainer CableSeat Retainer Cable
-
10.00336036 RivetRivet
-
10.004511000702 PinPin
-
10.005510005273 FoamFoam
-
10.006207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
10.007234062410 Flat Washer 6 mmFlat Washer 6 mm
-
10.008516008738 Logo BRP, 48mmLogo BRP, 48mm
-
10.009517304572 Latch-PanelLatch-Panel
-
10.01605449087 Counter RollerCounter Roller
-
10.011232541484 Elastic Stop Nut M4Elastic Stop Nut M4
-
10.01220037 WasherWasher
-
10.01336037 Black RivetBlack Rivet
-
10.014293250219 SealSeal
-
10.015510005844 Rubber ShimmRubber Shimm
-
20860200285 Current Outlet Kit. Includes 20 to 20,007Current Outlet Kit. Includes 20 to 20,007
-
20.001710001248 Outlet DCOutlet DC
-
20.002515176801 BracketBracket
-
20.00336108 RivetRivet
-
20.004410110700 Heat Grip SwitchHeat Grip Switch
-
20.005515175281 Switch CoverSwitch Cover
-
20.006515176802 HarnessHarness
-
20.007516003918 Power Outlet Decal (25W)Power Outlet Decal (25W)
-
30619400069 Winch Kit. Includes 30 to 30,009Winch Kit. Includes 30 to 30,009
-
30.001520000930 Winch Fastening Plate WeldWinch Fastening Plate Weld
-
30.002520000945 Winch Fastening PinWinch Fastening Pin
-
30.003293750069 Retainer CableRetainer Cable
-
30.004390909100 Avex RivetAvex Rivet
-
30.005414575600 Hair PinHair Pin
-
30.006293150211 RivetRivet
-
30.007520000947 Winch HolderWinch Holder
-
30.008520000948 Winch Support FoamWinch Support Foam
-
30.009414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
50860200537 Extra Bumber Paint. Includes 50 to 50,01Extra Bumber Paint. Includes 50 to 50,01
-
50.001502007022 Lower Fastening PlateLower Fastening Plate
-
50.002250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
50.00320117 WasherWasher
-
50.004205084044 Socket Head Screw M8 X 1.25 X 40Socket Head Screw M8 X 1.25 X 40
-
50.00528056 CoverCover
-
50.006233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
50.007207066044 Hex. Screw M6 X 60Hex. Screw M6 X 60
-
50.008234061410 Flat Washer 6 mmFlat Washer 6 mm
-
50.009233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
50.01293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
60549011353 Protection Plate 290x320Protection Plate 290x320
