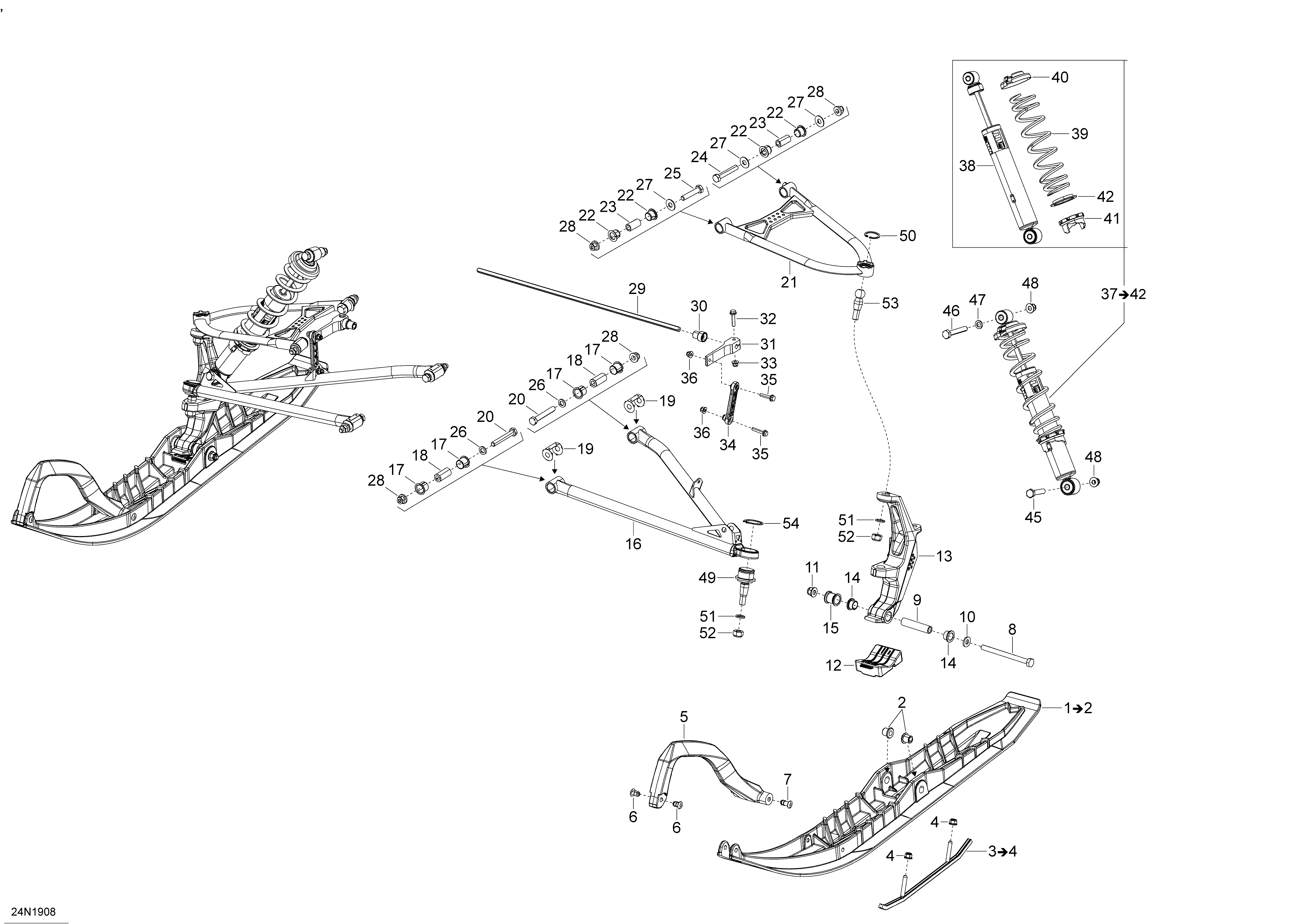

07- Front Suspension And Ski - 800R E-TEC - Europe для BRP Ski-Doo 006 - EXPEDITION LE-SE-SWT 900 ACE - 2019
-
№АртикулНазвание
-
1505073281 Black, DS Ski 2Black, DS Ski 2
-
3860201044 Carbide Runner Kit (Square Runner)Carbide Runner Kit (Square Runner)
-
4233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
5505073388 Red, Handle. Can Am RedRed, Handle. Can Am Red
-
5505072976 Black, Handle. BlackBlack, Handle. Black
-
5505073109 Handle. Viper RedHandle. Viper Red
-
6505071812 Retainer 17mm longRetainer 17mm long
-
7505072133 Retainer 23mm LongRetainer 23mm Long
-
8250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
9506133300 SpacerSpacer
-
10503192496 WasherWasher
-
11233201464 Hex. Elast. Flanged Nut M10 x 1.5Hex. Elast. Flanged Nut M10 x 1.5
-
12505072594 Ski StopperSki Stopper
-
13505073630 Black, LH Ski Leg. Package SEBlack, LH Ski Leg. Package SE
-
13505073628 LH Ski Leg. Except Package SELH Ski Leg. Except Package SE
-
13505073631 Black Ski Leg RH. Package SEBlack Ski Leg RH. Package SE
-
13505073629 RH Ski Leg. Except Package SERH Ski Leg. Except Package SE
-
14505072690 Leg BushingLeg Bushing
-
15505071999 SpacerSpacer
-
16505073584 Lower RH Arm, Black EpoxyLower RH Arm, Black Epoxy
-
16505073583 Lower LH Arm, Black EpoxyLower LH Arm, Black Epoxy
-
17505073330 CushionCushion
-
18505072209 BushingBushing
-
19505072634 Wear PlateWear Plate
-
20250001024 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
21505073588 Uper LH Arm, Black EpoxyUper LH Arm, Black Epoxy
-
21505073589 Uper RH Arm, Black EpoxyUper RH Arm, Black Epoxy
-
22505073329 Swivel BushingSwivel Bushing
-
23505072143 BushingBushing
-
24250000290 Screw Hex. M10 X 1.25 X 60Screw Hex. M10 X 1.25 X 60
-
25250000289 Screw Hex. M10 X 1.25 X 50Screw Hex. M10 X 1.25 X 50
-
26503189564 WasherWasher
-
27505072392 WasherWasher
-
28250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
800505072602 Stabilisator. Except Package SWTStabilisator. Except Package SWT
-
810505072064 Bushing. Except Package SWTBushing. Except Package SWT
-
810572091300 Cap. Package SWTCap. Package SWT
-
31505072394 Stabilisator Lever. Except Package SWTStabilisator Lever. Except Package SWT
-
32207663046 Flanged Hex. Screw M6 X 30. Except Package SWTFlanged Hex. Screw M6 X 30. Except Package SWT
-
33233261416 Elastic Flanged Nut M6 X 1.0. Except Package SWTElastic Flanged Nut M6 X 1.0. Except Package SWT
-
34505072204 Sway Bar Double Joint Link. Except Package SWTSway Bar Double Joint Link. Except Package SWT
-
35207663046 Flanged Hex. Screw M6 X 30. Except Package SWTFlanged Hex. Screw M6 X 30. Except Package SWT
-
36233261416 Elastic Flanged Nut M6 X 1.0. Except Package SWTElastic Flanged Nut M6 X 1.0. Except Package SWT
-
38505072517 Front ShockFront Shock
-
38505073342 Front Shock (EUR)Front Shock (EUR)
-
38505072517 Front ShockFront Shock
-
38505073342 Front Shock (EUR)Front Shock (EUR)
-
38505072517 Front ShockFront Shock
-
39505073827 SpringSpring
-
39505074329 Black Spring 300mm-18n/mmBlack Spring 300mm-18n/mm
-
39505073827 SpringSpring
-
39505074329 Black Spring 300mm-18n/mmBlack Spring 300mm-18n/mm
-
39505073827 SpringSpring
-
40230076 Spring SeatSpring Seat
-
40706200881 Spring StopperSpring Stopper
-
40230076 Spring SeatSpring Seat
-
40706200881 Spring StopperSpring Stopper
-
40230076 Spring SeatSpring Seat
-
41505073625 Adjustment CamAdjustment Cam
-
42503191872 Spring GuideSpring Guide
-
45207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
46207006544 Hex. Screw M10 X 1.5 X 65Hex. Screw M10 X 1.5 X 65
-
47503189564 WasherWasher
-
48233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
49505073636 Ball JointBall Joint
-
50293370070 CirclipCirclip
-
51234021410 Flat Washer 12 mmFlat Washer 12 mm
-
52250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
53505072913 Upper Ball JointUpper Ball Joint
-
54293370035 CirclipCirclip
-
60505072448 O-Ring. Not ShownO-Ring. Not Shown
