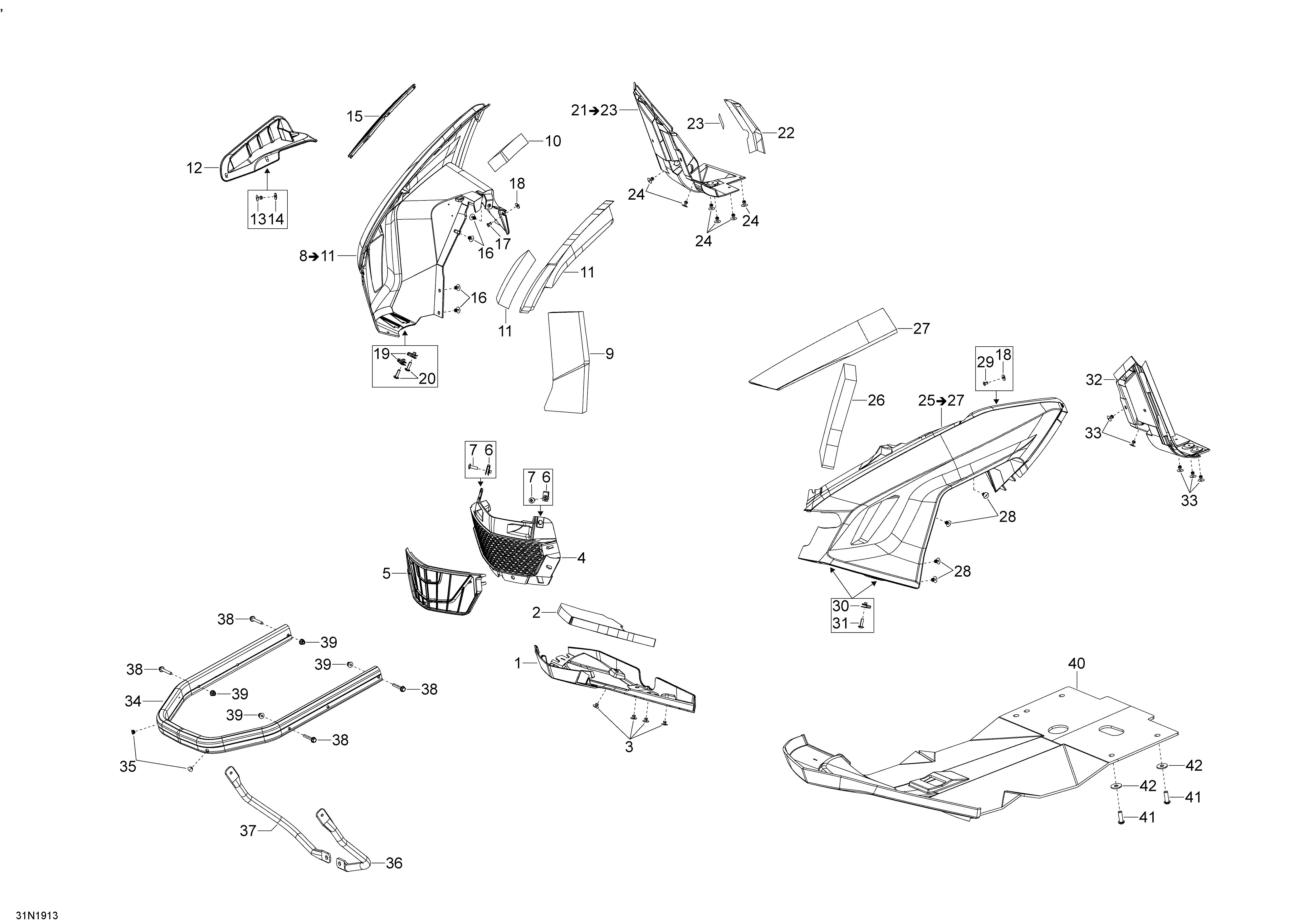

09- Bottom Pan - 900 ACE для BRP Ski-Doo 006 - EXPEDITION LE-SE-SWT 900 ACE - 2019

  • №
    Артикул
    Название
  • 1
    502008006 Black, Front Bottom Pan
    Black, Front Bottom Pan
  • 2
    502007002 Insulator
    Insulator
  • 3
    293150103 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 4
    502007145 Grill
    Grill
  • 5
    502007393 Front Grill With Mesh. Package EXTREME
    Front Grill With Mesh. Package EXTREME
  • 50
    732610072 Push Nut. Package EXTREME. Not Shown
    Push Nut. Package EXTREME. Not Shown
  • 6
    250000957 Extruded Panel Nut M6
    Extruded Panel Nut M6
  • 7
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 8
    502007991 Black, RH Bottom Pan Ass'y. Package SE. Includes 8 to 11
    Black, RH Bottom Pan Ass'y. Package SE. Includes 8 to 11
  • 8
    502007993 Black, RH Bottom Pan Ass'y. Package SWT & LE. Includes 8 to 11
    Black, RH Bottom Pan Ass'y. Package SWT & LE. Includes 8 to 11
  • 8
    502007995 RH Bottom Pan Ass'y. Package EXTREME. Includes 8 to 11
    RH Bottom Pan Ass'y. Package EXTREME. Includes 8 to 11
  • 9
    502007526 Insulator
    Insulator
  • 11
    502007009 Insulator. Except Package EXTREME
    Insulator. Except Package EXTREME
  • 11
    517305977 Insulator. Package EXTREME
    Insulator. Package EXTREME
  • 12
    517306982 RH Bottom Pan Air Vent. Package EXTREME
    RH Bottom Pan Air Vent. Package EXTREME
  • 13
    293150104 Pop Rivet 3/16''. Package EXTREME
    Pop Rivet 3/16''. Package EXTREME
  • 14
    250200025 Washer M5. Package EXTREME
    Washer M5. Package EXTREME
  • 15
    517305976 Bottom Pan Grill RH. Package EXTREME
    Bottom Pan Grill RH. Package EXTREME
  • 16
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 17
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 18
    234052450 Flat Washer
    Flat Washer
  • 19
    250000957 Extruded Panel Nut M6
    Extruded Panel Nut M6
  • 20
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 21
    502008010 RH Rear Bottom Pan Ass'y. Includes 21 to 23
    RH Rear Bottom Pan Ass'y. Includes 21 to 23
  • 22
    502007038 Aluminium Foil
    Aluminium Foil
  • 23
    44110 Aluminum foil
    Aluminum foil
  • 24
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 25
    502008000 Black, LH Bottom Pan Ass'y. Except Package SE. Includes 25 to 27
    Black, LH Bottom Pan Ass'y. Except Package SE. Includes 25 to 27
  • 25
    502008001 Black, LH Bottom Pan Ass'y. Package SE. Includes 25 to 27
    Black, LH Bottom Pan Ass'y. Package SE. Includes 25 to 27
  • 26
    502007003 Insulator
    Insulator
  • 27
    502007185 Insulator
    Insulator
  • 28
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 29
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 30
    250000957 Extruded Panel Nut M6
    Extruded Panel Nut M6
  • 31
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 32
    502008012 LH Rear Bottom Pan
    LH Rear Bottom Pan
  • 33
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 34
    502007684 Clear Anod. Bumper. Package SWT & LE
    Clear Anod. Bumper. Package SWT & LE
  • 34
    502007685 Black Anod. Bumper. Package EXTREME & SE
    Black Anod. Bumper. Package EXTREME & SE
  • 35
    293730041 Full Moon Dart 8 mm. Package SWT & LE
    Full Moon Dart 8 mm. Package SWT & LE
  • 35
    293730047 Black Dart 8 mm. Package EXTREME
    Black Dart 8 mm. Package EXTREME
  • 36
    502007014 LH Bumper Support
    LH Bumper Support
  • 37
    502007015 RH Bumper Support
    RH Bumper Support
  • 38
    207664044 Hex. Flanged Screw M6 X 40
    Hex. Flanged Screw M6 X 40
  • 39
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 60
    518328317 Oil Plate. Not Shown. Includes 860 to 860a
    Oil Plate. Not Shown. Includes 860 to 860a
  • 60a
    605636003 Clinch Nut M6 Hexsert. Not Shown
    Clinch Nut M6 Hexsert. Not Shown
  • 60
    250000767 Torx Truss Screw M6 X 12. Not Shown
    Torx Truss Screw M6 X 12. Not Shown
  • 60
    250000757 Screw-Torx Button Head M8 X 25 S.Gr. Package SE. Not Shown
    Screw-Torx Button Head M8 X 25 S.Gr. Package SE. Not Shown
  • 60
    234082410 Flat Washer 8 mm. Package SE. Not Shown
    Flat Washer 8 mm. Package SE. Not Shown
