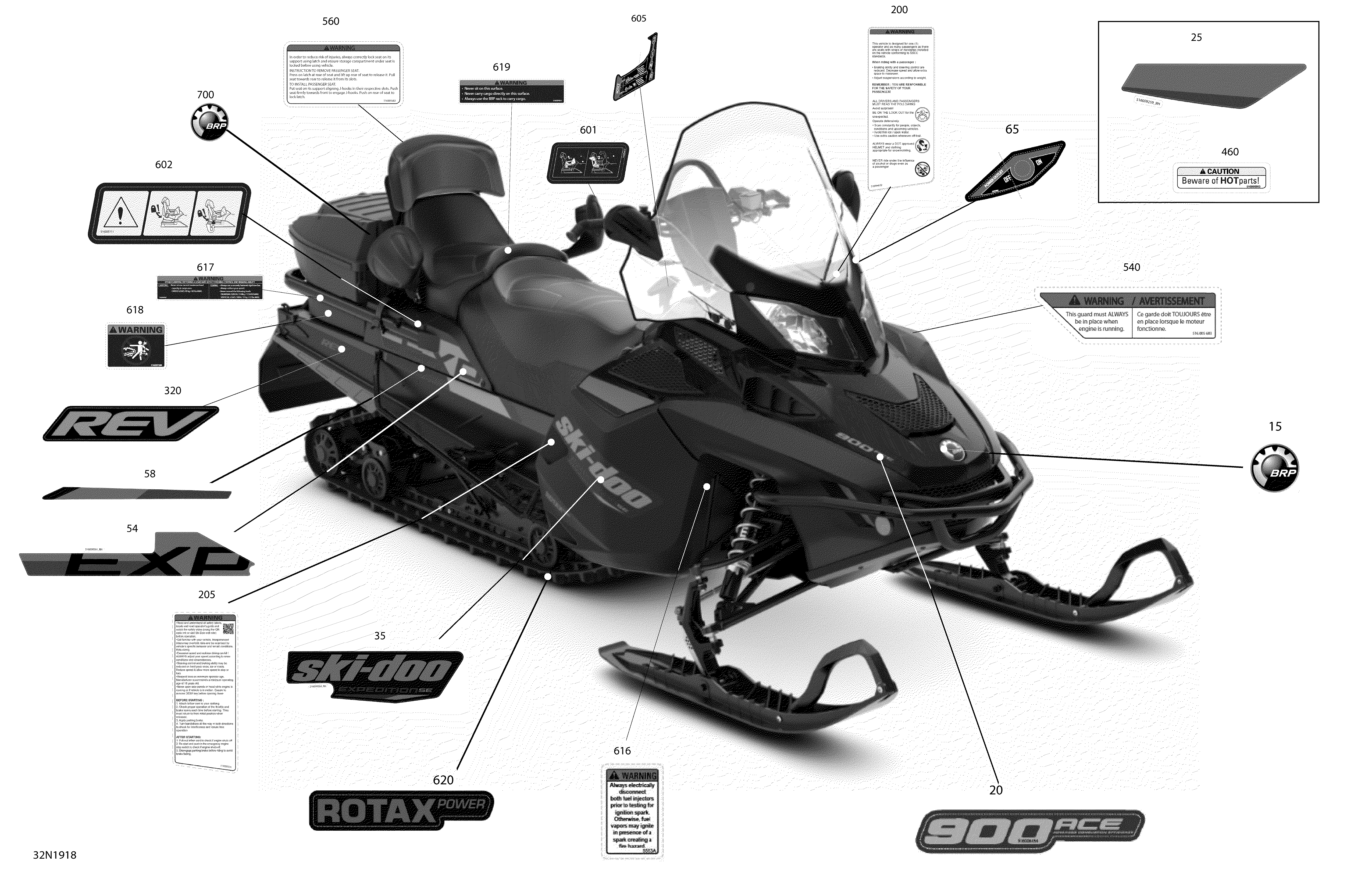

09- Decals - SE для BRP Ski-Doo 006 - EXPEDITION LE-SE-SWT 900 ACE - 2019
-
№АртикулНазвание
-
15516008739 BRP Logo, 68mmBRP Logo, 68mm
-
20516006454 Hood Decal ''900 Ace''Hood Decal ''900 Ace''
-
25516009113 Access Panel Decal. Except Viper RedAccess Panel Decal. Except Viper Red
-
25516009259 Access Panel Decal. Viper RedAccess Panel Decal. Viper Red
-
34516009497 LH/RH Side Panel DecalLH/RH Side Panel Decal
-
35516009118 LH/RH Side Panel Decal. Except Viper RedLH/RH Side Panel Decal. Except Viper Red
-
35516009260 LH/RH Side Panel Decal. Viper RedLH/RH Side Panel Decal. Viper Red
-
54516009122 LH/RH Storage Box Decal. Except Viper RedLH/RH Storage Box Decal. Except Viper Red
-
54516009261 LH/RH Storage Box Decal. Viper RedLH/RH Storage Box Decal. Viper Red
-
58516009125 LH RH Decal, Frame. Except Viper RedLH RH Decal, Frame. Except Viper Red
-
58516009262 LH RH Decal, Frame. Viper RedLH RH Decal, Frame. Viper Red
-
65516004309 Decal, Power Outlet SwitchDecal, Power Outlet Switch
-
200516004652 Warning DecalWarning Decal
-
205516009224 Warning DecalWarning Decal
-
320516008835 Decal '' Rev ''Decal '' Rev ''
-
460516006903 Hot Parts DecalHot Parts Decal
-
540516005683 Security label, drive pulley coverSecurity label, drive pulley cover
-
560516005682 Decal warningDecal warning
-
601516006873 Backseat Handle DecalBackseat Handle Decal
-
602516005111 Instruction Decal, Back Seat LockingInstruction Decal, Back Seat Locking
-
605516004305 Instruction Label, TransmissionInstruction Label, Transmission
-
617516004960 Rear Security Decal, EnglishRear Security Decal, English
-
618516007583 Rotating Track Warning DecalRotating Track Warning Decal
-
619516004961 Security DecalSecurity Decal
-
620516008760 Rotax Power DecalRotax Power Decal
-
700516008738 BRP Logo, 48mmBRP Logo, 48mm
