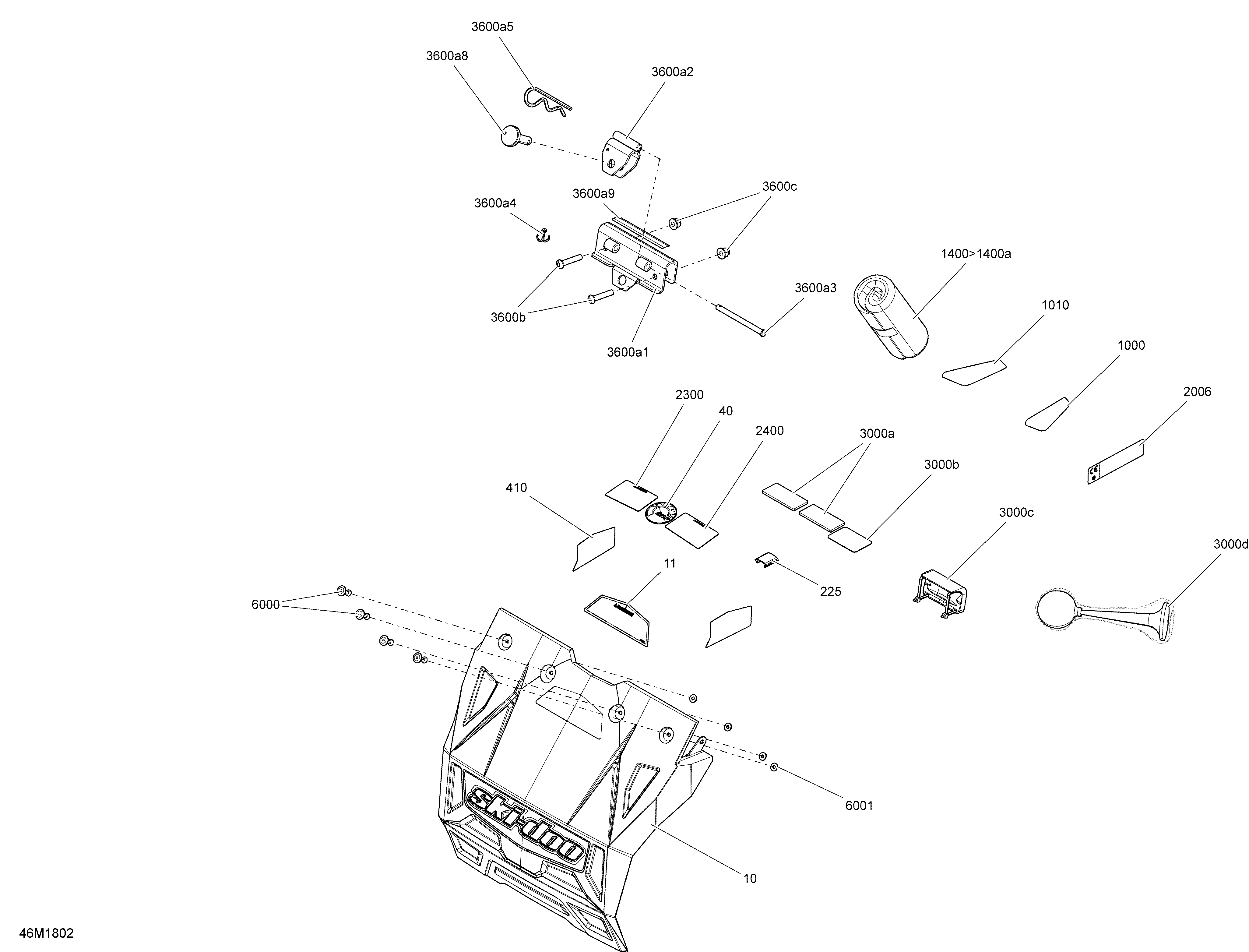

09- Utilities Expedition 600 ACE & 900 ACE для BRP Ski-Doo 2- EXPEDITION SPORT 600 ACE - 2018
-
№АртикулНазвание
-
10520001340 Snow GuardSnow Guard
-
11516005175 Warning Decal, TrackWarning Decal, Track
-
40516008738 Emblem Logo BrpEmblem Logo Brp
-
225520000829 Radiator TrimRadiator Trim
-
400520000881 Red RH Rear Reflector. North AmericaRed RH Rear Reflector. North America
-
400520000883 Yellow RH Rear Reflector. EuropeYellow RH Rear Reflector. Europe
-
410520000880 Red LH Rear Reflector. North AmericaRed LH Rear Reflector. North America
-
410520000882 Yellow LH Rear Reflector. EuropeYellow LH Rear Reflector. Europe
-
1000520001237 Yellow RH Front ReflectorYellow RH Front Reflector
-
1010520001236 Yellow LH Front ReflectorYellow LH Front Reflector
-
1400520001591 Tools Kit. Includes 1400 to 1400aTools Kit. Includes 1400 to 1400a
-
1400a529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
2006516008823 Ce Decal.. EuropeCe Decal.. Europe
-
2300516006908 Warning DecalWarning Decal
-
2400516005587 RH Warning Decal, SafetyRH Warning Decal, Safety
-
3000a520000271 Amber Reflector. EuropeAmber Reflector. Europe
-
3000b415037900 White Reflector. EuropeWhite Reflector. Europe
-
3000c520000871 Reflector Support. EuropeReflector Support. Europe
-
3000d549011291 Horn. EuropeHorn. Europe
-
3600a1511000768 Support. North AmericaSupport. North America
-
3600a1511000554 Support. EuropeSupport. Europe
-
3600a2511000521 Hitch Plate Welded. North AmericaHitch Plate Welded. North America
-
3600a2511000588 Hitch Plate. EuropeHitch Plate. Europe
-
3600a3511000520 Clevis PinClevis Pin
-
3600a4371800200 Cotter PinCotter Pin
-
3600a5114045200 Hair Pin. EuropeHair Pin. Europe
-
3600a8511000555 Pin. EuropePin. Europe
-
3600a9516004568 Warning Decal, SecurityWarning Decal, Security
-
3600b205484546 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
3600c233281466 Elastic Flang Nut M8. North AmericaElastic Flang Nut M8. North America
-
3600c233281414 Hex. Flanged Elastic Nut M8. EuropeHex. Flanged Elastic Nut M8. Europe
-
6000293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
6001517124300 WasherWasher
