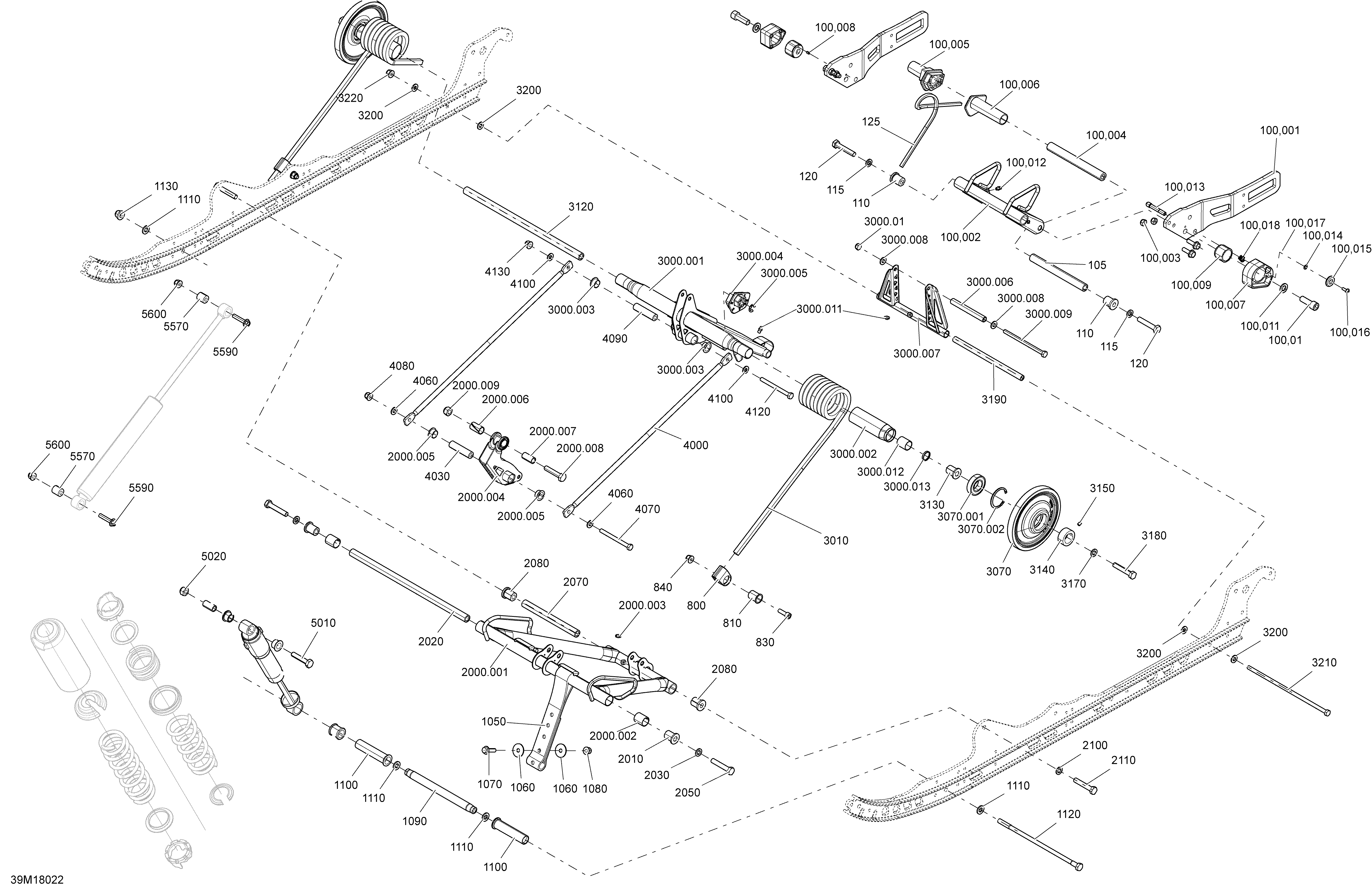

08- Rear Suspension Expedition - Superior для BRP Ski-Doo 2- EXPEDITION SPORT 600 ACE - 2018

  • №
    Артикул
    Название
  • 100.001
    503193970 RH Rail Pivot
    RH Rail Pivot
  • 100.001
    503193969 LH Rail Pivot
    LH Rail Pivot
  • 100.002
    503192647 Runner Pivot. Includes 100,003 to 100,004
    Runner Pivot. Includes 100,003 to 100,004
  • 100.003
    232581414 Hex. Elastic Stop Nut M8
    Hex. Elastic Stop Nut M8
  • 100.004
    503191608 Cam Axel
    Cam Axel
  • 100.005
    503191190 RH Spring Cam
    RH Spring Cam
  • 100.006
    503191668 LH Spring Cam
    LH Spring Cam
  • 100.007
    503192426 LH Block
    LH Block
  • 100.007
    503192427 RH Block
    RH Block
  • 100.008
    250400005 Dowel Pin 4 X 8 mm
    Dowel Pin 4 X 8 mm
  • 100.009
    503189488 Block Guide
    Block Guide
  • 100.01
    205523544 Socket Head Screw M12 X 35, Scotch Grip
    Socket Head Screw M12 X 35, Scotch Grip
  • 100.011
    503189148 Washer
    Washer
  • 100.012
    408200700 Grease Fitting
    Grease Fitting
  • 100.013
    503192437 Rode
    Rode
  • 100.014
    234051410 Flat Washer M5
    Flat Washer M5
  • 100.015
    503192438 Handle
    Handle
  • 100.016
    250000742 Torx Screw M5 X 14
    Torx Screw M5 X 14
  • 100.017
    293370068 Circlip
    Circlip
  • 100.018
    503192436 Compression Spring
    Compression Spring
  • 105
    503191279 Lower Shaft
    Lower Shaft
  • 110
    503189324 Bushing
    Bushing
  • 115
    503192496 Washer
    Washer
  • 120
    250000605 Hex. ScrewS.GRIP M10 X 55
    Hex. ScrewS.GRIP M10 X 55
  • 125
    503194624 Spring
    Spring
  • 800
    503191183 Spring Support
    Spring Support
  • 810
    503190754 Retainer Cushion
    Retainer Cushion
  • 830
    205082554 Socket Screw M8 X 25
    Socket Screw M8 X 25
  • 840
    233281466 Elastic Flang Nut M8
    Elastic Flang Nut M8
  • 1050
    503192360 Stopper Strap
    Stopper Strap
  • 1060
    250200128 Flat Washer 8 mm
    Flat Washer 8 mm
  • 1070
    207683044 Hex. Flanged Screw M8 X 30
    Hex. Flanged Screw M8 X 30
  • 1080
    233281466 Elastic Flang Nut M8
    Elastic Flang Nut M8
  • 1090
    503193435 Pivot Axle
    Pivot Axle
  • 1100
    503191259 Center Bushing
    Center Bushing
  • 1110
    250200143 Flat Washer
    Flat Washer
  • 1120
    503193227 Bolt M10 X 251MM
    Bolt M10 X 251MM
  • 1130
    233201466 Flanged Elastic Nut M10
    Flanged Elastic Nut M10
  • 2000.001
    503191752 Front Arm. Includes 2000,001 to 2000,002
    Front Arm. Includes 2000,001 to 2000,002
  • 2000.002
    503191556 Extended Bushing
    Extended Bushing
  • 2000.003
    408200700 Grease Fitting. Includes 2000,004 to 2000,007
    Grease Fitting. Includes 2000,004 to 2000,007
  • 2000.004
    503192211 Rocker
    Rocker
  • 2000.005
    503191555 Swivel Bushing
    Swivel Bushing
  • 2000.006
    503193037 Bushing
    Bushing
  • 2000.007
    503189282 Bushing
    Bushing
  • 2000.008
    207005044 Hex. Screw M10 X 50
    Hex. Screw M10 X 50
  • 2000.009
    233601416 Elastic Locking Nut M10
    Elastic Locking Nut M10
  • 2010
    503191262 Bushing
    Bushing
  • 2020
    503191215 Upper Shaft
    Upper Shaft
  • 2030
    503192496 Washer
    Washer
  • 2050
    250000605 Hex. ScrewS.GRIP M10 X 55
    Hex. ScrewS.GRIP M10 X 55
  • 2070
    503191279 Lower Shaft
    Lower Shaft
  • 2080
    503189324 Bushing
    Bushing
  • 2100
    250200143 Flat Washer
    Flat Washer
  • 2110
    250000605 Hex. ScrewS.GRIP M10 X 55
    Hex. ScrewS.GRIP M10 X 55
  • 3000.001
    503191762 Rear Arm. Includes 3000,001 to 3000,002
    Rear Arm. Includes 3000,001 to 3000,002
  • 3000.002
    572080700 Bushing
    Bushing
  • 3000.003
    503191555 Swivel Bushing
    Swivel Bushing
  • 3000.004
    503191565 LH Cam Adjuster
    LH Cam Adjuster
  • 3000.004
    503191566 RH Cam Adjuster
    RH Cam Adjuster
  • 3000.005
    293370013 E-Circlip
    E-Circlip
  • 3000.006
    503144300 Upper Axle, Pivot Arm
    Upper Axle, Pivot Arm
  • 3000.007
    503191209 Pivot Arm. Includes 3000,009 to 3000,01
    Pivot Arm. Includes 3000,009 to 3000,01
  • 3000.008
    503189157 Washer
    Washer
  • 3000.009
    732601197 Bolt M8, Short
    Bolt M8, Short
  • 3000.01
    232581414 Hex. Elastic Stop Nut M8
    Hex. Elastic Stop Nut M8
  • 3000.011
    408200700 Grease Fitting
    Grease Fitting
  • 3000.012
    503191556 Extended Bushing
    Extended Bushing
  • 3000.013
    503191651 Washer
    Washer
  • 3010
    503192271 Black LH Spring, Square. North America Models
    Black LH Spring, Square. North America Models
  • 3010
    503193539 Black LH Spring, Square. Europe Models
    Black LH Spring, Square. Europe Models
  • 3010
    503192270 Black RH Spring, Square. North America Models
    Black RH Spring, Square. North America Models
  • 3010
    503193538 Black RH Spring, Square. Europe Models
    Black RH Spring, Square. Europe Models
  • 3070
    503191738 Black Wheel Ass'y, 155 mm. Includes 3070 to 3070,002
    Black Wheel Ass'y, 155 mm. Includes 3070 to 3070,002
  • 3070.001
    503193548 Ball Bearing
    Ball Bearing
  • 3070.002
    415129780 Retaining Ring
    Retaining Ring
  • 3120
    503191215 Upper Shaft
    Upper Shaft
  • 3130
    503191262 Bushing
    Bushing
  • 3140
    503168800 Retaining Ring
    Retaining Ring
  • 3150
    206260844 Socket Set Screw M6 X 8
    Socket Set Screw M6 X 8
  • 3170
    503192496 Washer
    Washer
  • 3180
    250000605 Hex. ScrewS.GRIP M10 X 55
    Hex. ScrewS.GRIP M10 X 55
  • 3190
    503189156 Pivot Arm Axle
    Pivot Arm Axle
  • 3200
    503192494 Washer
    Washer
  • 3210
    503192440 Bolt M8 X 248mm
    Bolt M8 X 248mm
  • 3220
    233281466 Elastic Flang Nut M8
    Elastic Flang Nut M8
  • 4000
    503191765 Link Rod
    Link Rod
  • 4030
    503190643 Axle Bar (Long)
    Axle Bar (Long)
  • 4060
    503192494 Washer
    Washer
  • 4070
    503193372 Screw M8 X 90
    Screw M8 X 90
  • 4080
    233281466 Elastic Flang Nut M8
    Elastic Flang Nut M8
  • 4090
    503190643 Axle Bar (Long)
    Axle Bar (Long)
  • 4100
    503192494 Washer
    Washer
  • 4120
    503193372 Screw M8 X 90
    Screw M8 X 90
  • 4130
    233281466 Elastic Flang Nut M8
    Elastic Flang Nut M8
  • 5010
    207005044 Hex. Screw M10 X 50
    Hex. Screw M10 X 50
  • 5020
    233601466 Elastic Locking Nut M10
    Elastic Locking Nut M10
  • 5570
    414936000 Bushing
    Bushing
  • 5590
    207684044 Hex. Flanged Screw M8 X 40
    Hex. Flanged Screw M8 X 40
  • 5600
    233281466 Elastic Flang Nut M8
    Elastic Flang Nut M8
  • 7000
    503192771 Black - Wheel Cap
    Black - Wheel Cap
