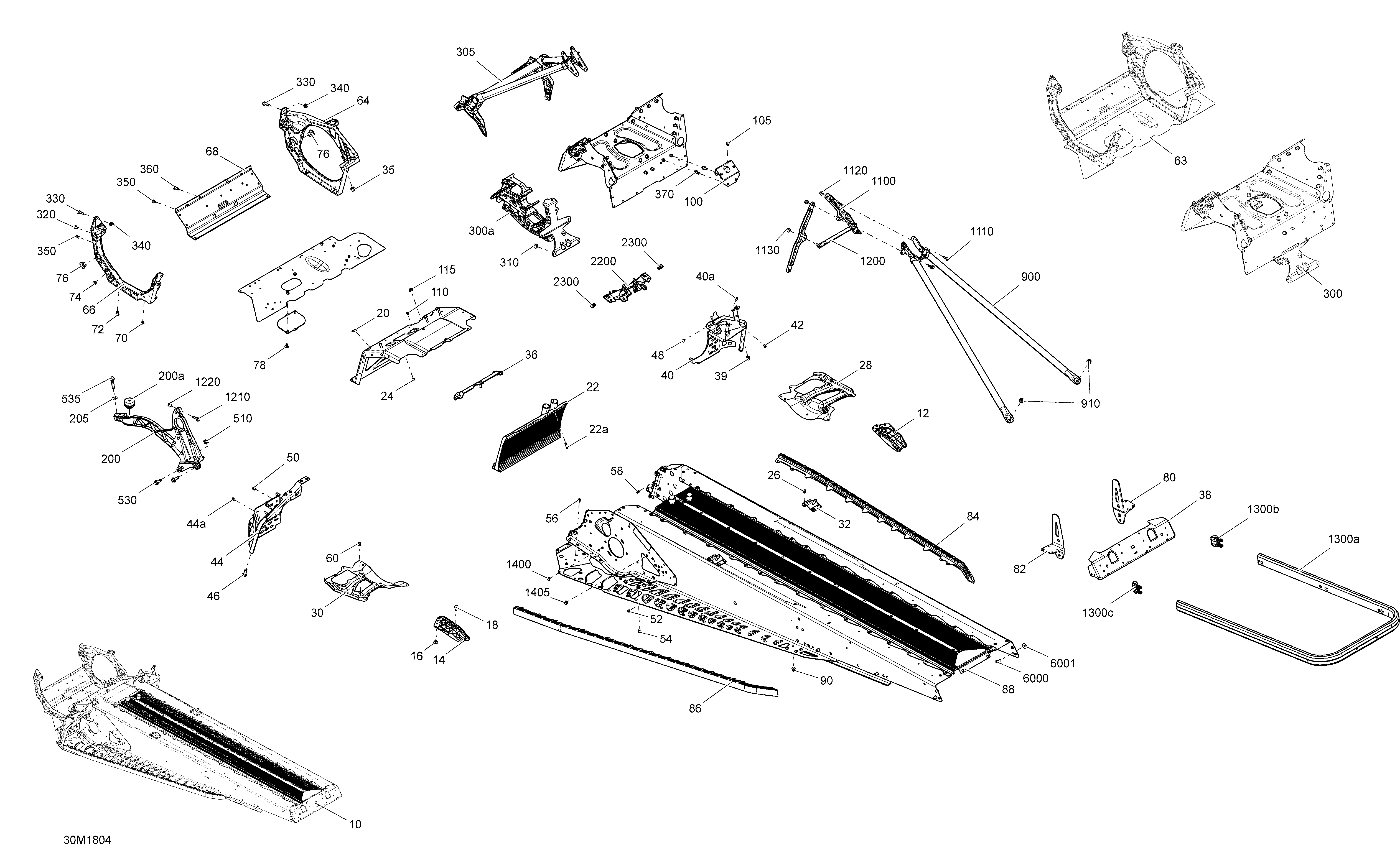

09- Frame Expedition - 600 ACE для BRP Ski-Doo 2- EXPEDITION SPORT 600 ACE - 2018

  • №
    Артикул
    Название
  • 10
    415130101 Frame Ass'y 154
    Frame Ass'y 154
  • 12
    518325782 RH Deflector
    RH Deflector
  • 14
    518325783 LH Deflector
    LH Deflector
  • 16
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 18
    207561244 Hex. Flanged Screw M6 X 12, Scotch Grip
    Hex. Flanged Screw M6 X 12, Scotch Grip
  • 20
    518325560 Adhesive Patch
    Adhesive Patch
  • 22
    518327907 Front Radiator Ass'y
    Front Radiator Ass'y
  • 22a
    250300027 Clinch Stud M6 X 20
    Clinch Stud M6 X 20
  • 24
    293150203 Rivet AVIBULB 3/16
    Rivet AVIBULB 3/16
  • 26
    293150174 Hemlock Rivet, 6.4 mm
    Hemlock Rivet, 6.4 mm
  • 28
    518326937 RH Reinforcement
    RH Reinforcement
  • 30
    518326938 LH Reinforcement
    LH Reinforcement
  • 32
    518325973 RH Rear Base
    RH Rear Base
  • 32
    518325974 LH Rear Base
    LH Rear Base
  • 35
    293450275 Insert
    Insert
  • 36
    518326656 Seal
    Seal
  • 38
    518327105 Rear Cap
    Rear Cap
  • 39
    293450275 Insert
    Insert
  • 40
    518328942 RH Stirup
    RH Stirup
  • 40a
    390909200 Avex Rivet
    Avex Rivet
  • 42
    293450268 Insert
    Insert
  • 44
    518328528 LH Stirup
    LH Stirup
  • 44a
    390909200 Avex Rivet
    Avex Rivet
  • 46
    250000752 Torx Screw M8 X 25, Scotch Grip
    Torx Screw M8 X 25, Scotch Grip
  • 48
    293730042 Full Moon Dart 5 mm
    Full Moon Dart 5 mm
  • 50
    293450268 Insert
    Insert
  • 52
    293150203 Rivet AVIBULB 3/16
    Rivet AVIBULB 3/16
  • 54
    390909100 Avex Rivet
    Avex Rivet
  • 56
    293150144 Stavex Rivet
    Stavex Rivet
  • 58
    293150146 Henrob Rivet
    Henrob Rivet
  • 60
    293150119 Hemlock Rivet, 6.5 mm
    Hemlock Rivet, 6.5 mm
  • 63
    518328078 'E'' Module
    'E'' Module
  • 64
    518326328 RH Side Member
    RH Side Member
  • 66
    518326330 LH Side Member
    LH Side Member
  • 68
    518326198 Front Member
    Front Member
  • 70
    293150144 Stavex Rivet
    Stavex Rivet
  • 72
    293150120 Hemlock Rivet 6.5 mm
    Hemlock Rivet 6.5 mm
  • 74
    293150119 Hemlock Rivet, 6.5 mm
    Hemlock Rivet, 6.5 mm
  • 76
    505073317 Leg Cushion
    Leg Cushion
  • 78
    250000767 Torx Truss Screw M6 X 12
    Torx Truss Screw M6 X 12
  • 80
    518327605 RH Suspension Bracket
    RH Suspension Bracket
  • 82
    518327606 LH Suspension Bracket
    LH Suspension Bracket
  • 84
    518328098 RH Roller
    RH Roller
  • 86
    518328099 LH Roller
    LH Roller
  • 88
    518326692 Rear Radiator Ass'y, 154''
    Rear Radiator Ass'y, 154''
  • 90
    293150147 Hemlock Rivet
    Hemlock Rivet
  • 100
    518326178 Engine Support
    Engine Support
  • 105
    293150174 Hemlock Rivet, 6.4 mm
    Hemlock Rivet, 6.4 mm
  • 110
    390402400 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 115
    233161414 Hex. Flanged Nut M6
    Hex. Flanged Nut M6
  • 200
    518327535 Brace Ass'y. Includes 200 to 200a
    Brace Ass'y. Includes 200 to 200a
  • 200a
    512060295 Rubber Mount
    Rubber Mount
  • 205
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 300
    518328320 Cross Member S Module
    Cross Member S Module
  • 300a
    518327487 Front Suspension Support
    Front Suspension Support
  • 305
    518327565 Front Member
    Front Member
  • 310
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 320
    250000822 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 330
    207662544 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 340
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 350
    293150191 Monobolt Rivet, 4.8 mm
    Monobolt Rivet, 4.8 mm
  • 360
    293150182 Monobolt Rivet 6.4
    Monobolt Rivet 6.4
  • 370
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 510
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 530
    250000351 Hex. Flanged Screw M8 X 25, Nylon
    Hex. Flanged Screw M8 X 25, Nylon
  • 535
    207584034 Hex. Flanged Screw, Scotch Grip
    Hex. Flanged Screw, Scotch Grip
  • 900
    518326559 Rear Member
    Rear Member
  • 910
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 1100
    518326848 Upper Column Support
    Upper Column Support
  • 1110
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 1120
    233261416 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 1130
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 1200
    518326355 Center Column Support. Includes 1200 to 1200a
    Center Column Support. Includes 1200 to 1200a
  • 1210
    207662544 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 1220
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 1300a
    518325579 Clear Rear Bumper
    Clear Rear Bumper
  • 1300b
    520000711 Full Moon RH Cap
    Full Moon RH Cap
  • 1300c
    520000712 Full Moon LH Cap
    Full Moon LH Cap
  • 1400
    293730041 Full Moon Dart 8 mm
    Full Moon Dart 8 mm
  • 1405
    293730059 Full Moon Dart 10 mm
    Full Moon Dart 10 mm
  • 2200
    518327145 Sub A Support
    Sub A Support
  • 2300
    250000079 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 6000
    250000779 Torx Screw M6 X 18, Scotch Grip
    Torx Screw M6 X 18, Scotch Grip
  • 6001
    224061201 Flat Washer
    Flat Washer
