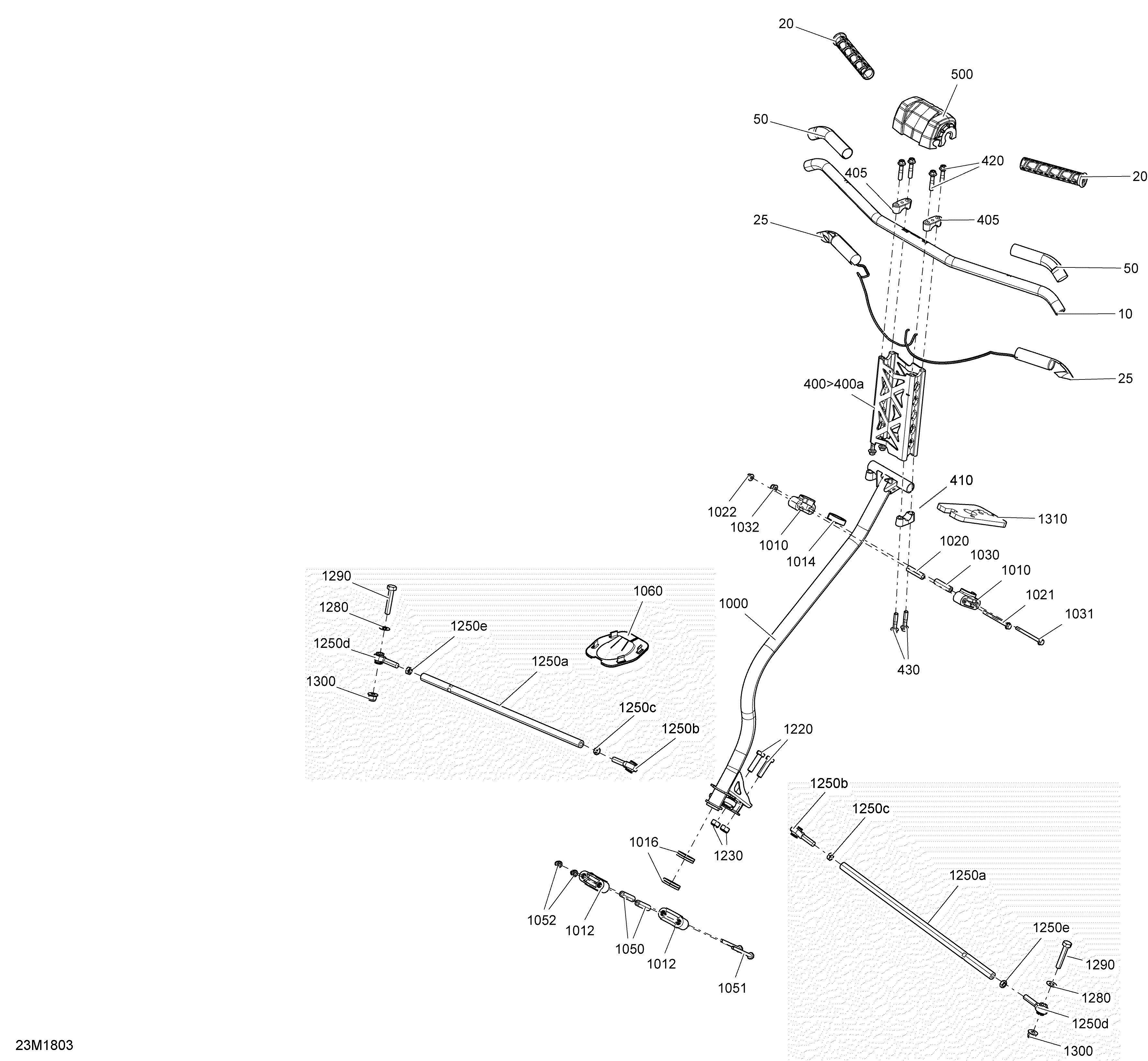

07- Steering Expedition - 4 Strokes для BRP Ski-Doo 2- EXPEDITION SPORT 600 ACE - 2018
-
№АртикулНазвание
-
10506152709 Clear Handle BarClear Handle Bar
-
20506152560 Grip 148mmGrip 148mm
-
25506152758 Heating Element 32 WattHeating Element 32 Watt
-
35515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
50506152548 InsulantInsulant
-
400860200820 Riser Kit. Includes 400 to 400aRiser Kit. Includes 400 to 400a
-
400a250000352 Hex. Flange Screw M8 X 40Hex. Flange Screw M8 X 40
-
405506152750 Steering SupportSteering Support
-
410506152751 Steering SupportSteering Support
-
420250000852 Hexagonal Flange Screw M8 X 60Hexagonal Flange Screw M8 X 60
-
430250000852 Hexagonal Flange Screw M8 X 60Hexagonal Flange Screw M8 X 60
-
500506152541 Steering PadSteering Pad
-
1000506152964 Steering ColumnSteering Column
-
1010506152508 Upper Half-HousingUpper Half-Housing
-
1012506152217 Lower Half-HousingLower Half-Housing
-
1014506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
1016506152518 Lower Vibration RingLower Vibration Ring
-
1020506152297 Housing BushingHousing Bushing
-
1021207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
1022233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
1030506152297 Housing BushingHousing Bushing
-
1031207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
1032233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
1040506152297 Housing BushingHousing Bushing
-
1041207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
1042233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
1050506152297 Housing BushingHousing Bushing
-
1051207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
1052233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
1060506152163 PlatePlate
-
1220207004034 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
1230233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
1250a506152498 Tie-RodTie-Rod
-
1250b506152081 Inner Ball JointInner Ball Joint
-
1250c250100016 Hex. Jam Nut M10Hex. Jam Nut M10
-
1250d506152019 Outer Ball JointOuter Ball Joint
-
1250e732610010 Hex. Jam Nut M10Hex. Jam Nut M10
-
1280506152582 WasherWasher
-
1290207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
1300233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
