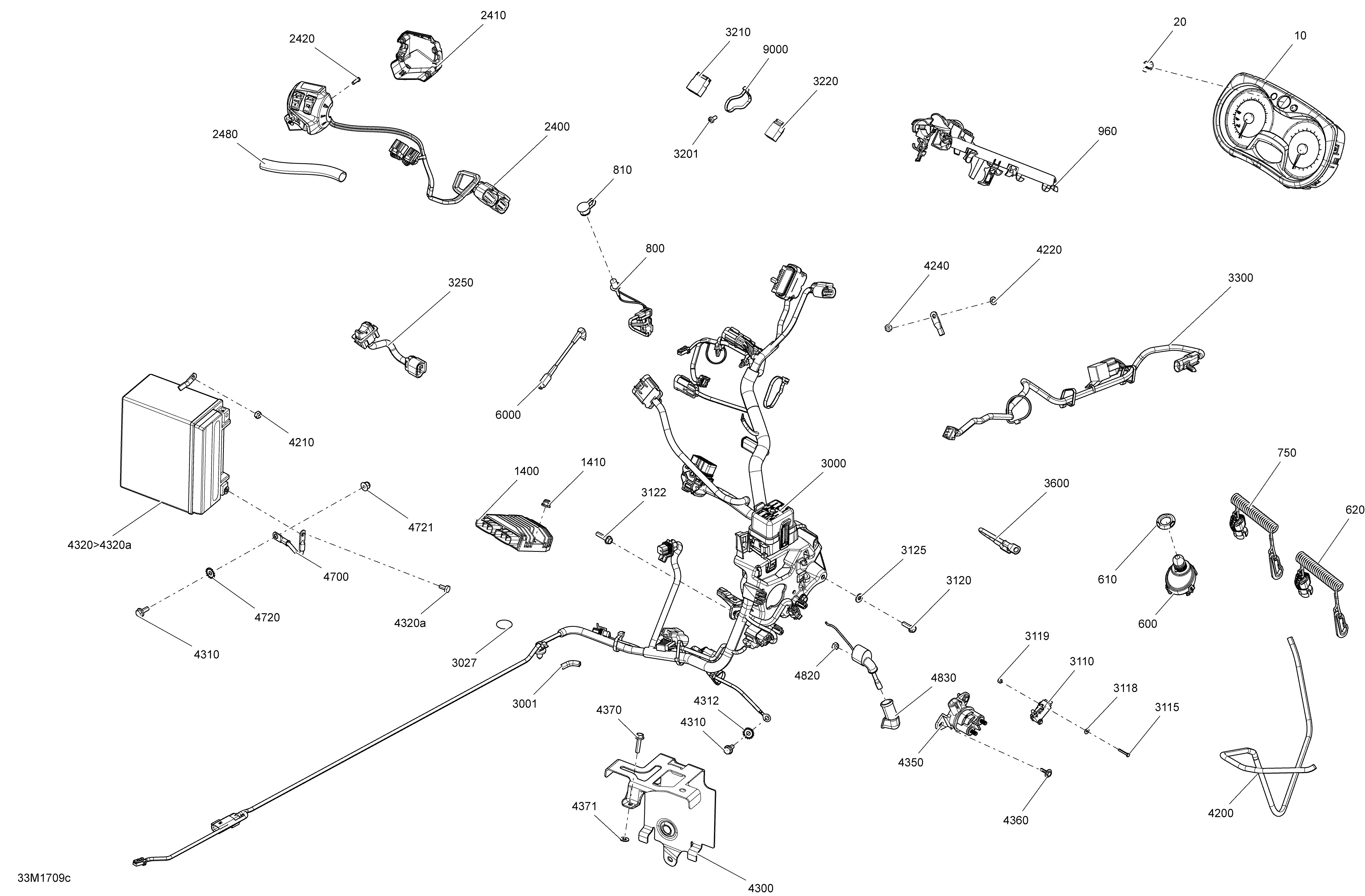

10- Electrical System - 600 ACE для BRP Ski-Doo EXPEDITION - 4-STROKE - SPORT - 2017
-
№АртикулНазвание
-
10515177911 IndicatorIndicator
-
20516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
600515178225 DESS SwitchDESS Switch
-
610278002963 Safety NutSafety Nut
-
620515178286 Grey - RF Key Ass'yGrey - RF Key Ass'y
-
750515178287 Green - RF Key Ass'yGreen - RF Key Ass'y
-
800515177837 Visor HarnessVisor Harness
-
810572103300 CapCap
-
960515177134 Connector PlateConnector Plate
-
1400710001103 Voltage RegulatorVoltage Regulator
-
1410233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
2400515178198 LH HousingLH Housing
-
2410515177147 Housing PlateHousing Plate
-
2420250000671 Torx ScrewTorx Screw
-
2480415129879 Protector TubeProtector Tube
-
3000515177988 Main HarnessMain Harness
-
3001271001530 TrimTrim
-
3027518325560 Adhesive PatchAdhesive Patch
-
3110515177460 Switch Ass'ySwitch Ass'y
-
3115207132044 Hex Screw M3 X 20Hex Screw M3 X 20
-
3118234032600 Flat Washer M3, StainlessFlat Washer M3, Stainless
-
3119232531423 Elastic Stop Nut M3Elastic Stop Nut M3
-
3120210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3122210262550 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
3125250200039 Flat WasherFlat Washer
-
3201250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
3210515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
3220515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
3250515177394 SwitchSwitch
-
3300515177646 Fan HarnessFan Harness
-
3600515177014 Ground WireGround Wire
-
4200515177427 Battery WireBattery Wire
-
4210232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4220234061410 Flat Washer 6 mmFlat Washer 6 mm
-
4240232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4300515177348 Battery SupportBattery Support
-
4310207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
4312250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
4320>4320a415129898 Lead Battery 18 Amperes. Includes 4320 to 4320aLead Battery 18 Amperes. Includes 4320 to 4320a
-
4320a250000282 Battery Bolt KitBattery Bolt Kit
-
4350278003012 Starter RelayStarter Relay
-
4360250000725 Screw M4 X 16Screw M4 X 16
-
4370250000793 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
4371224061121 Flat WasherFlat Washer
-
4700515176358 Ground WireGround Wire
-
4720250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
4721233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
4820232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4830710000495 Protector CapProtector Cap
-
6000515175851 ExtensionExtension
-
9000293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
9000414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9000293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
9000293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
9000293750009 Tie-Rap 173 mmTie-Rap 173 mm
