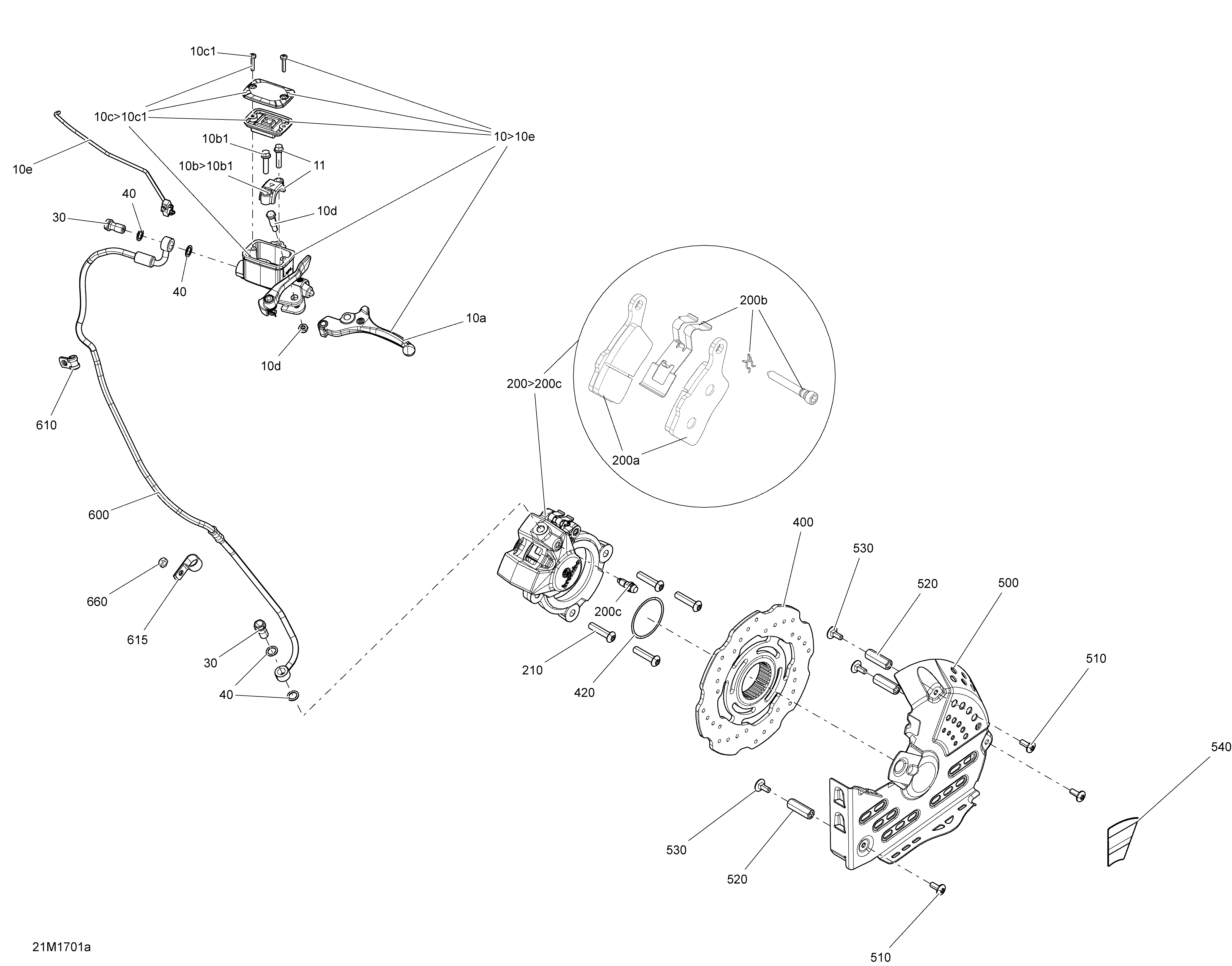

06- Brakes - All Models для BRP Ski-Doo EXPEDITION - 4-STROKE - SPORT - 2017
-
№АртикулНазвание
-
10>10e507032598 Master Cylinder Ass'y. Engine 550F. Includes 10 to 10eMaster Cylinder Ass'y. Engine 550F. Includes 10 to 10e
-
10>10e507032596 Master Cylinder Ass'y. Except Engine 550F. Includes 10 to 10eMaster Cylinder Ass'y. Except Engine 550F. Includes 10 to 10e
-
10a507032476 LeverLever
-
10b>10b1507032477 Clamp And Screw Kit. Includes 10b to 10b1Clamp And Screw Kit. Includes 10b to 10b1
-
10b1250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
10c>10c1507032478 Master Cylinder Reservoir Ass'y. Includes 10c to 10c1Master Cylinder Reservoir Ass'y. Includes 10c to 10c1
-
10c1415129356 Screw M4 X 20Screw M4 X 20
-
10d415030000 Pin Ass'yPin Ass'y
-
10e507032592 Microswitch. Except Engine 550FMicroswitch. Except Engine 550F
-
10e507032593 Microswitch. Engine 550FMicroswitch. Engine 550F
-
11719000049 Clamps KitClamps Kit
-
12250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
30507032551 Banjo BoltBanjo Bolt
-
40705600310 Copper WasherCopper Washer
-
200>200c507032602 Brake caliper assembly. Includes 200 to 200cBrake caliper assembly. Includes 200 to 200c
-
200a507032473 Brake Pads KitBrake Pads Kit
-
200b507032474 Pin, Clip & Spring KitPin, Clip & Spring Kit
-
200c507032475 BleederBleeder
-
210250000764 Hex. Butoon Head Screw M8 X 35Hex. Butoon Head Screw M8 X 35
-
400507032487 DiskDisk
-
420293300134 O-RingO-Ring
-
500507032446 Aluminum Disk ProtectorAluminum Disk Protector
-
510250000365 Torx Screw M6 X 16Torx Screw M6 X 16
-
520507032497 Threaded TubeThreaded Tube
-
530207761644 Carriage Bolt M6 X 16Carriage Bolt M6 X 16
-
600507032528 HoseHose
-
610293650256 ClampClamp
-
615518321570 Open ClampOpen Clamp
-
660232561414 Elastic Stop Nut M6Elastic Stop Nut M6
