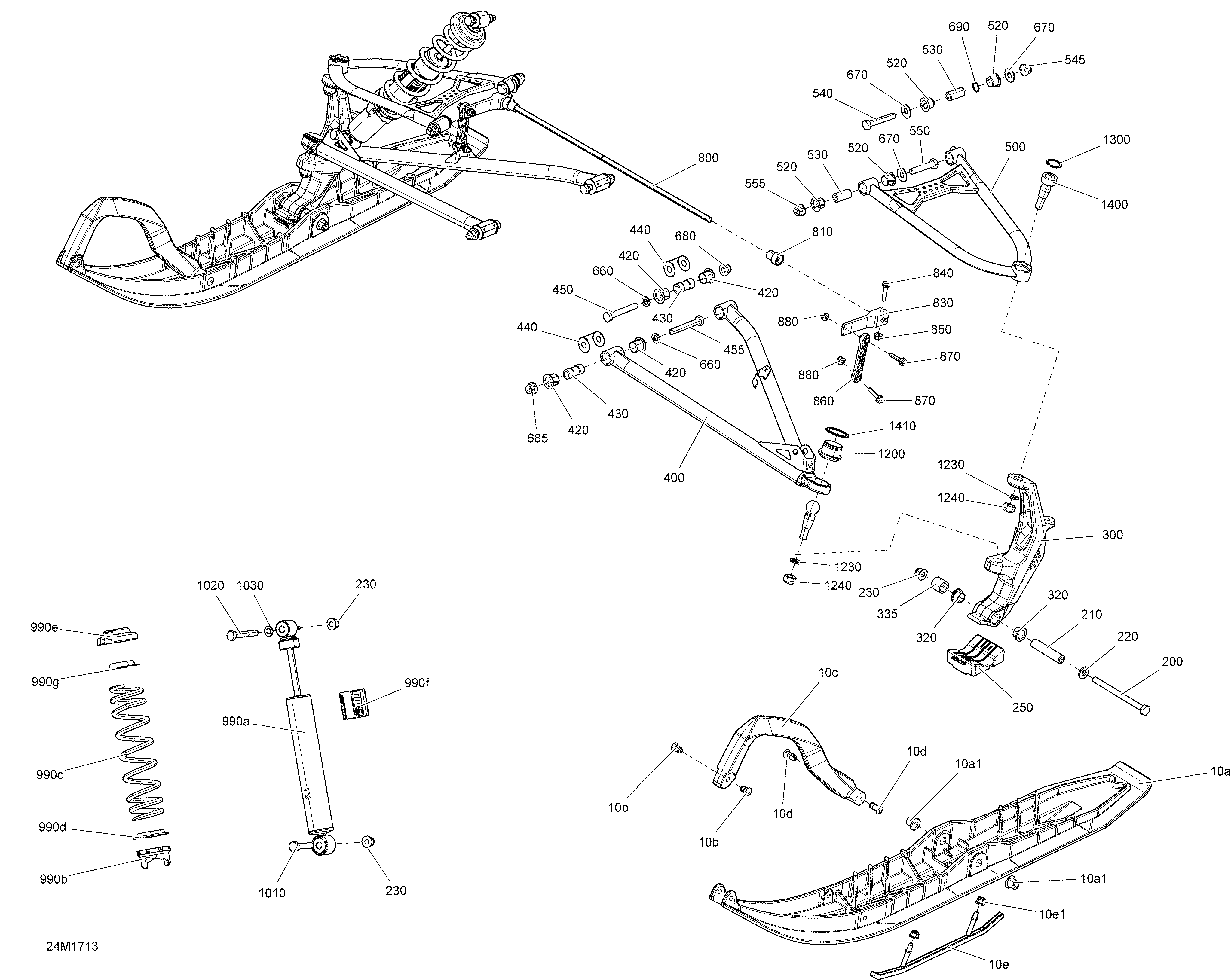

07- Front Suspension And Ski - All Models для BRP Ski-Doo EXPEDITION - 4-STROKE - SPORT - 2017
-
№АртикулНазвание
-
10a>10a1505073227 Black DS 2 Ski. Includes 10a to 10a1Black DS 2 Ski. Includes 10a to 10a1
-
10a1505071781 Ski BushingSki Bushing
-
10b505071812 RetainerRetainer
-
10c505072976 Black HandleBlack Handle
-
10d505072133 RetainerRetainer
-
10e>10e1860201044 Carbide Runner Kit. Includes 10e to 10e1Carbide Runner Kit. Includes 10e to 10e1
-
10e1233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
200250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
210506133300 SpacerSpacer
-
220503192496 WasherWasher
-
230233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
250505072594 Ski StopperSki Stopper
-
300505073559 White LH Ski LegWhite LH Ski Leg
-
300505073560 White RH Ski LegWhite RH Ski Leg
-
320505072690 Leg BushingLeg Bushing
-
400505072497 Black RH Lower ArmBlack RH Lower Arm
-
400505072498 Black LH Lower ArmBlack LH Lower Arm
-
420505072208 BushingBushing
-
430505072209 BushingBushing
-
440505072634 Wear PlateWear Plate
-
450250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
455250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
500505073468 LH Upper Arm 39''LH Upper Arm 39''
-
500505073469 RH Upper Arm 39''RH Upper Arm 39''
-
520505072250 BushingBushing
-
530505072143 BushingBushing
-
540250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
545250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
550250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
555250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
660503189564 WasherWasher
-
670505072392 WasherWasher
-
680250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
685250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
690505072448 O-RingO-Ring
-
800505072602 StabilisatorStabilisator
-
810505072064 BushingBushing
-
830505072394 Stabilisator LeverStabilisator Lever
-
840207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
850233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
860505072204 Double Ball Joint LinkDouble Ball Joint Link
-
870207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
880233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
990a505073139 Front Shock. Model EuropeFront Shock. Model Europe
-
990a505073181 Front Shock. Except Model EuropeFront Shock. Except Model Europe
-
990b505073625 Adjustment CamAdjustment Cam
-
990c505072897 Full Moon Spring. Engine 600 ACEFull Moon Spring. Engine 600 ACE
-
990c505073521 Full Moon Spring. Engine 900 ACE, Model North AmericaFull Moon Spring. Engine 900 ACE, Model North America
-
990c505072518 Full Moon Spring. Engine 900 ACE, Model EuropeFull Moon Spring. Engine 900 ACE, Model Europe
-
990d503187500 Spring GuideSpring Guide
-
990e706200881 Spring StopperSpring Stopper
-
990f516005533 Shock Decal, HPG. Engine 900 ACE, Model EuropeShock Decal, HPG. Engine 900 ACE, Model Europe
-
990f516005535 Shock Decal, Mc. Except Engine 900 ACE, Model EuropeShock Decal, Mc. Except Engine 900 ACE, Model Europe
-
990g706200785 CapCap
-
1010207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
1020207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
1030503189564 WasherWasher
-
1200505073636 Ball JointBall Joint
-
1230503192491 WasherWasher
-
1240232521464 Hex Elastic Nut M12Hex Elastic Nut M12
-
1300293370070 CirclipCirclip
-
1400505072913 Upper Ball JointUpper Ball Joint
-
1410293370035 CirclipCirclip
