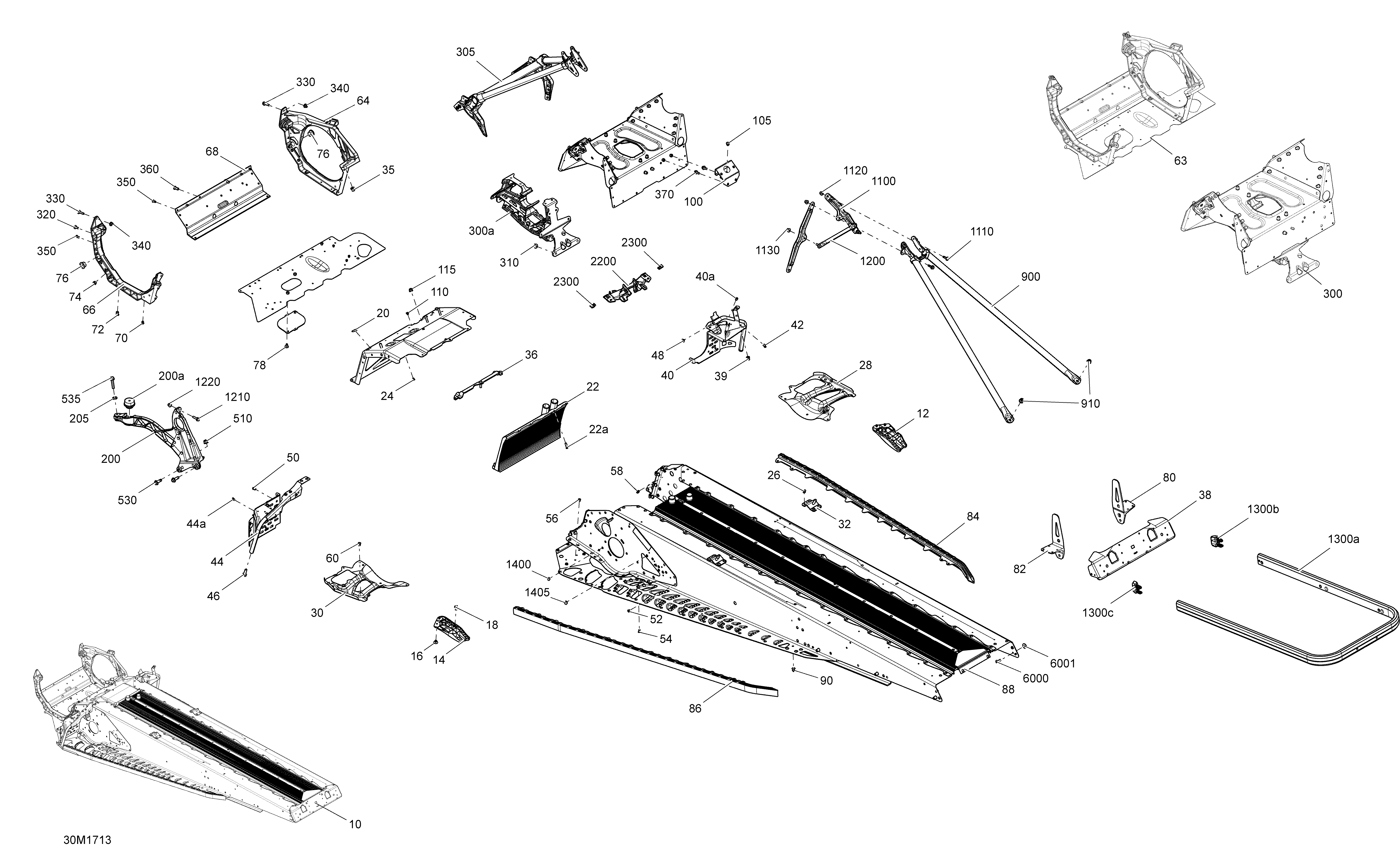

09- Frame - All Models для BRP Ski-Doo EXPEDITION - 4-STROKE - SPORT - 2017
-
№АртикулНазвание
-
10415130101 Frame Ass'y 154. Includes 10 to 90Frame Ass'y 154. Includes 10 to 90
-
12518325782 RH DeflectorRH Deflector
-
14518325783 LH DeflectorLH Deflector
-
16293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
18207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
20518325560 Adhesive PatchAdhesive Patch
-
22518327907 Front Radiator Ass'y. Includes 22 to 22aFront Radiator Ass'y. Includes 22 to 22a
-
22a250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
24293150203 Rivet AVIBULB 3/16Rivet AVIBULB 3/16
-
26293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
28518326937 RH ReinforcementRH Reinforcement
-
30518326938 LH ReinforcementLH Reinforcement
-
32518325973 RH Rear BaseRH Rear Base
-
32518325974 LH Rear BaseLH Rear Base
-
35293450275 InsertInsert
-
36518326656 SealSeal
-
38518327105 Rear CapRear Cap
-
39293450275 InsertInsert
-
40518328942 RH Stirup. Includes 40 to 40aRH Stirup. Includes 40 to 40a
-
40a390909200 Avex RivetAvex Rivet
-
42293450268 InsertInsert
-
44518328528 LH Stirup. Includes 44 to 44aLH Stirup. Includes 44 to 44a
-
44a390909200 Avex RivetAvex Rivet
-
46250000752 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
48293730042 Full Moon Dart 5 mmFull Moon Dart 5 mm
-
50293450268 InsertInsert
-
52293150203 Rivet AVIBULB 3/16Rivet AVIBULB 3/16
-
54390909100 Avex RivetAvex Rivet
-
56293150144 Stavex RivetStavex Rivet
-
58293150146 Henrob RivetHenrob Rivet
-
60293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
63518328078 'E'' Module. Includes 63 to 78'E'' Module. Includes 63 to 78
-
64518326328 RH Side MemberRH Side Member
-
66518326330 LH Side MemberLH Side Member
-
68518326198 Front MemberFront Member
-
70293150144 Stavex RivetStavex Rivet
-
72293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
74293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
76505073317 Leg CushionLeg Cushion
-
78250000767 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
80518327605 RH Suspension BracketRH Suspension Bracket
-
82518327606 LH Suspension BracketLH Suspension Bracket
-
84518328098 RH RollerRH Roller
-
86518328099 LH RollerLH Roller
-
88518326692 Rear Radiator Ass'y, 154''. Includes 70Rear Radiator Ass'y, 154''. Includes 70
-
90293150147 Hemlock RivetHemlock Rivet
-
100518326178 Engine SupportEngine Support
-
105293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
110390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
115233161414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
200518327535 Brace Ass'yBrace Ass'y
-
200a512060295 Rubber MountRubber Mount
-
205234281474 Conical Spring Washer M8Conical Spring Washer M8
-
300518328320 Cross Member S ModuleCross Member S Module
-
300a518327487 Front Suspension SupportFront Suspension Support
-
305518327565 Front MemberFront Member
-
310233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
320250000822 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
330207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
340233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
350293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
360293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
370207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
510233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
530250000351 Hex. Flanged Screw M8 X 25, NylonHex. Flanged Screw M8 X 25, Nylon
-
535207584034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
900518326559 Rear MemberRear Member
-
910233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
1100518326848 Upper Column SupportUpper Column Support
-
1110207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1120233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
1130233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1200518326355 Center Column SupportCenter Column Support
-
1210207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
1220233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1300a518325579 Clear Rear BumperClear Rear Bumper
-
1300b520000711 Full Moon RH CapFull Moon RH Cap
-
1300c520000712 Full Moon LH CapFull Moon LH Cap
-
1400293730041 Full Moon Dart 8 mmFull Moon Dart 8 mm
-
1405293730059 Full Moon Dart 10 mmFull Moon Dart 10 mm
-
2200518327145 Sub A SupportSub A Support
-
2300250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
6000250000779 Torx Screw M6 X 18, Scotch GripTorx Screw M6 X 18, Scotch Grip
-
6001224061201 Flat WasherFlat Washer
