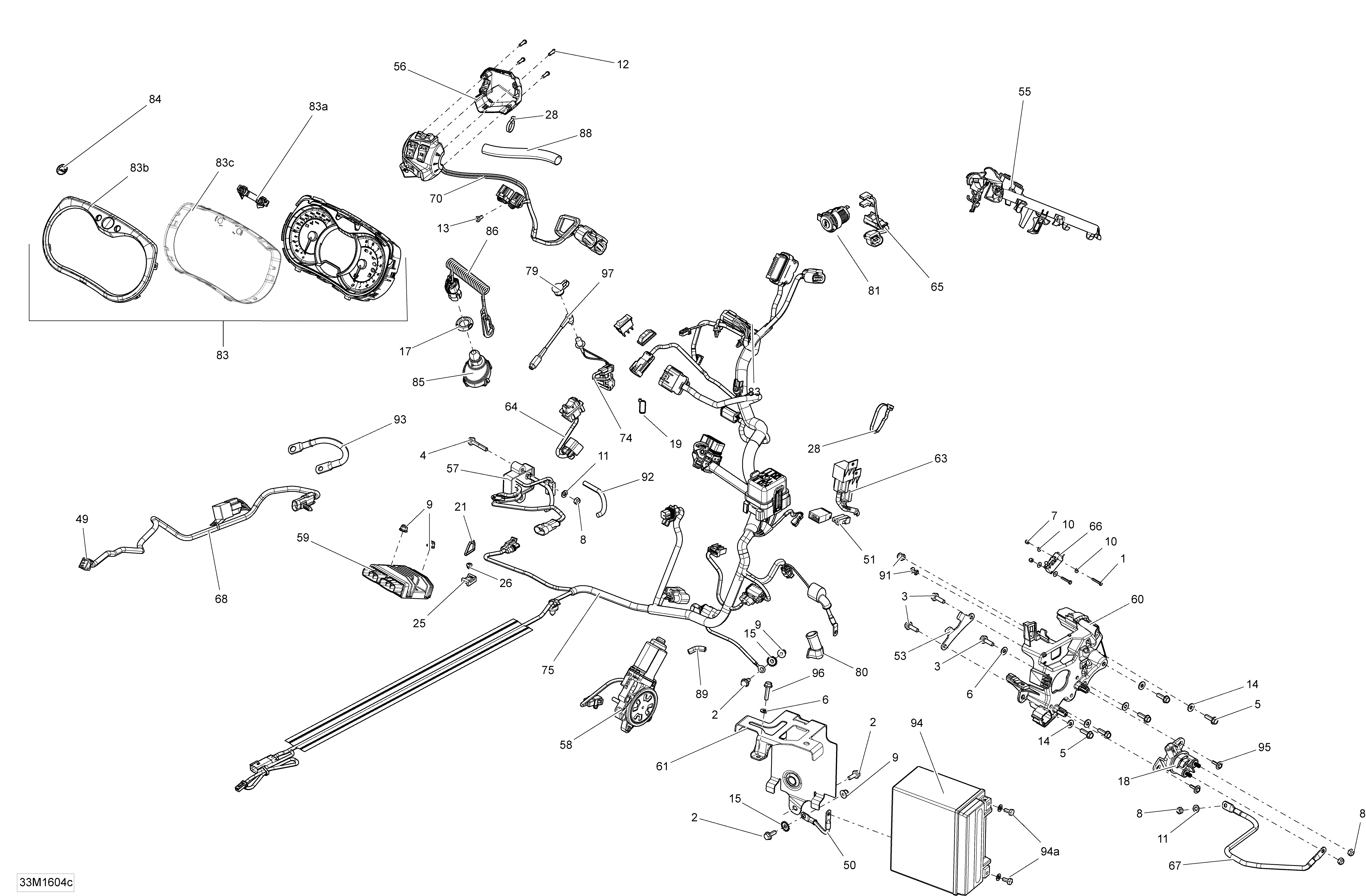

10- Electrical System - 1200 4-TEC, Package Enduro для BRP Ski-Doo RENEGADE - 4-STROKE - 2016
-
№АртикулНазвание
-
1207132044 Hex Screw M3 X 20Hex Screw M3 X 20
-
2207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
3207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
5210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
6224061121 Flat WasherFlat Washer
-
7232531423 Elastic Stop Nut M3Elastic Stop Nut M3
-
8232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
9233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
10234032600 Flat Washer M3, StainlessFlat Washer M3, Stainless
-
11234061410 Flat Washer 6 mmFlat Washer 6 mm
-
12250000671 Torx ScrewTorx Screw
-
13250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
14250200039 Flat WasherFlat Washer
-
15250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
17278002963 Safety NutSafety Nut
-
18278003012 Starter RelayStarter Relay
-
19293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
21293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
25515176795 ClipClip
-
26390909200 Avex RivetAvex Rivet
-
28414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
46510004413 Rocker SwitchRocker Switch
-
47510004414 Switch ProtectorSwitch Protector
-
48515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
49515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
50515176358 Ground WireGround Wire
-
51515176550 Female Terminal HousingFemale Terminal Housing
-
53515177039 PlatePlate
-
55515177134 Connector PlateConnector Plate
-
56515177147 Housing PlateHousing Plate
-
57515177234 Compressor ModuleCompressor Module
-
58515177273 Electrical Motor Ass'yElectrical Motor Ass'y
-
59515177325 Voltage RegulatorVoltage Regulator
-
60515177347 PlatePlate
-
61515177348 Battery SupportBattery Support
-
63515177350 Reverse Harness. See Electrical Harness, ReverseReverse Harness. See Electrical Harness, Reverse
-
64515177394 SwitchSwitch
-
65515177400 12 Volts Outlet Harness12 Volts Outlet Harness
-
66515177460 Switch Ass'ySwitch Ass'y
-
67515177535 Battery WireBattery Wire
-
68515177646 Fan HarnessFan Harness
-
70515178197 HousingHousing
-
74515177837 Visor HarnessVisor Harness
-
75515177993 Main Harness. See Electrical Harness, MainMain Harness. See Electrical Harness, Main
-
79572103300 CapCap
-
80710000495 Protector CapProtector Cap
-
81710001248 Outlet DCOutlet DC
-
83515177913 Indicator. Includes 83a to 83c,84Indicator. Includes 83a to 83c,84
-
83a415129355 Speedometer ButtonSpeedometer Button
-
83c415129349 LensLens
-
83b415129348 Gauge RingGauge Ring
-
84516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
85515178049 DESS SwitchDESS Switch
-
86515178038 KeyKey
-
86860201162 KeyKey
-
88415129879 Protector TubeProtector Tube
-
89271001530 TrimTrim
-
91515177929 RivetRivet
-
92515175442 Tubing 6 mmTubing 6 mm
-
93515177014 Ground WireGround Wire
-
94415129898 Lead Battery 18 AmperesLead Battery 18 Amperes
-
94a250000282 Battery Bolt KitBattery Bolt Kit
-
95250000725 Screw M4 X 16Screw M4 X 16
-
96250000793 SCREW-HEX.FLANGE DIN.6921 NYLON PATSCREW-HEX.FLANGE DIN.6921 NYLON PAT
-
97515175851 ExtensionExtension
