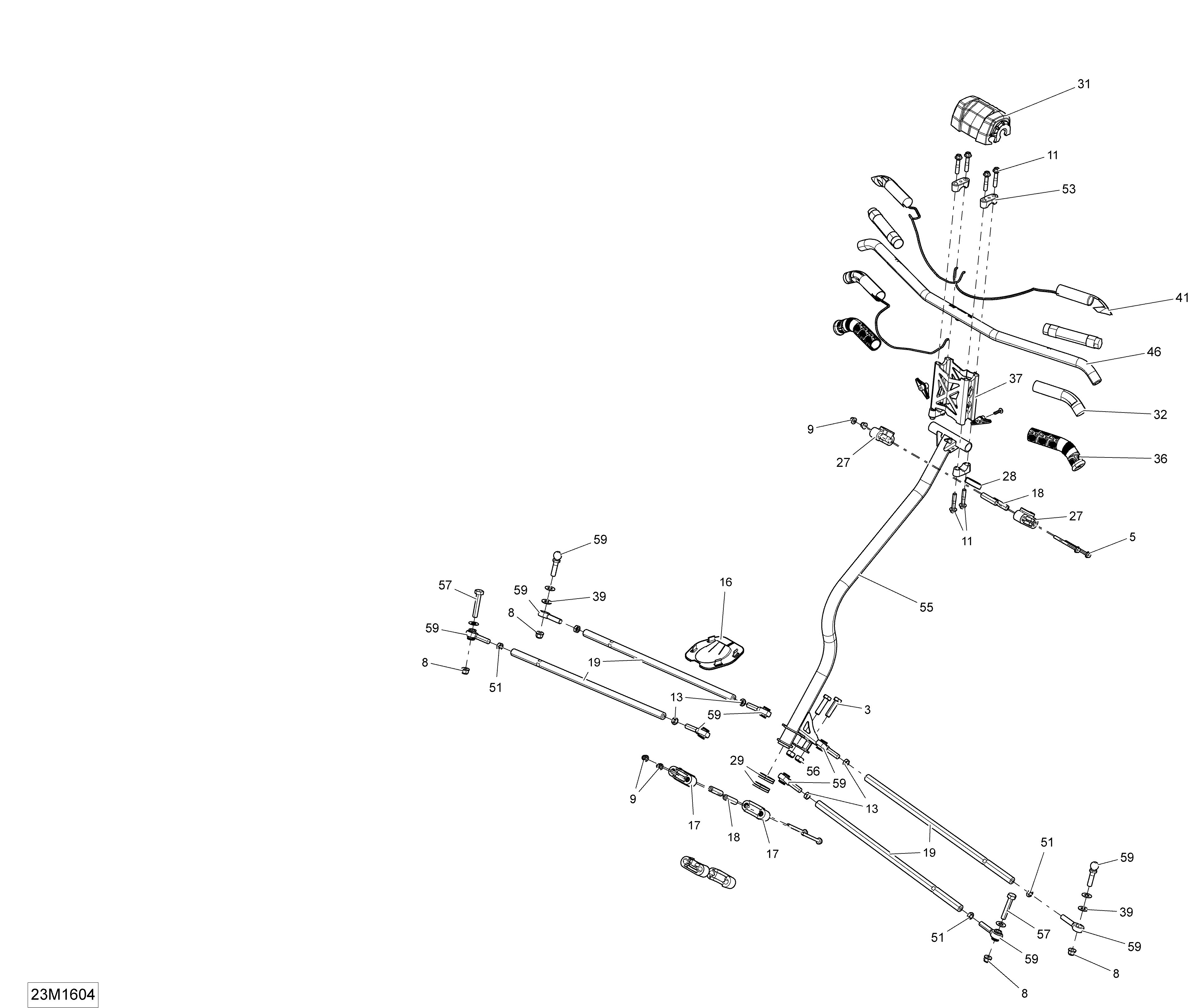

07- Steering - All Models для BRP Ski-Doo RENEGADE - 4-STROKE - 2016
-
№АртикулНазвание
-
3207004034 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
5207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
8233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
9233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
11250000352 Hex. Flange Screw M8 X 40Hex. Flange Screw M8 X 40
-
13250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
16506152163 PlatePlate
-
17506152217 Lower Half-HousingLower Half-Housing
-
18506152297 Housing BushingHousing Bushing
-
19506152496 Tie-RodTie-Rod
-
27506152508 Upper Half-HousingUpper Half-Housing
-
28506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
29506152518 Lower Vibration RingLower Vibration Ring
-
31506152541 Steering PadSteering Pad
-
32506152548 InsulantInsulant
-
36506152560 Grip 148mmGrip 148mm
-
37506152570 Black Handlebar Extension. Package Enduro, AdrenalineBlack Handlebar Extension. Package Enduro, Adrenaline
-
37506152571 Handlebar Extension (115). Package SportHandlebar Extension (115). Package Sport
-
37506152616 Black Handlebar Extension. Package XBlack Handlebar Extension. Package X
-
39506152582 WasherWasher
-
41506152665 Heating Element 32 WATT. Engine 600Heating Element 32 WATT. Engine 600
-
41506152676 Heating Element 32 WATT. Engine 600Heating Element 32 WATT. Engine 600
-
41506152758 Heating Element 32 Watt. LH Engine 900, 1200Heating Element 32 Watt. LH Engine 900, 1200
-
41506152764 Heated Film. RH Engine 900, 1200Heated Film. RH Engine 900, 1200
-
46506152709 Clear Handle BarClear Handle Bar
-
51732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
53506152750 Steering SupportSteering Support
-
53548873704 Steering SupportSteering Support
-
55506152846 Tube MainTube Main
-
56233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
57207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
59506152019 RH Thread Ball Joint. Package SportRH Thread Ball Joint. Package Sport
-
59506152081 LH Thread Ball JointLH Thread Ball Joint
-
59506152081 LH Thread Ball JointLH Thread Ball Joint
-
59506152684 RH Thread Ball Joint. Except Package SportRH Thread Ball Joint. Except Package Sport
