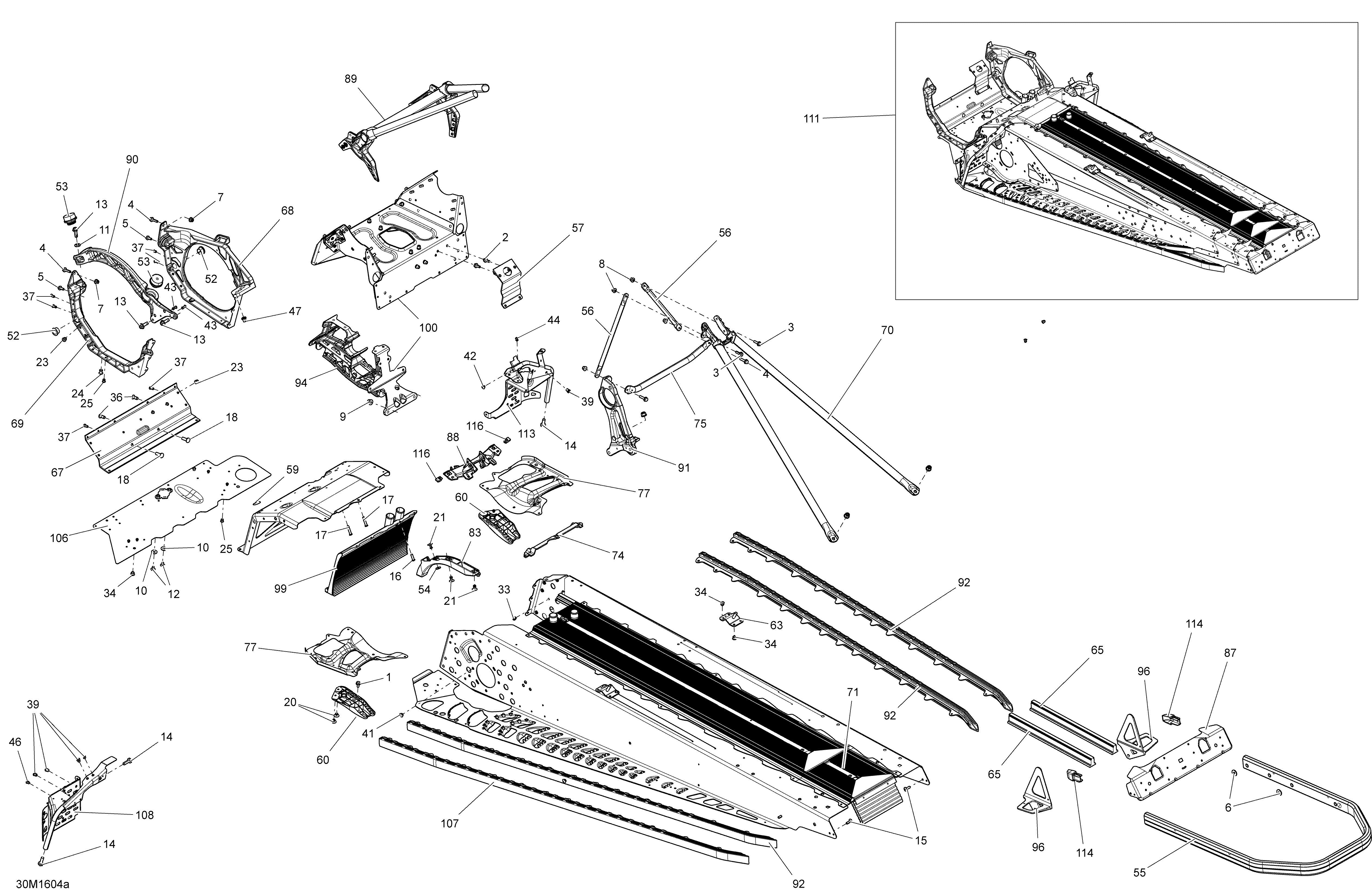

09- Frame - 1200 4-TEC для BRP Ski-Doo RENEGADE - 4-STROKE - 2016
-
№АртикулНазвание
-
1207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
2207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
3207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
5210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
6224061201 Flat Washer. Except Package EnduroFlat Washer. Except Package Enduro
-
7233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
8233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
9233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
10234062410 Flat Washer 6 mmFlat Washer 6 mm
-
11234281474 Conical Spring Washer M8Conical Spring Washer M8
-
12250000349 Torx Truss Screw M6 X 10Torx Truss Screw M6 X 10
-
13250000351 Hex. Flanged Screw M8 X 25, NylonHex. Flanged Screw M8 X 25, Nylon
-
14250000752 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
15250000779 Torx Screw M6 X 18, Scotch Grip. Except Package EnduroTorx Screw M6 X 18, Scotch Grip. Except Package Enduro
-
16250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
17250300031 Clinch Stud M6 X 30Clinch Stud M6 X 30
-
18250300038 Clinch StudClinch Stud
-
20293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
21293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
23293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
24293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
25293150144 Stavex RivetStavex Rivet
-
33293150146 Henrob RivetHenrob Rivet
-
34293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
36293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
37293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
39293450268 InsertInsert
-
41293730047 Black Dart 8 mmBlack Dart 8 mm
-
41293730053 Black Dart 5 mmBlack Dart 5 mm
-
41293730060 Black Dart 10 mmBlack Dart 10 mm
-
42293730042 Full Moon Dart 5 mmFull Moon Dart 5 mm
-
43390407200 Pop Rivet 3/16''Pop Rivet 3/16''
-
44390909100 Avex RivetAvex Rivet
-
44390909100 Avex RivetAvex Rivet
-
46390909200 Avex RivetAvex Rivet
-
47293450275 InsertInsert
-
52505073317 Leg CushionLeg Cushion
-
53512060295 Rubber MountRubber Mount
-
54517124300 WasherWasher
-
55518325481 Black Rear Bumper. North America ModelBlack Rear Bumper. North America Model
-
55518326414 Black Rear Bumper. Europe ModelBlack Rear Bumper. Europe Model
-
56518325114 Upper Column SupportUpper Column Support
-
57518325371 MAG Engine SupportMAG Engine Support
-
59518325560 Adhesive PatchAdhesive Patch
-
60518325782 RH DeflectorRH Deflector
-
60518325783 LH DeflectorLH Deflector
-
63518325973 RH Rear BaseRH Rear Base
-
63518325974 LH Rear BaseLH Rear Base
-
65860200267 Tunnel Protector KitTunnel Protector Kit
-
67518326198 Front MemberFront Member
-
68518326328 RH Side MemberRH Side Member
-
69518326330 LH Side MemberLH Side Member
-
70518326559 Rear MemberRear Member
-
71518326641 Rear Radiator Ass'y, 137''Rear Radiator Ass'y, 137''
-
74518326656 SealSeal
-
75518326657 Center Column SupportCenter Column Support
-
77518326937 RH ReinforcementRH Reinforcement
-
77518326938 LH ReinforcementLH Reinforcement
-
83518326973 Front ProtectorFront Protector
-
87518327105 Rear CapRear Cap
-
88518327145 Sub A SupportSub A Support
-
89518327565 Front MemberFront Member
-
90518327392 Brace Ass'yBrace Ass'y
-
91518327460 Pulley SupportPulley Support
-
92518327093 RH Roller. Package X, Adrenaline, EnduroRH Roller. Package X, Adrenaline, Enduro
-
92518327094 LH Roller. Package X, AdrenalineLH Roller. Package X, Adrenaline
-
94518327487 Front Suspension SupportFront Suspension Support
-
96518326954 RH Suspension BracketRH Suspension Bracket
-
96518326955 LH Suspension BracketLH Suspension Bracket
-
99518327907 Front Radiator Ass'yFront Radiator Ass'y
-
100518328320 Cross Member S ModuleCross Member S Module
-
106518328947 Module EModule E
-
107518328429 LH Roller. Package EnduroLH Roller. Package Enduro
-
108518328528 LH StirupLH Stirup
-
111415130020 Frame. Except Package EnduroFrame. Except Package Enduro
-
111415130023 Frame. Package EnduroFrame. Package Enduro
-
113518328942 RH StirupRH Stirup
-
114520000965 Black RH Cap. Europe ModelBlack RH Cap. Europe Model
-
114520000964 Black LH Cap. Europe ModelBlack LH Cap. Europe Model
-
114520000840 Black Cap. North America ModelBlack Cap. North America Model
-
116250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
