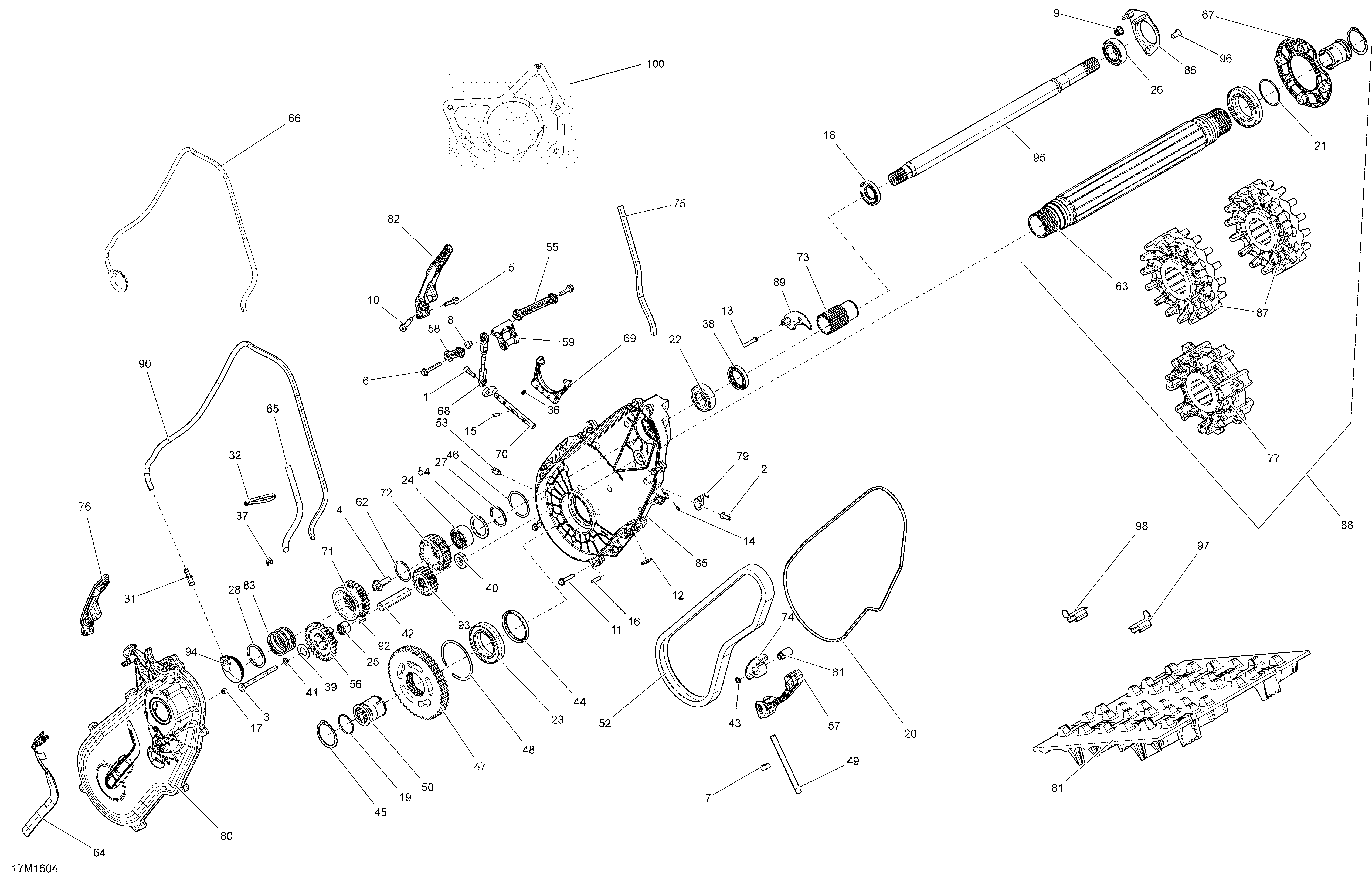

05- Drive System - All Models для BRP Ski-Doo RENEGADE - 4-STROKE - 2016

№

Артикул

Название
1

205562044 Socket Head Screw M6 X 20, Scotch Grip

Socket Head Screw M6 X 20, Scotch Grip
2

205862044 Socket Head Screw M6 X 20, Scotch Grip

Socket Head Screw M6 X 20, Scotch Grip
3

207089044 Hex. Screw M8 X 90

Hex. Screw M8 X 90
4

207503046 Hex. Flanged Screw M10 X 30, Scotch Grip

Hex. Flanged Screw M10 X 30, Scotch Grip
5

207562544 Hex. Flanged Screw M6 X 25, Scotch Grip

Hex. Flanged Screw M6 X 25, Scotch Grip
6

207564044 Hex. Flanged Screw M6 X 40, Scotch Grip

Hex. Flanged Screw M6 X 40, Scotch Grip
7

232006414 Hex. Nut M10

Hex. Nut M10
8

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6
9

233281414 Hex. Flanged Elastic Nut M8

Hex. Flanged Elastic Nut M8
10

250000340 Socket Head Screw M8 X 25, Scotch Grip

Socket Head Screw M8 X 25, Scotch Grip
11

210263050 Screw-Forming HEX.HD.FL.BZN

Screw-Forming HEX.HD.FL.BZN
12

250200100 Bonded Washer

Bonded Washer
13

250300031 Clinch Stud M6 X 30

Clinch Stud M6 X 30
14

250400010 Rolled Pin M3 X 10

Rolled Pin M3 X 10
15

250400045 Spring Pin M5 X 16

Spring Pin M5 X 16
16

250400048 Dowel Pin

Dowel Pin
17

250500012 Allen Drive Plug 1/8-27 PTF

Allen Drive Plug 1/8-27 PTF
18

293250175 Oil Seal

Oil Seal
19

293300122 O-Ring

O-Ring
20

293300130 O-Ring

O-Ring
21

293300134 O-Ring

O-Ring
22

293350055 Ball Bearing

Ball Bearing
23

293350059 Ball Bearing

Ball Bearing
24

293350063 Needle Bearing

Needle Bearing
25

293350064 Needle Bearing

Needle Bearing
26

293350074 Ball Bearing

Ball Bearing
27

293370054 Circlip

Circlip
28

293370055 Circlip

Circlip
31

293710035 Straight Fitting

Straight Fitting
32

414115200 Tie-Rap 180 mm

Tie-Rap 180 mm
36

414484400 O-Ring

O-Ring
37

414554800 Spring Clamp

Spring Clamp
38

415049300 Oil Seal

Oil Seal
39

504077300 Spacer

Spacer
40

504078700 Ring

Ring
41

504082900 Washer

Washer
42

504083100 Reverse Shaft

Reverse Shaft
43

504152282 Circlip

Circlip
44

504152571 Seal

Seal
45

504152572 Circlip

Circlip
46

504152576 Circlip

Circlip
47

504152581 Sprocket, 49 Teeth. 49 Teeth

Sprocket, 49 Teeth. 49 Teeth
47

504152593 Sprocket, 45 Teeth. 45 Teeth

Sprocket, 45 Teeth. 45 Teeth
47

504152971 Sprocket, 51 Teeth. 51 Teeth

Sprocket, 51 Teeth. 51 Teeth
48

504152582 Circlip

Circlip
49

504152602 Adjustment Screw

Adjustment Screw
50

504152619 Magnetic Cap

Magnetic Cap
52

504152629 Drive Chain, 104 Links. 104 Links

Drive Chain, 104 Links. 104 Links
52

504152630 Drive Chain, 106 Links. 106 Links

Drive Chain, 106 Links. 106 Links
53

504152636 Magnetic Plug. Package-Sport

Magnetic Plug. Package-Sport
53

504152854 Magnetic Plug. Except Package-Sport

Magnetic Plug. Except Package-Sport
54

504152689 Washer

Washer
55

504152710 Double Ball Joint

Double Ball Joint
56

504152724 Sprocket, 29 Teeth

Sprocket, 29 Teeth
57

504152748 Chain Tensioner

Chain Tensioner
58

504152766 Double Ball Joint

Double Ball Joint
59

504152788 Lever

Lever
61

504152841 Tensionner Axle

Tensionner Axle
62

504152862 Washer

Washer
64

504152896 Sensor

Sensor
65

504152900 Protector Tube

Protector Tube
66

504152929 Cap Ass'y

Cap Ass'y
67

504152949 Housing Bearing

Housing Bearing
68

504152951 Ball Joint

Ball Joint
69

504152954 Fork Ass'y

Fork Ass'y
70

504152956 Welded Axel Fork

Welded Axel Fork
71

504152960 Slinding Gear, 27 Teeth

Slinding Gear, 27 Teeth
72

504152927 Sprocket, 21 Teeth. 21 Teeth

Sprocket, 21 Teeth. 21 Teeth
72

504152961 Sprocket, 24 Teeth. 24 Teeth

Sprocket, 24 Teeth. 24 Teeth
73

504152979 Coupling

Coupling
74

504152739 Slider Chain

Slider Chain
75

504153074 Protector Tube

Protector Tube
76

504153082 Grip

Grip
79

504153122 Chain Slider

Chain Slider
80

504153144 Chaincase Cover Ass'y. Package-Sport

Chaincase Cover Ass'y. Package-Sport
80

504153412 Cover Assembly. Except Package-Sport

Cover Assembly. Except Package-Sport
81

504152803 Track Ass'y 16X137X1.7. Model N° : MMGJ

Track Ass'y 16X137X1.7. Model N° : MMGJ
81

504152905 Track Ass'y 15X137X1.2. Model N° : MMGA,MMGB,MMGE,MMGF

Track Ass'y 15X137X1.2. Model N° : MMGA,MMGB,MMGE,MMGF
81

504152905 Track Ass'y 15X137X1.2. Model N° : MNGA,MNGB,MBGA,MBGB

Track Ass'y 15X137X1.2. Model N° : MNGA,MNGB,MBGA,MBGB
81

504153101 Track Ass'y 15'' X 137'' X 1.25''. Model N° : MMGC,MMGD,MMGG,MMGH

Track Ass'y 15'' X 137'' X 1.25''. Model N° : MMGC,MMGD,MMGG,MMGH
81

504153101 Track Ass'y 15'' X 137'' X 1.25''. Model N° : UBGA,UBGB,UNGA,UNGB

Track Ass'y 15'' X 137'' X 1.25''. Model N° : UBGA,UBGB,UNGA,UNGB
81

504153237 Track Ass'y 15'' X 137'' X 1.5RS''. Model N° : MBGC

Track Ass'y 15'' X 137'' X 1.5RS''. Model N° : MBGC
81

504152838 Track Ass'y, 15X137X1.2C. Model N° : MCGA,MCGB

Track Ass'y, 15X137X1.2C. Model N° : MCGA,MCGB
82

504153174 Grip

Grip
83

504153178 Spring Release

Spring Release
85

504153184 Chaincase. Package-Sport

Chaincase. Package-Sport
85

504153407 Chain Case. Except Package-Sport

Chain Case. Except Package-Sport
86

504153187 Bearing Housing

Bearing Housing
87

504153269 Drive Axle Ass'y

Drive Axle Ass'y
88

504153083 Drive Axle Ass'y

Drive Axle Ass'y
89

504153418 BEARING HOUSING

BEARING HOUSING
90

415080200 Hose, Polyurethane

Hose, Polyurethane
92

570048600 Alignement Rod

Alignement Rod
93

581096900 Sprock Ass'y, 19 Teeth

Sprock Ass'y, 19 Teeth
94

504152930 Cap

Cap
94

504152930 Cap

Cap
95

504153000 Countershaft

Countershaft
96

235381646 Torx Screw M8 X 16, Scotch Grip

Torx Screw M8 X 16, Scotch Grip
97

415129528 Track Guide

Track Guide
98

504152651 Cleat. Model N° : MMGJ

Cleat. Model N° : MMGJ
98

504152651 Cleat. Model N° : MCGA,MCGB

Cleat. Model N° : MCGA,MCGB
98

415129529 Cleat. Model N° : MMGC,MMGD,MMGG,MMGH

Cleat. Model N° : MMGC,MMGD,MMGG,MMGH
98

415129529 Cleat. Model N° : MBGC

Cleat. Model N° : MBGC
100

518325816 Plate

Plate
