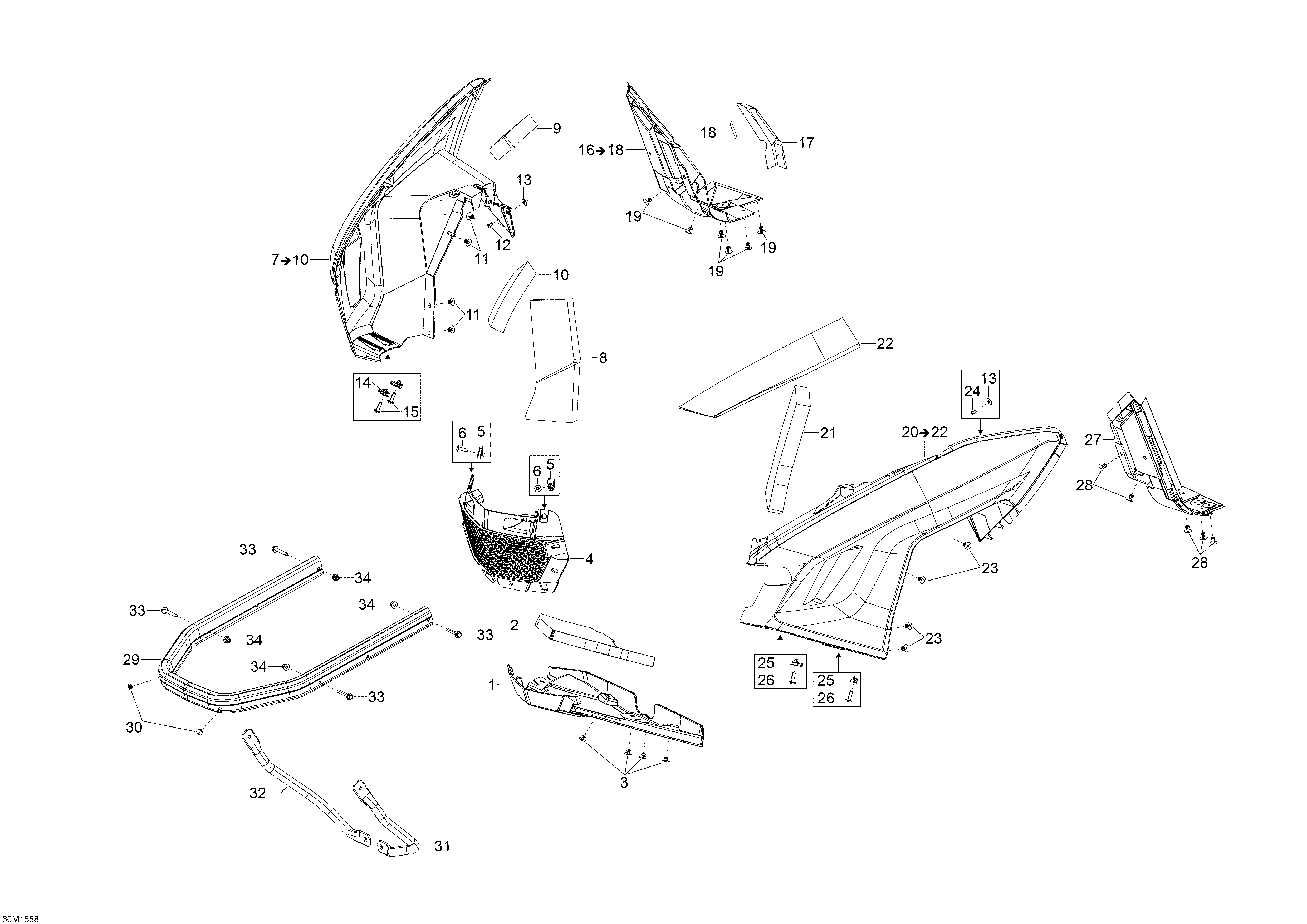

09- Bottom Pan _30M1556 для BRP Ski-Doo Expedition LE 900 ACE - 2015

-
№АртикулНазвание
-
1502007184 Black Bottom Pan FrontBlack Bottom Pan Front
-
2502007002 InsulatorInsulator
-
3293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
4502007145 GrillGrill
-
5250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
6250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
7502007188 Black Bottom Pan Ass'y RH. Includes 7 To 10Black Bottom Pan Ass'y RH. Includes 7 To 10
-
8502007006 InsulatorInsulator
-
9502007008 InsulatorInsulator
-
10502007009 InsulatorInsulator
-
11293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
12390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
13234052450 Flat WasherFlat Washer
-
14250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
15250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
16502007193 Bottom-pan rear, RH. Includes 16 To 18Bottom-pan rear, RH. Includes 16 To 18
-
17502007038 Aluminium FoilAluminium Foil
-
1844110 Aluminum foilAluminum foil
-
19293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
20502007196 Black Bottom Pan Ass'y LH. Includes 20 To 22Black Bottom Pan Ass'y LH. Includes 20 To 22
-
21502007003 InsulatorInsulator
-
22502007185 InsulatorInsulator
-
23293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
24390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
25250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
26250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
27502007195 Black Bottom Pan Rear Ass'y LHBlack Bottom Pan Rear Ass'y LH
-
28293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
29502007469 BumperBumper
-
30293730041 Full Moon Dart 8 mmFull Moon Dart 8 mm
-
31502007014 LH Bumper SupportLH Bumper Support
-
32502007015 RH Bumper SupportRH Bumper Support
-
33207664044 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
34233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
