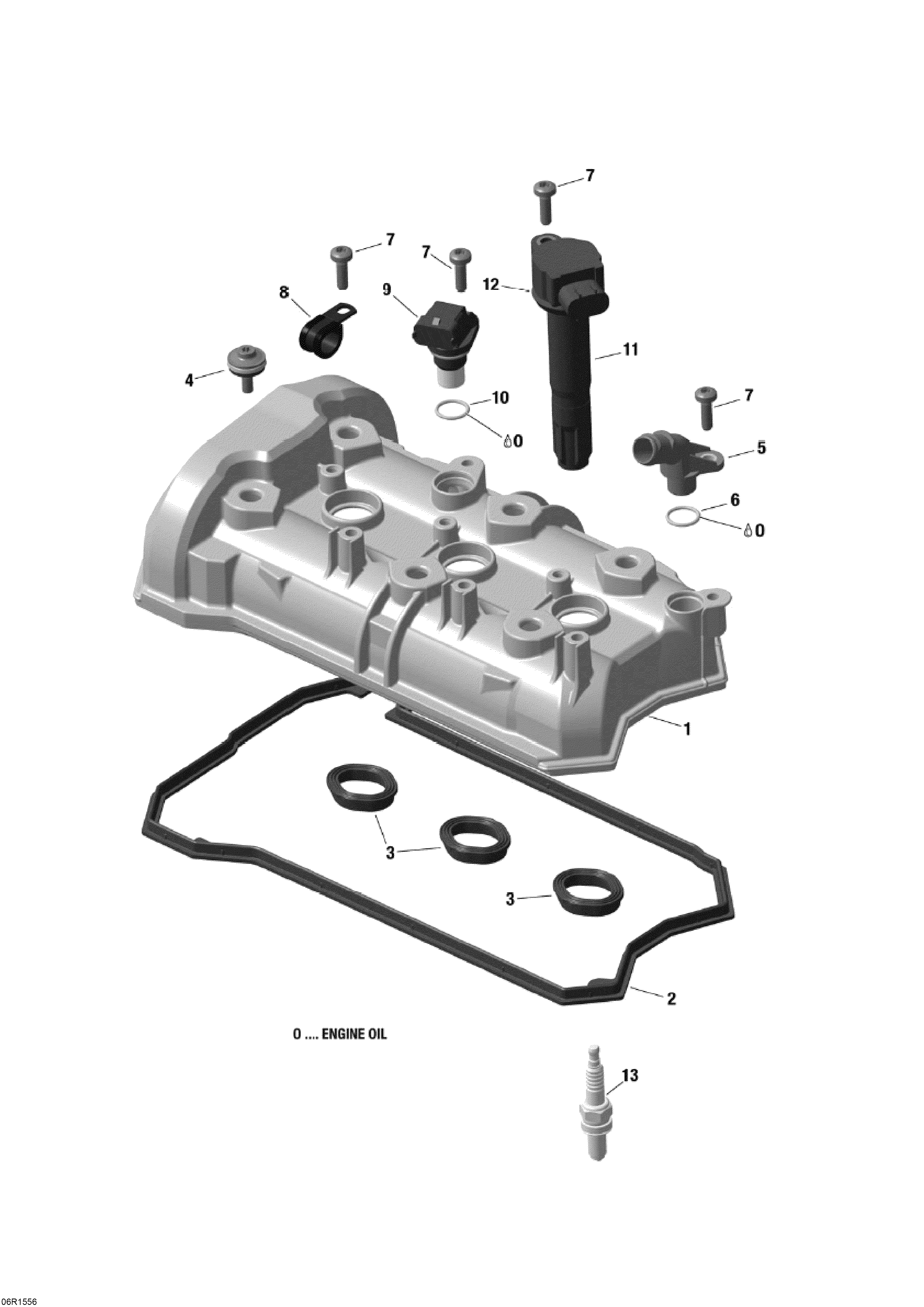

01- Valve Cover _06R1556 для BRP Ski-Doo Expedition LE 900 ACE - 2015
-
№АртикулНазвание
-
1420911492 Valve CoverValve Cover
-
2420431801 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
3420431751 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
4420440495 Torx Distance Screw M6Torx Distance Screw M6
-
5420611240 ConnectorConnector
-
6420631240 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
7420441386 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
8420851492 Cable ClampCable Clamp
-
9420664045 Camshaft Position Sensor Ass'y. Includes 9 To 10Camshaft Position Sensor Ass'y. Includes 9 To 10
-
10420631890 O-Ring. Includes In Gasket KitO-Ring. Includes In Gasket Kit
-
11420666141 Ignition Coil Ass'y. Includes 11 To 12Ignition Coil Ass'y. Includes 11 To 12
-
12420201430 Protection CapProtection Cap
-
13415129670 Spark Plug, NGK MR7BI-8Spark Plug, NGK MR7BI-8
