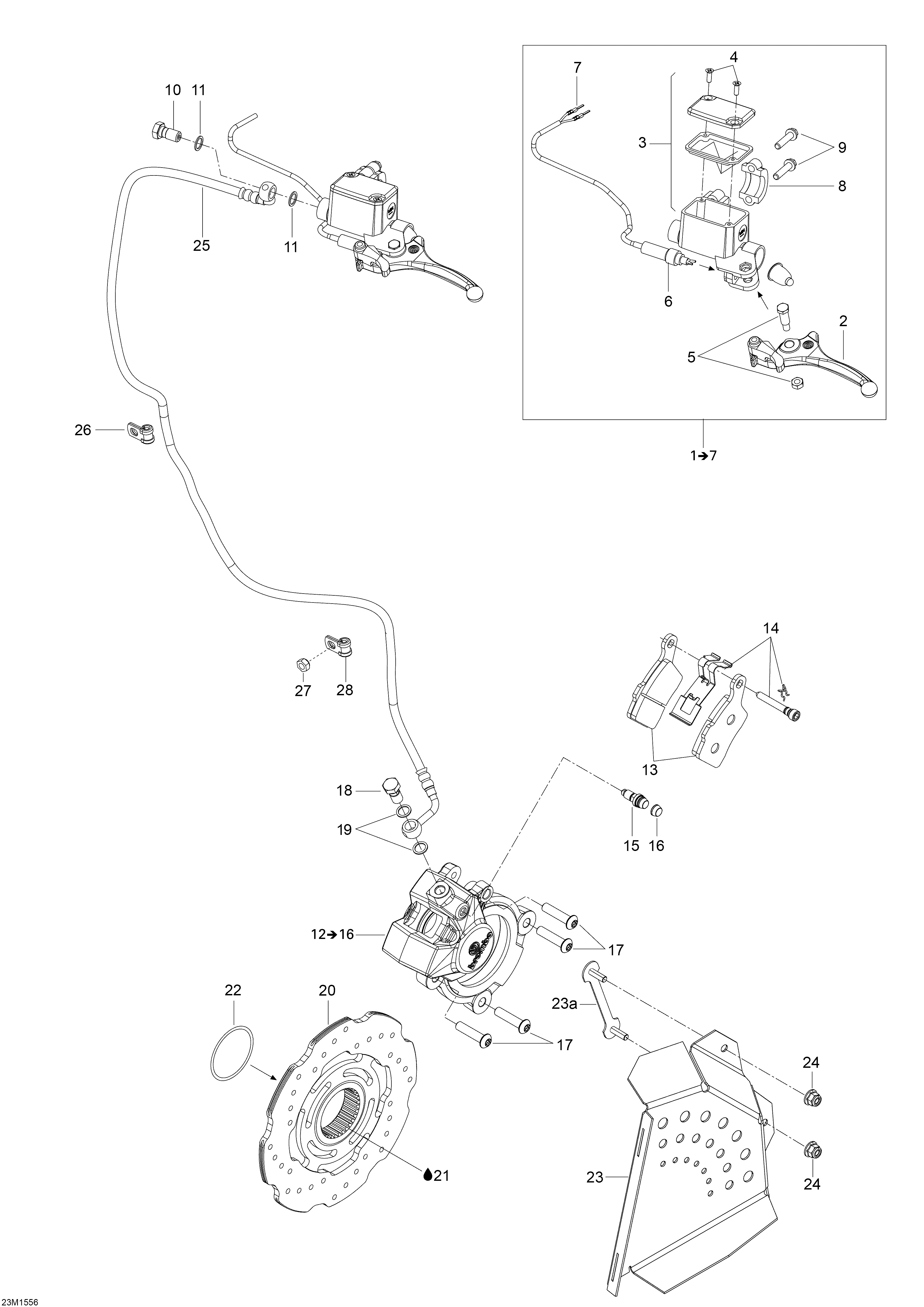

06- Hydraulic Brakes _23M1556 для BRP Ski-Doo Expedition LE 900 ACE - 2015
-
№АртикулНазвание
-
1507032518 Master Cylinder Ass'y. Includes 1 To 7Master Cylinder Ass'y. Includes 1 To 7
-
2507032476 LeverLever
-
3507032478 Master Cylinder Reservoir Ass'yMaster Cylinder Reservoir Ass'y
-
4415129356 Screw M4 X 20Screw M4 X 20
-
5415030000 Pin Ass'yPin Ass'y
-
6507032479 MicroswitchMicroswitch
-
7515175232 Male TerminalMale Terminal
-
8719000049 Clamps KitClamps Kit
-
9250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
10507032551 Banjo BoltBanjo Bolt
-
11705600310 Copper WasherCopper Washer
-
12507032498 Brake Caliper Ass'y. Includes 12 To 16Brake Caliper Ass'y. Includes 12 To 16
-
13507032473 Brake Pads KitBrake Pads Kit
-
14507032474 Pin, Clip & Spring KitPin, Clip & Spring Kit
-
15507032475 BleederBleeder
-
16414989700 BootBoot
-
17250000301 Torx Screw M8 X 35, Scotch GripTorx Screw M8 X 35, Scotch Grip
-
18507032551 Banjo BoltBanjo Bolt
-
19705600310 Copper WasherCopper Washer
-
20507032513 DiskDisk
-
22293300134 O-RingO-Ring
-
23507032525 Disk ProtectorDisk Protector
-
23a518328661 Counter PlateCounter Plate
-
24233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
25507032548 Hose, Steel BraidedHose, Steel Braided
-
26715900250 Hose ClipHose Clip
-
27233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
28414176000 Open ClampOpen Clamp
