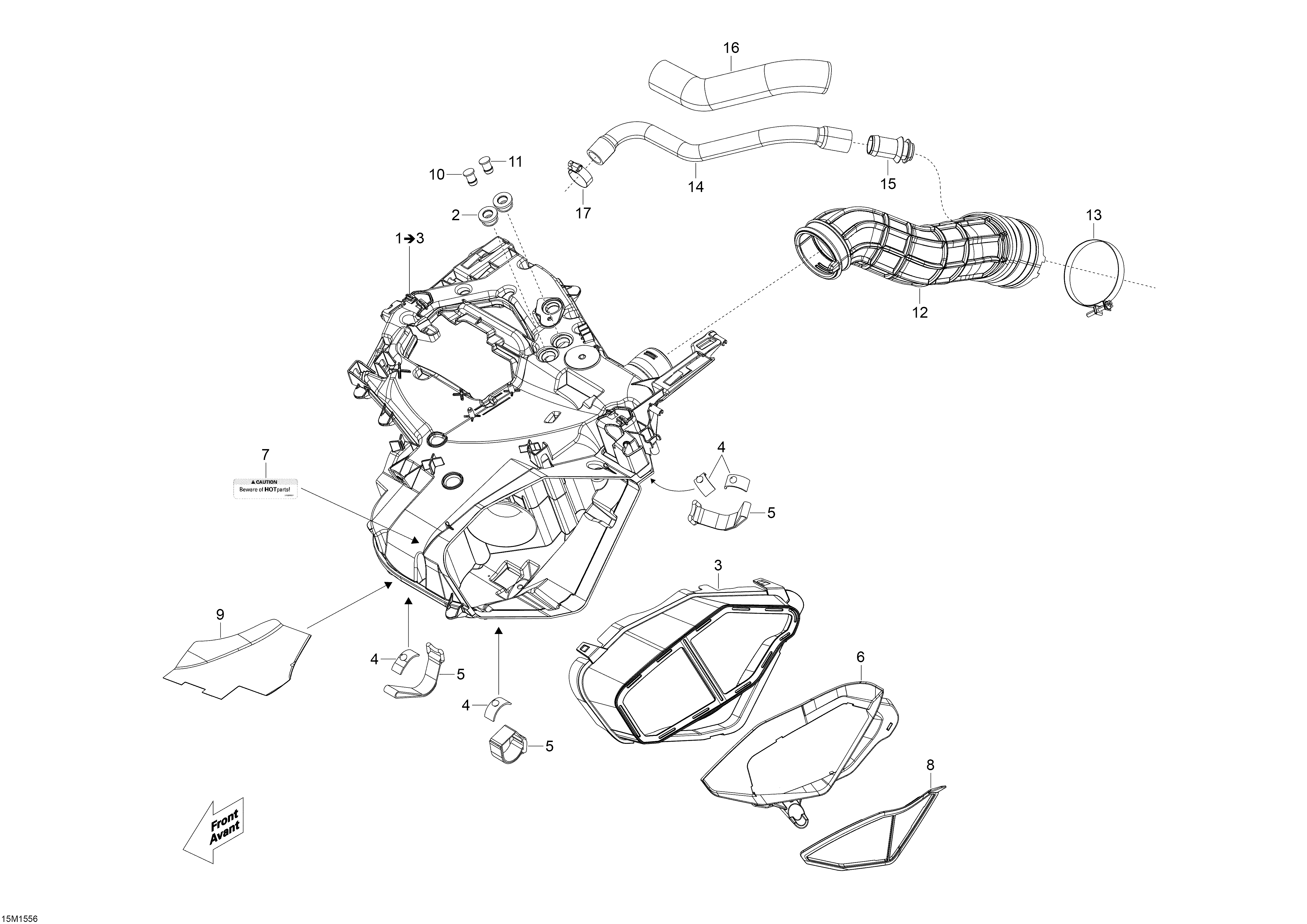

02- Air Intake System _15M1556 для BRP Ski-Doo Expedition LE 900 ACE - 2015
-
№АртикулНазвание
-
1508000715 Secondary Chamber Ass'y. Includes 1 To 3Secondary Chamber Ass'y. Includes 1 To 3
-
2508000574 GrommetGrommet
-
3508000595 Air Intake FilterAir Intake Filter
-
4508000537 StopperStopper
-
5508000532 Velcro StripVelcro Strip
-
6508000687 AdapterAdapter
-
7516004651 Caution Label, Air IntakeCaution Label, Air Intake
-
8508000609 Air FilterAir Filter
-
9508000622 Reflective SheetReflective Sheet
-
10572092900 CapCap
-
11572092900 CapCap
-
12508000773 Air Intake HoseAir Intake Hose
-
13293650229 Gemi ClampGemi Clamp
-
14508000746 Hose VentHose Vent
-
15273000234 BreatherBreather
-
16508000648 Tube IsolatorTube Isolator
-
17293650172 Tridon Gear ClampTridon Gear Clamp
