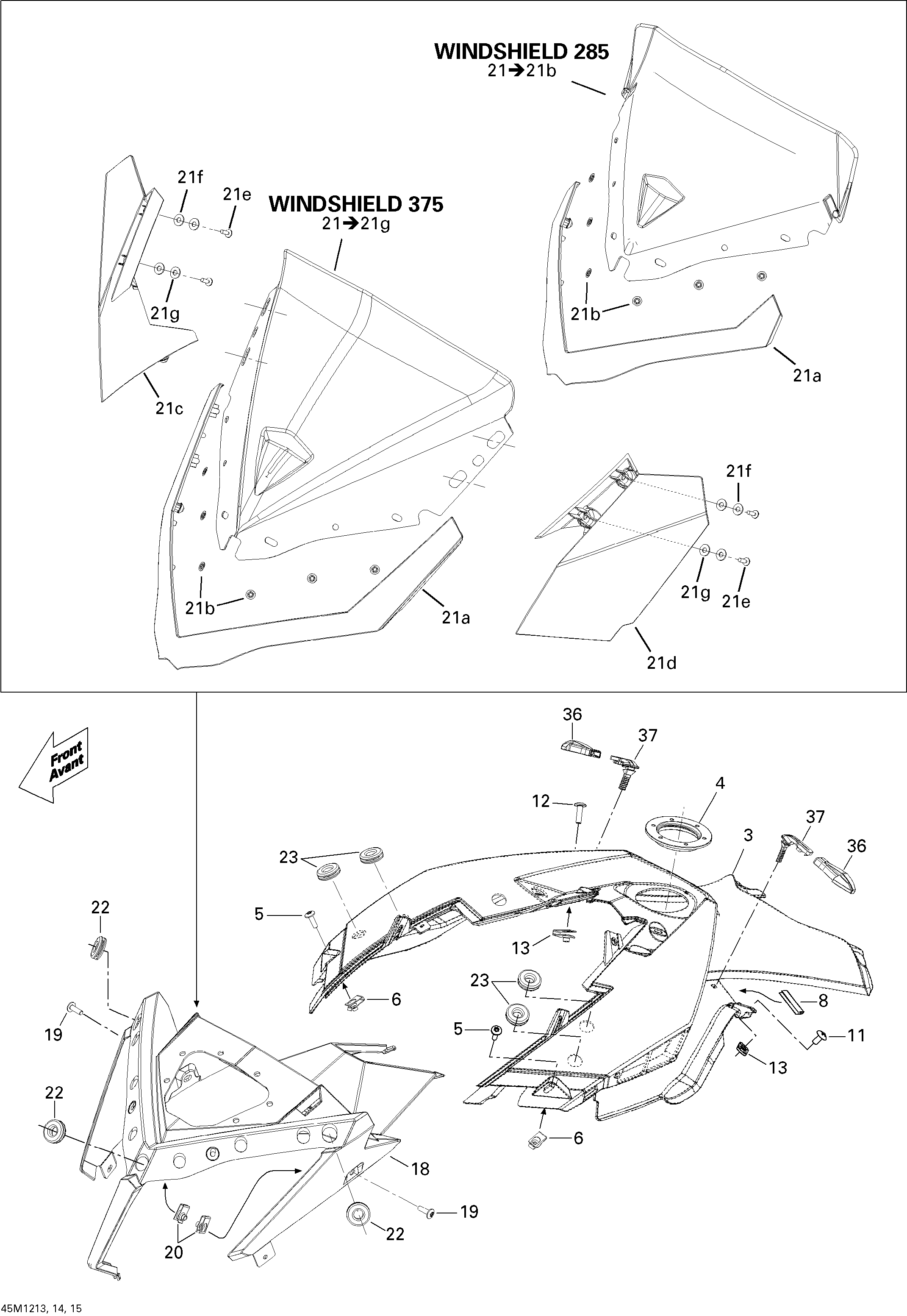

09- Windshield And Console для BRP Ski-Doo Summit X 800R E-TEC - 2012
-
№АртикулНазвание
-
3517304672 Console, Deep BlackConsole, Deep Black
-
4517304518 Console NutConsole Nut
-
5250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
6732610057 Jack Nut M6Jack Nut M6
-
11250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
12250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
13250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
18517304575 Gauge Support. BlackGauge Support. Black
-
18517304579 Gauge Support. WhiteGauge Support. White
-
19250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
20250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
21517304390 Windshield Ass'y 285. XWindshield Ass'y 285. X
-
21a517303757 Windshield Support. XWindshield Support. X
-
21b732610072 Push Nut. XPush Nut. X
-
22517303756 GrommetGrommet
-
36860200239 Black Latch Kit. BlackBlack Latch Kit. Black
-
36517304435 End Piece Latch, Bright White. WhiteEnd Piece Latch, Bright White. White
-
37517303981 Panel LatchPanel Latch
