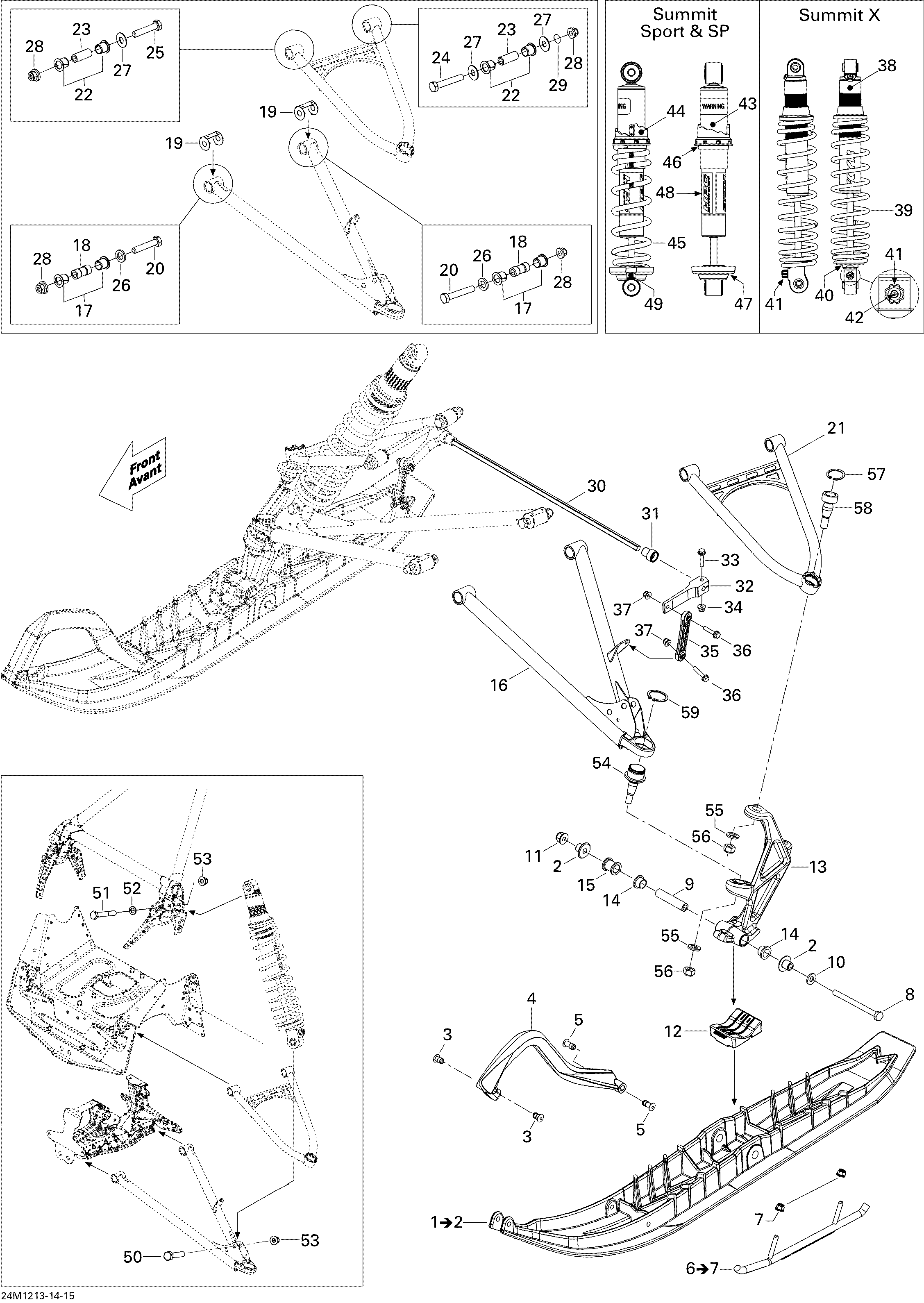

07- Front Suspension And Ski для BRP Ski-Doo Summit X 800R E-TEC - 2012

  • №
    Артикул
    Название
  • 1
    415129567 DS Ski, Black. Includes 1 to 2
    DS Ski, Black. Includes 1 to 2
  • 2
    505071781 Cushion
    Cushion
  • 3
    505071812 Retainer
    Retainer
  • 4
    505072976 Handle, Black. Summit X
    Handle, Black. Summit X
  • 5
    505072133 Retainer
    Retainer
  • 6
    860200141 Carbide Kit. Includes 6 to 7
    Carbide Kit. Includes 6 to 7
  • 7
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 8
    230003044 Hex. Screw M10 X 130
    Hex. Screw M10 X 130
  • 9
    506133300 Spacer
    Spacer
  • 10
    732900049 Washer
    Washer
  • 11
    233201414 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 12
    505072594 Ski Stopper
    Ski Stopper
  • 13
    505073098 LH Ski Leg. Summit X, Black-White
    LH Ski Leg. Summit X, Black-White
  • 13
    505073099 RH Ski Leg. Summit X, Black-White
    RH Ski Leg. Summit X, Black-White
  • 13
    505073177 LH Ski Leg. Summit X, Black-Black
    LH Ski Leg. Summit X, Black-Black
  • 13
    505073178 RH Ski Leg. Summit X, Black-Black
    RH Ski Leg. Summit X, Black-Black
  • 14
    505072690 Leg Cushion
    Leg Cushion
  • 15
    505071999 Spacer
    Spacer
  • 16
    505073040 RH Lower Arm
    RH Lower Arm
  • 16
    505073039 LH Lower Arm
    LH Lower Arm
  • 17
    505072208 Bushing
    Bushing
  • 18
    505072214 Bushing. Summit X
    Bushing. Summit X
  • 19
    505072634 Wear Plate
    Wear Plate
  • 20
    250000291 Screw Hex. M10 X 70
    Screw Hex. M10 X 70
  • 21
    505073013 LH Upper Arm
    LH Upper Arm
  • 21
    505073014 RH Upper Arm
    RH Upper Arm
  • 22
    505072250 Bushing
    Bushing
  • 23
    505072143 Bushing
    Bushing
  • 24
    250000290 Screw Hex. M10 X 60
    Screw Hex. M10 X 60
  • 25
    250000289 Screw Hex. M10 X 50
    Screw Hex. M10 X 50
  • 26
    503189564 Washer
    Washer
  • 27
    505072392 Washer
    Washer
  • 28
    250100088 Hex. Elastic Hex. Nut M10
    Hex. Elastic Hex. Nut M10
  • 29
    505072448 O-Ring
    O-Ring
  • 30
    505072785 Stabilisator
    Stabilisator
  • 31
    505072786 Bushing
    Bushing
  • 32
    505072787 Stabilisator Lever
    Stabilisator Lever
  • 33
    207663046 Flanged Hex. Screw M6 X 30
    Flanged Hex. Screw M6 X 30
  • 34
    233261416 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 35
    505072204 Double Ball Joint Link
    Double Ball Joint Link
  • 36
    207663046 Flanged Hex. Screw M6 X 30
    Flanged Hex. Screw M6 X 30
  • 37
    233261416 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 38
    505073118 Front Shock HPG. Summit X
    Front Shock HPG. Summit X
  • 39
    505072726 Painted Spring. Summit X
    Painted Spring. Summit X
  • 40
    503192608 Spring Stopper. Summit X
    Spring Stopper. Summit X
  • 41
    505072753 Knob Ajuster. Summit X
    Knob Ajuster. Summit X
  • 42
    205031060 Socket Screw M3 X 10. Summit X
    Socket Screw M3 X 10. Summit X
  • 50
    207005544 Hex. Screw M10 X 55
    Hex. Screw M10 X 55
  • 51
    207006544 Hex. Screw M10 X 65
    Hex. Screw M10 X 65
  • 52
    503189564 Washer
    Washer
  • 53
    233201414 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 54
    505072682 Lower Ball Joint
    Lower Ball Joint
  • 55
    234021410 Flat Washer 12 mm
    Flat Washer 12 mm
  • 56
    250100089 Hex. Elastic Hex. Nut M12
    Hex. Elastic Hex. Nut M12
  • 57
    293370070 Circlip
    Circlip
  • 58
    505072913 Upper Ball Joint
    Upper Ball Joint
  • 59
    293370035 Circlip
    Circlip
