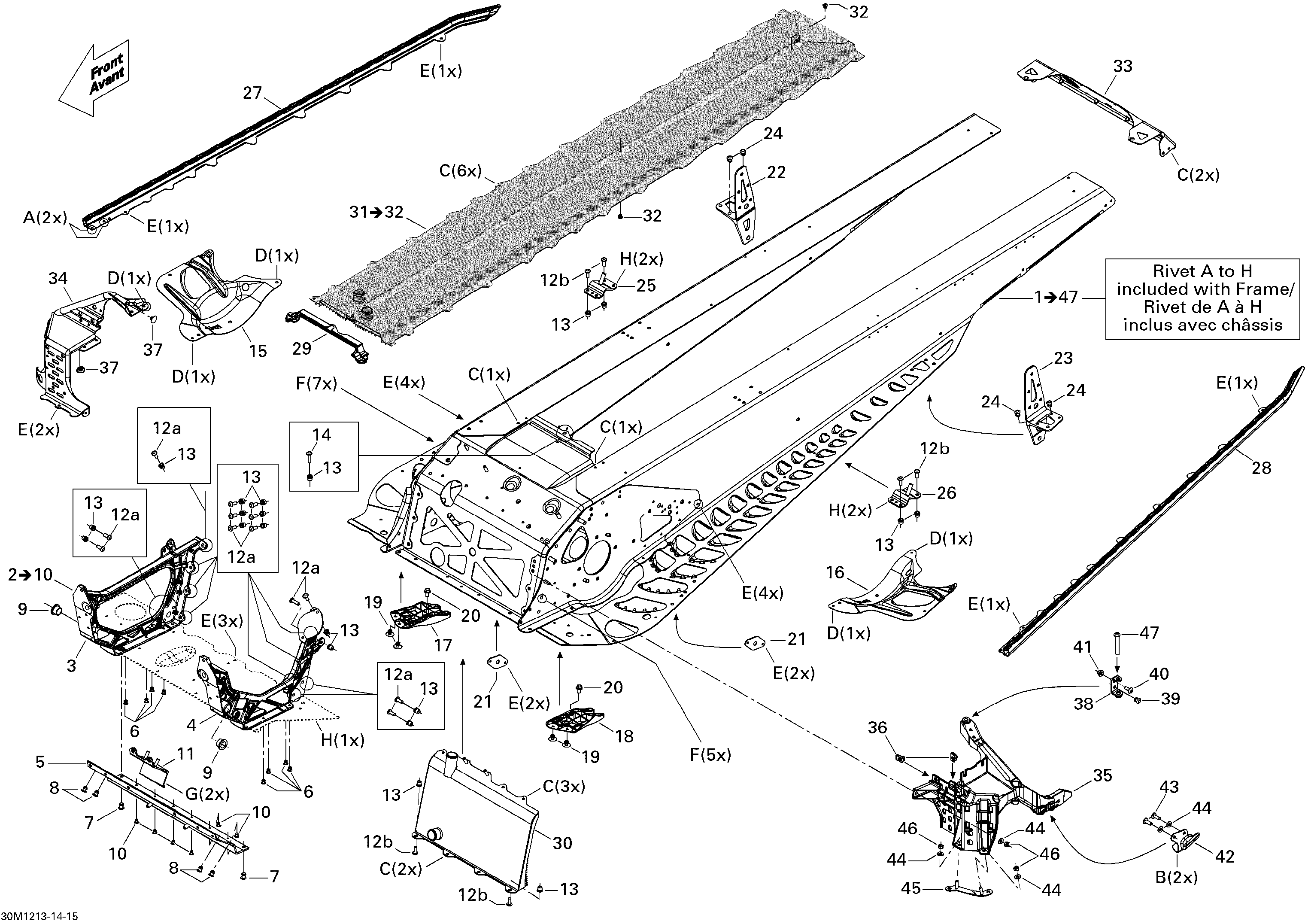

09- Frame для BRP Ski-Doo Summit X 800R E-TEC - 2012

  • №
    Артикул
    Название
  • 1
    415129641 Frame Ass'y, 146''. Includes 1 to 47, Track 146''
    Frame Ass'y, 146''. Includes 1 to 47, Track 146''
  • 1
    415129640 Frame Ass'y, 154''. Includes 1 to 47, Track 154''
    Frame Ass'y, 154''. Includes 1 to 47, Track 154''
  • 1
    415129639 Frame Ass'y, 163''. Includes 1 to 47, Track 163''
    Frame Ass'y, 163''. Includes 1 to 47, Track 163''
  • 2
    518326843 E-Module Ass'y. Includes 2 to 10
    E-Module Ass'y. Includes 2 to 10
  • 3
    518326795 RH Member
    RH Member
  • 4
    518326796 LH Member
    LH Member
  • 5
    518326198 Front Member
    Front Member
  • 6
    293150144 Stavex Rivet
    Stavex Rivet
  • 7
    293150120 Hemlock Rivet 6.5 mm
    Hemlock Rivet 6.5 mm
  • 8
    293150119 Hemlock Rivet, 6.5 mm
    Hemlock Rivet, 6.5 mm
  • 9
    505072690 Leg Cushion
    Leg Cushion
  • 11
    518325943 MAG Engine Support
    MAG Engine Support
  • 12a
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 12b
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 13
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 14
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 15
    518324874 RH Reinforcement
    RH Reinforcement
  • 16
    518324875 LH Reinforcement
    LH Reinforcement
  • 17
    518325782 RH Deflector
    RH Deflector
  • 18
    518325783 LH Deflector
    LH Deflector
  • 19
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 20
    207561244 Hex. Flanged Screw M6 X 12, Scotch Grip
    Hex. Flanged Screw M6 X 12, Scotch Grip
  • 21
    518326647 Reinforcement Plate
    Reinforcement Plate
  • 22
    518324976 RH Suspension Bracket
    RH Suspension Bracket
  • 23
    518324977 LH Suspension Bracket
    LH Suspension Bracket
  • 24
    293150147 Hemlock Rivet
    Hemlock Rivet
  • 25
    518325973 RH Rear Base
    RH Rear Base
  • 26
    518325974 LH Rear Base
    LH Rear Base
  • 27
    518325159 RH Roller
    RH Roller
  • 28
    518325160 LH Roller
    LH Roller
  • 29
    518326656 Seal
    Seal
  • 30
    518326485 Front Radiator
    Front Radiator
  • 31
    518326728 Rear Radiator Ass'y, 146''. Includes 31 to 32, Track 146''
    Rear Radiator Ass'y, 146''. Includes 31 to 32, Track 146''
  • 31
    518326692 Rear Radiator Ass'y, 154''. Includes 31 to 32, Track 154''
    Rear Radiator Ass'y, 154''. Includes 31 to 32, Track 154''
  • 31
    518326735 Rear Radiator Ass'y, 163''. Includes 31 to 32, Track 163''
    Rear Radiator Ass'y, 163''. Includes 31 to 32, Track 163''
  • 32
    293150144 Stavex Rivet
    Stavex Rivet
  • 33
    518325421 Rear Cap
    Rear Cap
  • 34
    518326216 RH Stirup
    RH Stirup
  • 35
    518326820 LH Stirup
    LH Stirup
  • 36
    250000079 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 37
    293730042 Dart
    Dart
  • 38
    518326961 U-Attach
    U-Attach
  • 39
    293150147 Hemlock Rivet
    Hemlock Rivet
  • 40
    250000534 Tork Screw M6 X 16
    Tork Screw M6 X 16
  • 41
    233061414 Hex. Flanged Nut M6
    Hex. Flanged Nut M6
  • 42
    518326960 Support
    Support
  • 43
    250000536 Tork Screw M6 X 18
    Tork Screw M6 X 18
  • 44
    250200039 Flat Washer
    Flat Washer
  • 45
    518326986 Attach
    Attach
  • 46
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 47
    250000535 Tork Screw M8 X 55
    Tork Screw M8 X 55
  • A
    390402300 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • B
    293150194 Interlock Rivet 3/16''
    Interlock Rivet 3/16''
  • C
    390909200 Avex Rivet
    Avex Rivet
  • D
    390909100 Avex Rivet
    Avex Rivet
  • E
    293150144 Stavex Rivet
    Stavex Rivet
  • F
    293150146 Henrob Rivet
    Henrob Rivet
  • G
    293150119 Hemlock Rivet, 6.5 mm
    Hemlock Rivet, 6.5 mm
  • H
    293150174 Hemlock Rivet, 6.4 mm
    Hemlock Rivet, 6.4 mm
