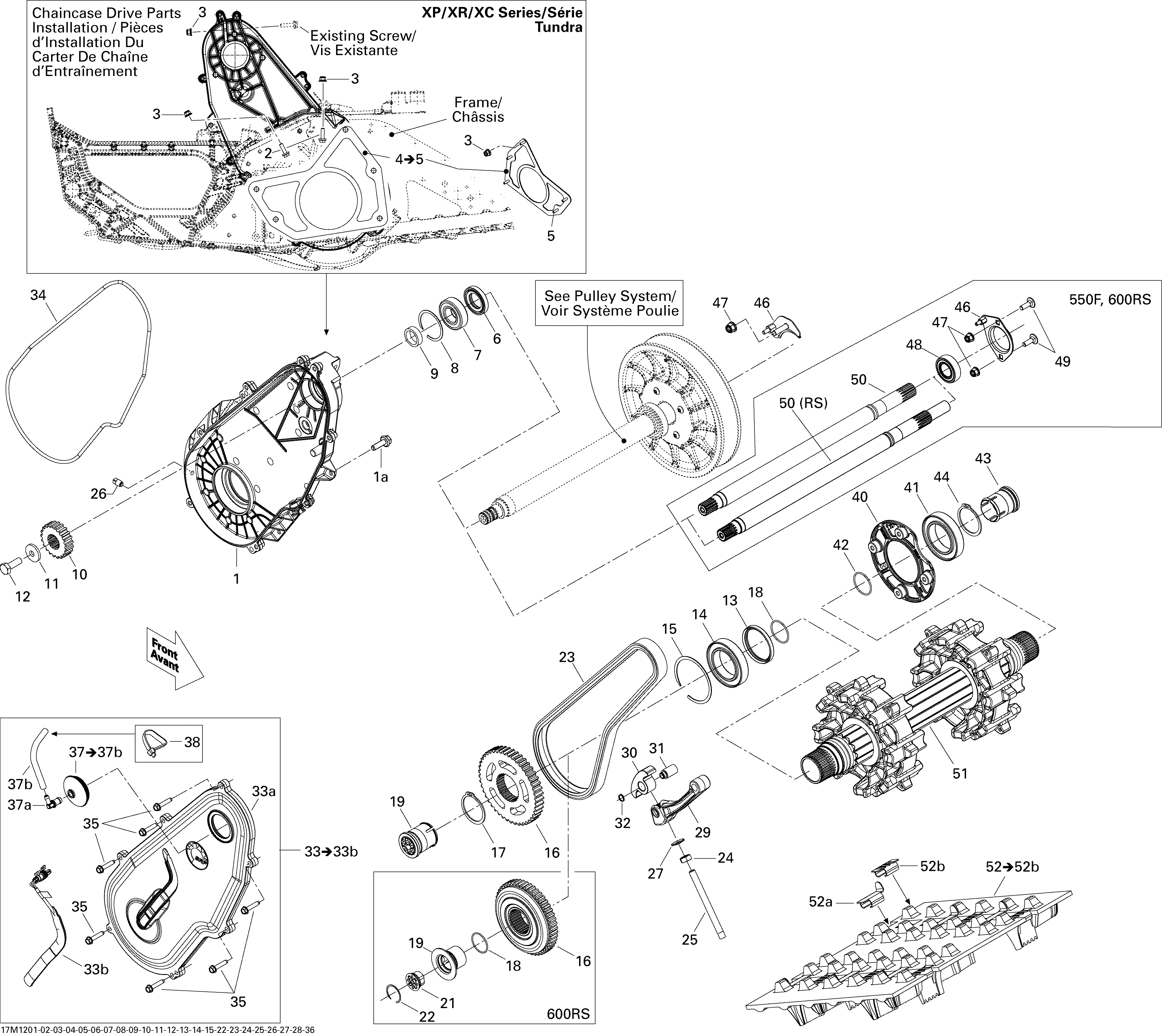

05- Drive System для BRP Ski-Doo Summit X 800R E-TEC - 2012

  • №
    Артикул
    Название
  • 1
    504153055 Chaincase
    Chaincase
  • 2
    207662034 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 3
    233261434 Flanged Elastic Nut M6
    Flanged Elastic Nut M6
  • 4
    518325816 Plate. Includes 4 to 5
    Plate. Includes 4 to 5
  • 6
    415049300 Oil Seal
    Oil Seal
  • 7
    293350055 Ball Bearing
    Ball Bearing
  • 8
    504152576 Circlip
    Circlip
  • 9
    504152628 Shim
    Shim
  • 10
    504096200 Sprocket, 21 Teeth. 21 Teeth, 146'', 154''
    Sprocket, 21 Teeth. 21 Teeth, 146'', 154''
  • 10
    504152030 Sprocket, 19 Teeth. 19 Teeth, 154'', 163''
    Sprocket, 19 Teeth. 19 Teeth, 154'', 163''
  • 11
    504152784 Spring Washer M10
    Spring Washer M10
  • 12
    207103044 Hex. Screw M10 X 30
    Hex. Screw M10 X 30
  • 13
    504152571 Seal
    Seal
  • 14
    293350059 Ball Bearing
    Ball Bearing
  • 15
    504152582 Circlip
    Circlip
  • 16
    504152581 Sprocket, 49 Teeth. 49 Teeth, 146'', 154''
    Sprocket, 49 Teeth. 49 Teeth, 146'', 154''
  • 16
    504152971 Sprocket, 51 Teeth. 51 Teeth, 163''
    Sprocket, 51 Teeth. 51 Teeth, 163''
  • 17
    504152572 Circlip
    Circlip
  • 18
    293300122 O-Ring
    O-Ring
  • 19
    504152619 Magnetic Cap
    Magnetic Cap
  • 23
    504152629 Drive Chain, 104 Links. 106 Chain Link, 146'', 154''
    Drive Chain, 104 Links. 106 Chain Link, 146'', 154''
  • 23
    504152630 Drive Chain, 106 Links. 106 Chain Link, 146'', 154'', 163''
    Drive Chain, 106 Links. 106 Chain Link, 146'', 154'', 163''
  • 24
    232006414 Hex. Nut M10 X 1.5
    Hex. Nut M10 X 1.5
  • 25
    504152602 Adjustment Screw
    Adjustment Screw
  • 26
    504152854 Magnetic Plug 1/8 - 27 NPTF
    Magnetic Plug 1/8 - 27 NPTF
  • 27
    250200100 Bonded Washer
    Bonded Washer
  • 29
    504152685 Chain Tensioner
    Chain Tensioner
  • 30
    504152739 Slider Chain
    Slider Chain
  • 31
    504152841 Tensioner Axle
    Tensioner Axle
  • 32
    504152282 Circlip
    Circlip
  • 33
    504153059 Chaincase Cover Ass'y. Includes 33 to 33b
    Chaincase Cover Ass'y. Includes 33 to 33b
  • 34
    293300130 Tight Seal
    Tight Seal
  • 35
    210263080 Hex. Flanged Screw M6 X 30
    Hex. Flanged Screw M6 X 30
  • 37
    504152860 Cap. Includes 37 to 37b
    Cap. Includes 37 to 37b
  • 40
    504152949 Housing Bearing
    Housing Bearing
  • 41
    293350059 Ball Bearing
    Ball Bearing
  • 42
    293300122 O-Ring
    O-Ring
  • 43
    504152619 Magnetic Cap
    Magnetic Cap
  • 44
    504152572 Circlip
    Circlip
  • 46
    504152974 Bearing Housing
    Bearing Housing
  • 47
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 51
    504153083 Drive Axle Ass'y
    Drive Axle Ass'y
  • 52
    504153008 Track Ass'y 16'' X 146'' X 2.50''. Includes 52 to 52b
    Track Ass'y 16'' X 146'' X 2.50''. Includes 52 to 52b
  • 52
    504153009 Track Ass'y 16'' X 154'' X 2.50''. Includes 52 to 52b
    Track Ass'y 16'' X 154'' X 2.50''. Includes 52 to 52b
  • 52
    504153010 Track Ass'y 16'' X 163'' X 2.50''. Includes 52 to 52b
    Track Ass'y 16'' X 163'' X 2.50''. Includes 52 to 52b
  • 33a
    504152917 Chaincase Cover
    Chaincase Cover
  • 33b
    504152896 Rotation Sensor
    Rotation Sensor
  • 37a
    414580700 Male Connector
    Male Connector
  • 37b
    415080200 Hose, Polyurethane, iD 5.7mm (10M Roll)
    Hose, Polyurethane, iD 5.7mm (10M Roll)
  • 52a
    415129528 Track Guide
    Track Guide
  • 52b
    415129529 Cleat
    Cleat
