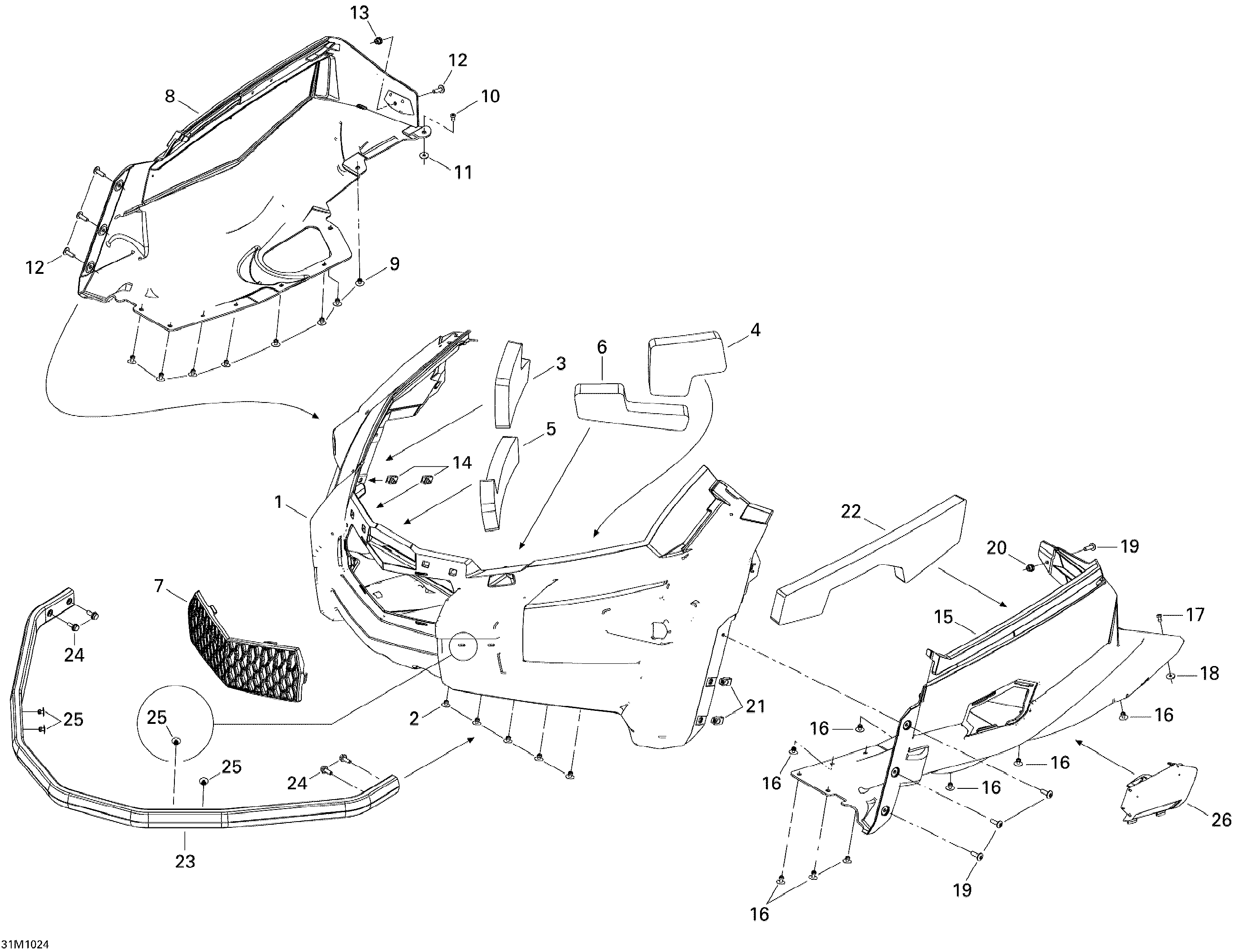

09- Bottom Pan для BRP Ski-Doo Skandic Tundra, STD, SPORT, LT - 2010
-
№АртикулНазвание
-
1502006964 Bottom PanBottom Pan
-
2293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3502007040 RH Upper FoamRH Upper Foam
-
4502007041 LH Upper FoamLH Upper Foam
-
5502007042 RH Lower FoamRH Lower Foam
-
6502007043 LH Lower FoamLH Lower Foam
-
7502006887 Botton Pan GrillBotton Pan Grill
-
8502006965 RH Bottom PanRH Bottom Pan
-
9293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
10390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
11517124300 WasherWasher
-
12250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
13415107300 InsertInsert
-
14250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
15502006966 LH Bottom PanLH Bottom Pan
-
16293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
17390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
18517124300 WasherWasher
-
19250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
20415107300 InsertInsert
-
21250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
22502007044 LH FoamLH Foam
-
23502006963 Anodized- Front BumperAnodized- Front Bumper
-
24207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
25293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
26502006970 Bottom Pan DoorBottom Pan Door
