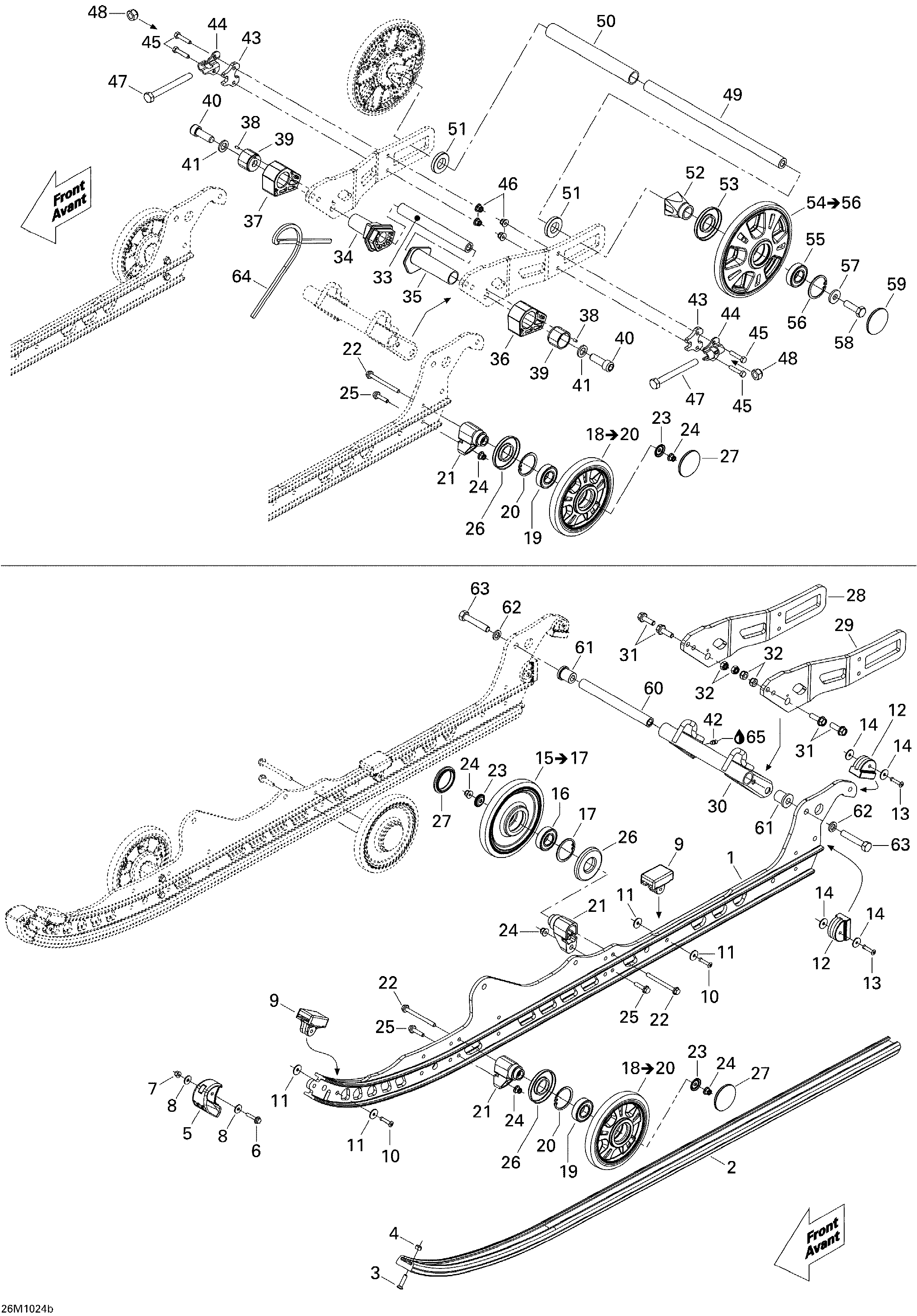

08- Rear Suspension LT для BRP Ski-Doo Skandic Tundra, STD, SPORT, LT - 2010
-
№АртикулНазвание
-
1503192132 RunnerRunner
-
2503191619 SliderSlider
-
3208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503192299 Runner ProtectorRunner Protector
-
6207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
7233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
8391301600 WasherWasher
-
9503190576 Rubber StopperRubber Stopper
-
10293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
11503191273 WasherWasher
-
12503191291 Rubber StopperRubber Stopper
-
13293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
14503191273 WasherWasher
-
15503191311 Wheel Ass'y, 147 mm. Includes 15 to 17Wheel Ass'y, 147 mm. Includes 15 to 17
-
16503190396 Ball BearingBall Bearing
-
17415129371 Retaining RingRetaining Ring
-
18503191152 Wheel Ass'y, 147 mm. Includes 18 to 20Wheel Ass'y, 147 mm. Includes 18 to 20
-
19503190396 Ball BearingBall Bearing
-
20415129371 Retaining RingRetaining Ring
-
21503191833 SupportSupport
-
22207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
23503191820 Wheel Cup M6Wheel Cup M6
-
24233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
25207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
26503190434 Labyrinth SealLabyrinth Seal
-
27570063600 Wheel CapWheel Cap
-
28503191382 RH Rear Pivot Arm RunnerRH Rear Pivot Arm Runner
-
29503191383 LH Rear Pivot Arm RunnerLH Rear Pivot Arm Runner
-
30503191598 PivotPivot
-
31207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
32232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
33503191608 Cam AxelCam Axel
-
34503191190 RH Spring CamRH Spring Cam
-
35503191668 LH Spring CamLH Spring Cam
-
36503191425 LH BlockLH Block
-
37503191426 RH BlockRH Block
-
38250400005 Dowel Pin 4 X 8 mmDowel Pin 4 X 8 mm
-
39503189488 Block GuideBlock Guide
-
40205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
41503189148 WasherWasher
-
42408200700 Grease FittingGrease Fitting
-
43503190379 Tensioner SpacerTensioner Spacer
-
44503190380 TensionerTensioner
-
45207063044 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
46233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
47230100044 Hex. Screw M10 X 100Hex. Screw M10 X 100
-
48233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
49503190429 Rear AxleRear Axle
-
50503191736 Rear Spacer, LongRear Spacer, Long
-
51503190432 WasherWasher
-
52503190428 Rear Wheel SpacerRear Wheel Spacer
-
53503190434 Labyrinth SealLabyrinth Seal
-
54503191742 Wheel 180 mm Ass'y, Black. Includes 54 to 56Wheel 180 mm Ass'y, Black. Includes 54 to 56
-
55503190396 Ball BearingBall Bearing
-
56415129371 Retaining RingRetaining Ring
-
57503190439 WasherWasher
-
58250000019 Hex. Screw With NylonHex. Screw With Nylon
-
59570063600 Wheel CapWheel Cap
-
60503191279 Lower ShaftLower Shaft
-
61503189324 CushionCushion
-
62503189564 WasherWasher
-
63207205586 Hex. Screw M10 X 55, Scotch GripHex. Screw M10 X 55, Scotch Grip
-
64503192282 Pivot SpringPivot Spring
-
65293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
