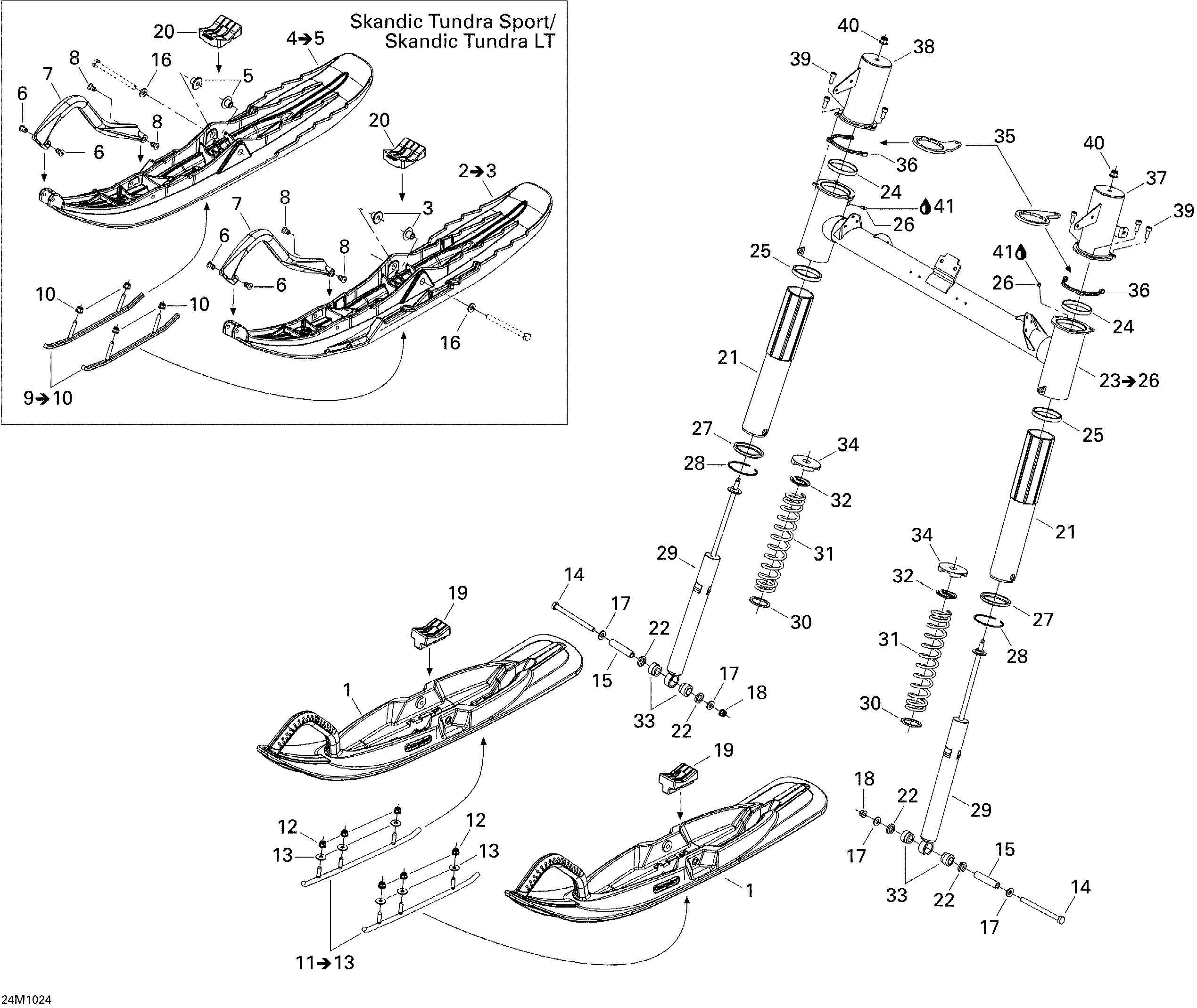

07- Front Suspension And Ski для BRP Ski-Doo Skandic Tundra, STD, SPORT, LT - 2010
-
№АртикулНазвание
-
1505072020 Large ''Blow Mold'' Ski. STDLarge ''Blow Mold'' Ski. STD
-
2505072174 RH Pilot Ski 6.9 Ass'y. Includes 2 to 3, SPORT & LTRH Pilot Ski 6.9 Ass'y. Includes 2 to 3, SPORT & LT
-
3505071781 Cushion. SPORT & LTCushion. SPORT & LT
-
4505072175 LH Pilot Ski 6.9 Ass'y. Includes 4 to 5, SPORT & LTLH Pilot Ski 6.9 Ass'y. Includes 4 to 5, SPORT & LT
-
5505071781 Cushion. SPORT & LTCushion. SPORT & LT
-
6505071812 Retainer. SPORT & LTRetainer. SPORT & LT
-
7505070963 Handle, Black. SPORT & LTHandle, Black. SPORT & LT
-
8505072133 Retainer. SPORT & LTRetainer. SPORT & LT
-
9860200141 Carbide Kit. Includes 9 to 10, SPORT & LTCarbide Kit. Includes 9 to 10, SPORT & LT
-
10233281414 Hex. Flanged Elastic Nut M8. SPORT & LTHex. Flanged Elastic Nut M8. SPORT & LT
-
11861805509 Carbide Kit. Includes 11 to 13, STDCarbide Kit. Includes 11 to 13, STD
-
12233281414 Hex. Flanged Elastic Nut M8. STDHex. Flanged Elastic Nut M8. STD
-
13234082410 Flat Washer 8 mm. STDFlat Washer 8 mm. STD
-
14230003044 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
15506133300 SpacerSpacer
-
16732900049 Washer. SPORT & LTWasher. SPORT & LT
-
17732900049 Washer. STDWasher. STD
-
18233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
19505072593 Ski Stopper. STDSki Stopper. STD
-
20505072594 Ski Stopper. SPORT & LTSki Stopper. SPORT & LT
-
21505072778 Ski LegSki Leg
-
22505072579 SpacerSpacer
-
23505072894 Module Ass'y. Includes 23 to 26Module Ass'y. Includes 23 to 26
-
24414803100 Upper CushionUpper Cushion
-
25414803200 Lower CushionLower Cushion
-
26408200700 Grease FittingGrease Fitting
-
27505072696 Seal OilSeal Oil
-
28505072698 CirclipCirclip
-
29505072555 ShockShock
-
30505072578 WasherWasher
-
31505072557 SpringSpring
-
32505072619 Spring StopperSpring Stopper
-
33572034500 CushionCushion
-
34570025800 StopperStopper
-
35505072798 Steering ArmSteering Arm
-
36505072581 SpacerSpacer
-
37505072539 Suspension CoverSuspension Cover
-
38505072550 RH Suspension CoverRH Suspension Cover
-
39205082044 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
40233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
41293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
