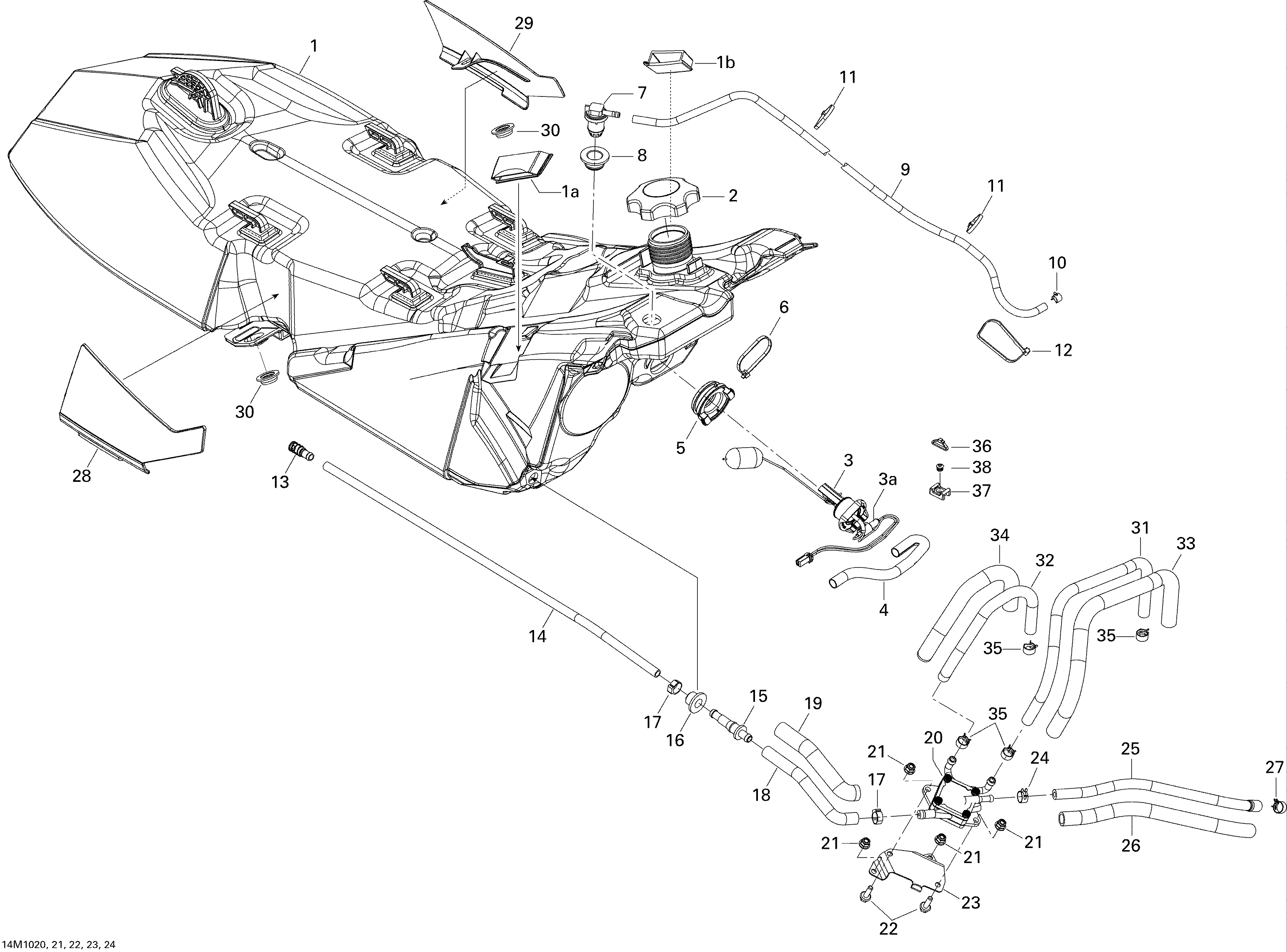

02- Fuel System для BRP Ski-Doo Skandic Tundra, STD, SPORT, LT - 2010
-
№АртикулНазвание
-
1513033574 Fuel TankFuel Tank
-
1a513033471 RH Panel ClipRH Panel Clip
-
1b513033472 LH Panel ClipLH Panel Clip
-
2513033025 Fuel Tank CapFuel Tank Cap
-
3513033605 Fuel SensorFuel Sensor
-
3a710001995 Fuse 0.5AFuse 0.5A
-
4415079900 Tubing 10 mmTubing 10 mm
-
5513033606 GrommetGrommet
-
6293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
7513033188 Check ValveCheck Valve
-
8513033596 GrommetGrommet
-
9415080200 Hose, Polyurethane. <>TUNDRAHose, Polyurethane. <>TUNDRA
-
9415080200 Hose, Polyurethane. TUNDRAHose, Polyurethane. TUNDRA
-
10414554800 Spring Clamp. <>TUNDRASpring Clamp. <>TUNDRA
-
11414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
12414115200 Tie-Rap 180 mm. TUNDRATie-Rap 180 mm. TUNDRA
-
13414872100 Fuel FilterFuel Filter
-
14513033332 HoseHose
-
15414872700 Male ConnectorMale Connector
-
16513033435 GrommetGrommet
-
17293650053 Crimp ClampCrimp Clamp
-
18513033499 Formed HoseFormed Hose
-
19415080000 Tubing 16 mmTubing 16 mm
-
20403901813 Fuel PumpFuel Pump
-
21233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
22207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
23513033543 Pump BracketPump Bracket
-
24414415200 Universal Spring ClampUniversal Spring Clamp
-
25513033553 Formed HoseFormed Hose
-
26415080000 Tubing 16 mmTubing 16 mm
-
27513033029 Spring ClampSpring Clamp
-
28513033418 RH Cap. <>GTXRH Cap. <>GTX
-
29513033419 LH Cap. <>GTXLH Cap. <>GTX
-
30513033326 Shoulder BushingShoulder Bushing
-
31415129492 HoseHose
-
32415129492 HoseHose
-
33415080000 Tubing 16 mmTubing 16 mm
-
34415080000 Tubing 16 mmTubing 16 mm
-
35513033029 Spring ClampSpring Clamp
-
36293750031 Tie Rap MountTie Rap Mount
-
37293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
38390402000 Pop Rivet 3/16''Pop Rivet 3/16''
