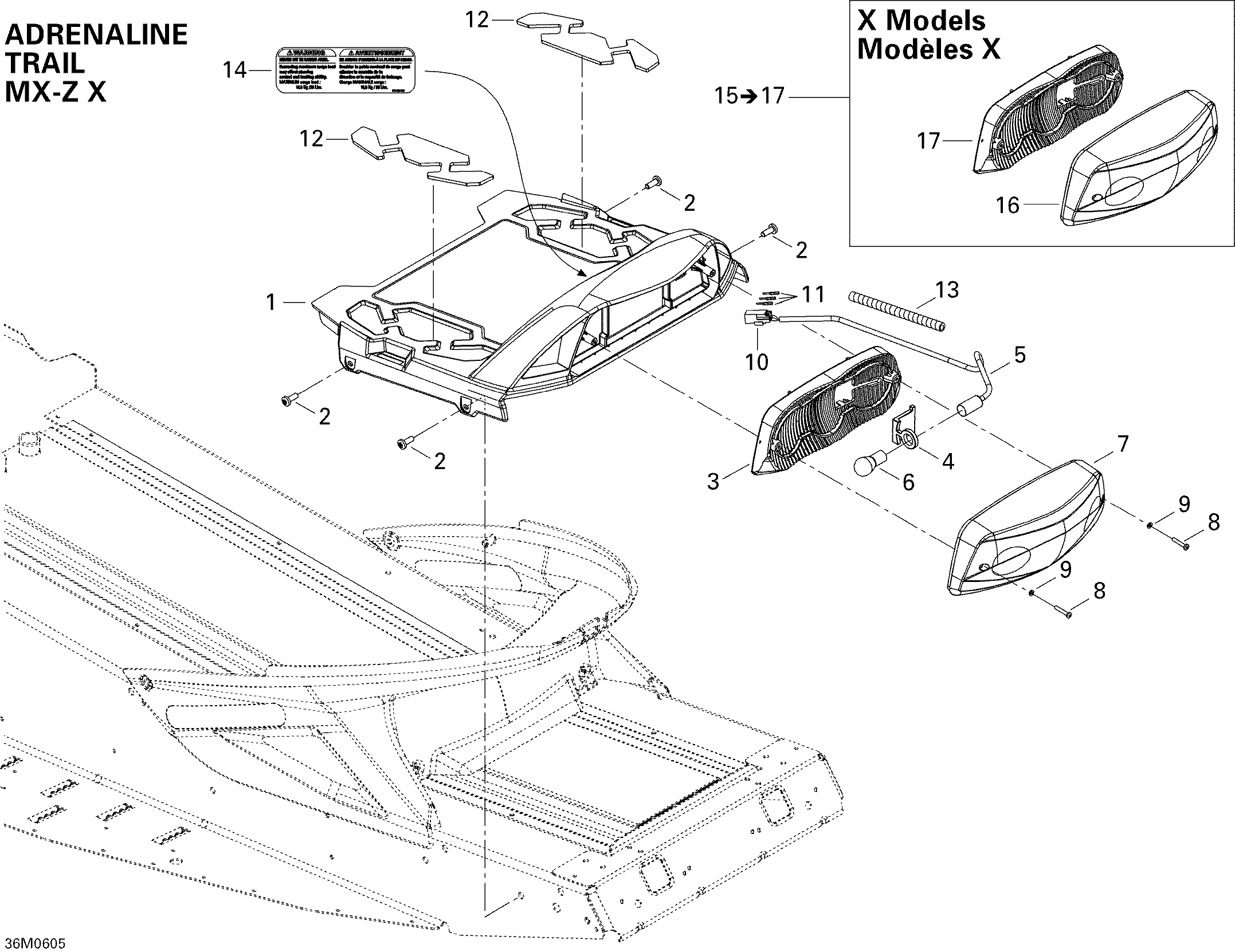

09- Luggage Rack 800 для BRP Ski-Doo MX Z 800 HO Adrenaline & X - 2006
-
№АртикулНазвание
-
1511000434 Luggage RackLuggage Rack
-
2250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
3510004442 ReflectorReflector
-
4511000431 Bulb SupportBulb Support
-
5511000465 Bulb SocketBulb Socket
-
6410504100 Tail Lamp BulbTail Lamp Bulb
-
7511000315 Lens. 500 Trail & 500/600/800 AdrenalineLens. 500 Trail & 500/600/800 Adrenaline
-
8209632580 Phillips Tapping Screw 3.9 X 25Phillips Tapping Screw 3.9 X 25
-
9414516400 WasherWasher
-
10515175494 Male Terminal Housing, 3 CircuitsMale Terminal Housing, 3 Circuits
-
11515175232 Male TerminalMale Terminal
-
12520000481 Rear CarpetRear Carpet
-
13515175442 Tubing, 6 mmTubing, 6 mm
-
14516002960 Maximum Cargo Load LabelMaximum Cargo Load Label
-
15861509300 Lens And Reflector Kit. 800 X, Includes 15 to 17Lens And Reflector Kit. 800 X, Includes 15 to 17
-
17510004442 Reflector. 800 XReflector. 800 X
