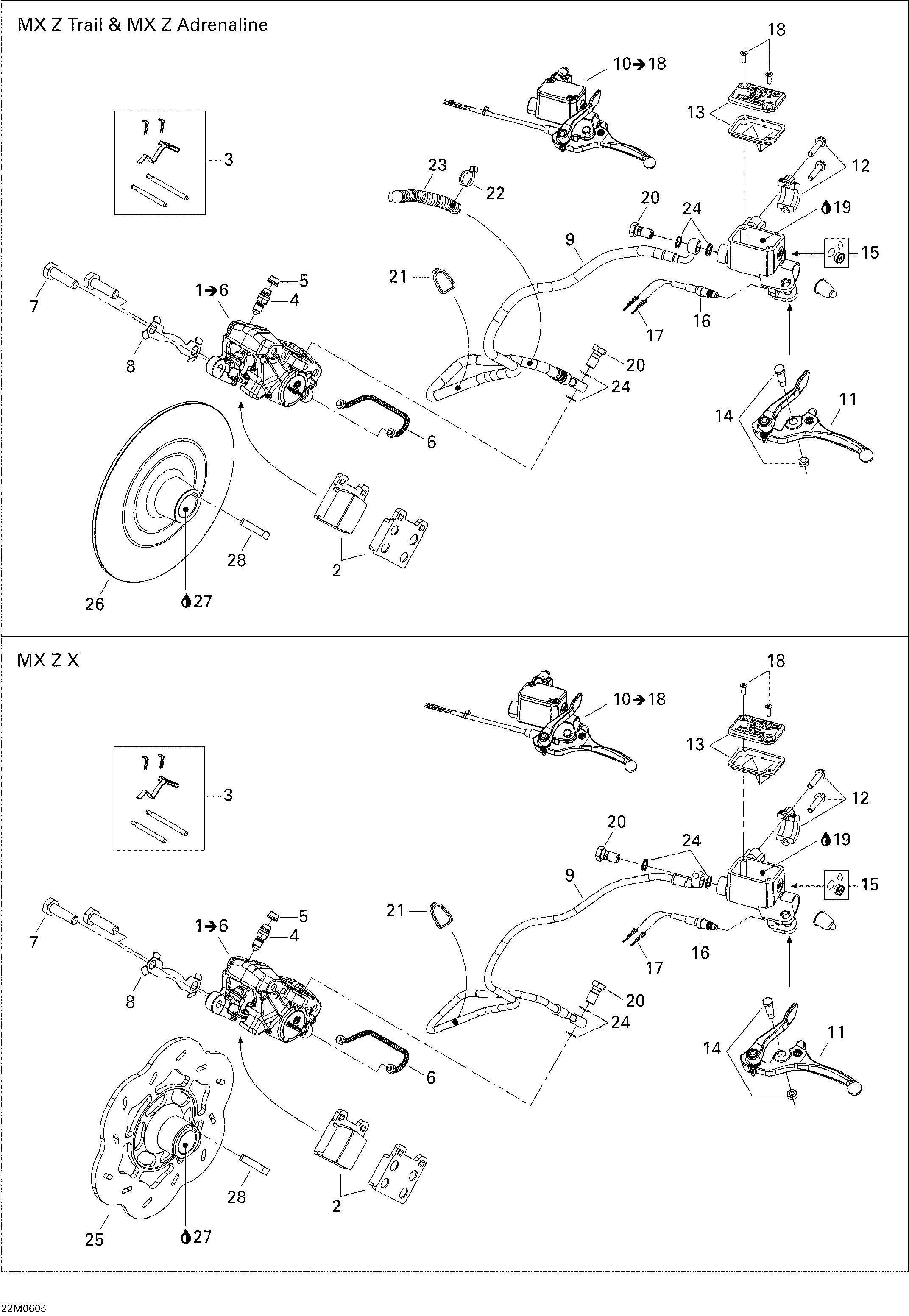

06- Hydraulic Brake 800HO для BRP Ski-Doo MX Z 800 HO Adrenaline & X - 2006
-
№АртикулНазвание
-
1507032414 Caliper. Includes 1 to 6 / XCaliper. Includes 1 to 6 / X
-
1507032415 Caliper. Includes 1 to 6 / Trail & AdrenalineCaliper. Includes 1 to 6 / Trail & Adrenaline
-
2415084600 Brake Pad KitBrake Pad Kit
-
3415128865 Kit (pins, Retainers, Spring)Kit (pins, Retainers, Spring)
-
4414989800 Bleeder ScrewBleeder Screw
-
5414989700 BootBoot
-
6414989900 Rigid TubingRigid Tubing
-
7207103544 Hex Screw M10 X 35Hex Screw M10 X 35
-
8507032316 Locking TabLocking Tab
-
9507032385 Hose. XHose. X
-
9507032429 Hose. Trail & AdrenalineHose. Trail & Adrenaline
-
10507032407 Master Cylinder. Includes 10 to 18 / XMaster Cylinder. Includes 10 to 18 / X
-
10507032422 Master Cylinder. Includes 10 to 18 / Trail & AdrenalineMaster Cylinder. Includes 10 to 18 / Trail & Adrenaline
-
11507032423 Brake Lever Ass'yBrake Lever Ass'y
-
12415029800 Clamp Ass'YClamp Ass'Y
-
13415029900 CapCap
-
14415030000 Pin Ass'YPin Ass'Y
-
15414990600 WindowWindow
-
16507032366 MicroswitchMicroswitch
-
17515175232 Male TerminalMale Terminal
-
18216141260 Screw M4 X 12Screw M4 X 12
-
19293600063 Brake Fluid, SRF (DOT 4)Brake Fluid, SRF (DOT 4)
-
19293600062 Brake Fluid, GTLMA (DOT 4) 12 X 354 mlBrake Fluid, GTLMA (DOT 4) 12 X 354 ml
-
20414920500 Banjo BoltBanjo Bolt
-
21293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
22293750002 Tie-Rap 130 mm. Trail & AdrenalineTie-Rap 130 mm. Trail & Adrenaline
-
23415079900 Tubing, 10 mm. Trail & AdrenalineTubing, 10 mm. Trail & Adrenaline
-
24414920600 WasherWasher
-
25507032395 Brake Disk. XBrake Disk. X
-
26507032403 Brake Disk. Trail & AdrenalineBrake Disk. Trail & Adrenaline
-
27293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
28507021300 KeyKey
