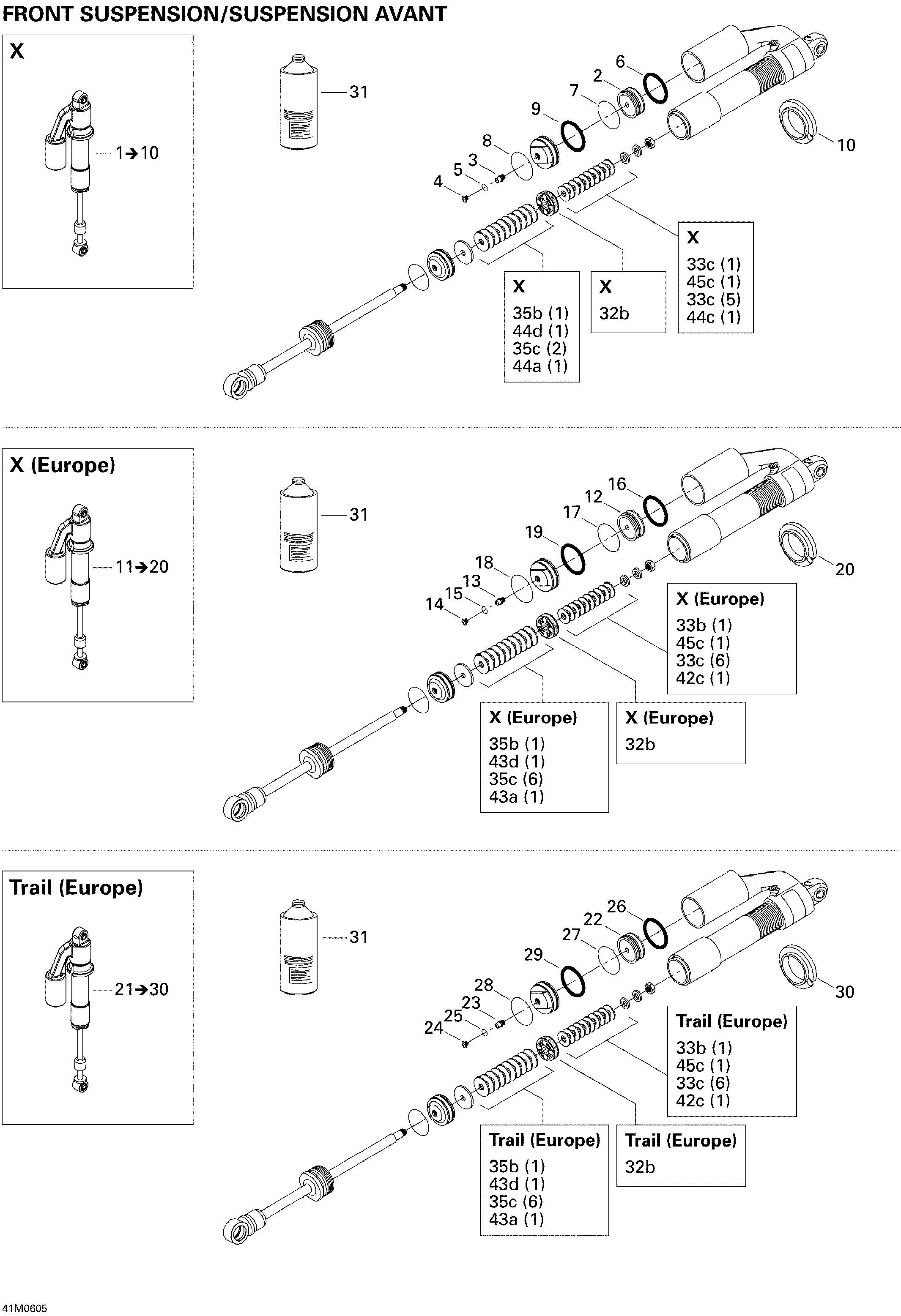

07- Take Apart Shock, Front 800 X для BRP Ski-Doo MX Z 800 HO Adrenaline & X - 2006
-
№АртикулНазвание
-
1505071204 RH Front Shock. Includes 1 to 10 / 800 XRH Front Shock. Includes 1 to 10 / 800 X
-
1505071205 LH Front Shock. Includes 1 to 10 / 800 XLH Front Shock. Includes 1 to 10 / 800 X
-
2415093812 Free Piston. 800 XFree Piston. 800 X
-
3505070398 Air Valve Ring. 800 XAir Valve Ring. 800 X
-
4505070399 Screw. 800 XScrew. 800 X
-
5505070400 O-Ring. 800 XO-Ring. 800 X
-
6415093807 O-Ring. 800 XO-Ring. 800 X
-
7415093806 Piston Ring. 800 XPiston Ring. 800 X
-
8415093805 Stop Ring. 800 XStop Ring. 800 X
-
9415093804 O-Ring. 800 XO-Ring. 800 X
-
10505071167 Spring Plastic Seat. 800 XSpring Plastic Seat. 800 X
-
11505071949 RH Front Shock. Includes 11 to 20 / 800 X (Europe)RH Front Shock. Includes 11 to 20 / 800 X (Europe)
-
11505071950 LH Front Shock. Includes 11 to 20 / 800 X (Europe)LH Front Shock. Includes 11 to 20 / 800 X (Europe)
-
12415093812 Free Piston. 800 X (Europe)Free Piston. 800 X (Europe)
-
13505070398 Air Valve Ring. 800 X (Europe)Air Valve Ring. 800 X (Europe)
-
14505070399 Screw. 800 X (Europe)Screw. 800 X (Europe)
-
15505070400 O-Ring. 800 X (Europe)O-Ring. 800 X (Europe)
-
16415093807 O-Ring. 800 X (Europe)O-Ring. 800 X (Europe)
-
17415093806 Piston Ring. 800 X (Europe)Piston Ring. 800 X (Europe)
-
18415093805 Stop Ring. 800 X (Europe)Stop Ring. 800 X (Europe)
-
19415093804 O-Ring. 800 X (Europe)O-Ring. 800 X (Europe)
-
20505071167 Spring Plastic Seat. 800 X (Europe)Spring Plastic Seat. 800 X (Europe)
-
31293600035 Shock Oil, 1 LiterShock Oil, 1 Liter
-
32a414888304 Piston (C36)Piston (C36)
-
32c414888305 Piston (2 X 0.3-2) (C36)Piston (2 X 0.3-2) (C36)
-
32e414888306 Piston (2 X 0.3-4) (C36)Piston (2 X 0.3-4) (C36)
-
32g414888307 Piston (2 X 0.3-6) (C36)Piston (2 X 0.3-6) (C36)
-
33a415039100 Leaf Valve O30 X 0.254 (C36)Leaf Valve O30 X 0.254 (C36)
-
33b414888318 Leaf Valve O30 X 0.203 (C36)Leaf Valve O30 X 0.203 (C36)
-
33c414888319 Leaf Valve O30 X 0.152 (C36)Leaf Valve O30 X 0.152 (C36)
-
34b414888320 Leaf Valve O28 X 0.203 (C36)Leaf Valve O28 X 0.203 (C36)
-
34c414888321 Leaf Valve O28 X 0.152 (C36)Leaf Valve O28 X 0.152 (C36)
-
35a415039000 Leaf Valve O26 X 0.254 (C36)Leaf Valve O26 X 0.254 (C36)
-
35b414888322 Leaf Valve O26 X 0.203 (C36)Leaf Valve O26 X 0.203 (C36)
-
35c414888323 Leaf Valve O26 X 0.152 (C36)Leaf Valve O26 X 0.152 (C36)
-
37b414888324 Leaf Valve O22 X 0.203 (C36)Leaf Valve O22 X 0.203 (C36)
-
37c414888325 Leaf Valve O22 X 0.152 (C36)Leaf Valve O22 X 0.152 (C36)
-
38d414888340 Leaf Valve O21 X 0.114 (C36)Leaf Valve O21 X 0.114 (C36)
-
39b414888326 Leaf Valve O20 X 0.203 (C36)Leaf Valve O20 X 0.203 (C36)
-
39c414888327 Leaf Valve O20 X 0.152 (C36)Leaf Valve O20 X 0.152 (C36)
-
39D414888328 Leaf Valve O20 X 0.114 (C36)Leaf Valve O20 X 0.114 (C36)
-
41b414888329 Leaf Valve O18 X 0.203 (C36)Leaf Valve O18 X 0.203 (C36)
-
41c414888330 Leaf Valve O18 X 0.152 (C36)Leaf Valve O18 X 0.152 (C36)
-
43a414888331 Leaf Valve O16 X 0.254 (C36)Leaf Valve O16 X 0.254 (C36)
-
43b414888332 Leaf Valve O16 X 0.203 (C36)Leaf Valve O16 X 0.203 (C36)
-
43c414888333 Leaf Valve O16 X 0.152 (C36)Leaf Valve O16 X 0.152 (C36)
-
43d415038900 Leaf Valve O16 X 0.114 (C36)Leaf Valve O16 X 0.114 (C36)
-
44a414888334 Leaf Valve O15 X 0.254 (C36)Leaf Valve O15 X 0.254 (C36)
-
44b414888335 Leaf Valve O15 X 0.203 (C36)Leaf Valve O15 X 0.203 (C36)
-
44C414888336 Leaf Valve O15 X 0.152 (C36)Leaf Valve O15 X 0.152 (C36)
-
44D414888337 Leaf Valve O15 X 0.114 (C36)Leaf Valve O15 X 0.114 (C36)
-
47a503189538 Leaf Valve O12 X 0.254 (C36)Leaf Valve O12 X 0.254 (C36)
-
47b414888338 Leaf Valve O12 X 0.203 (C36)Leaf Valve O12 X 0.203 (C36)
-
47c414888339 Leaf Valve O12 X 0.152 (C36)Leaf Valve O12 X 0.152 (C36)
-
47d415038800 Leaf Valve O12 X 0.114 (C36)Leaf Valve O12 X 0.114 (C36)
