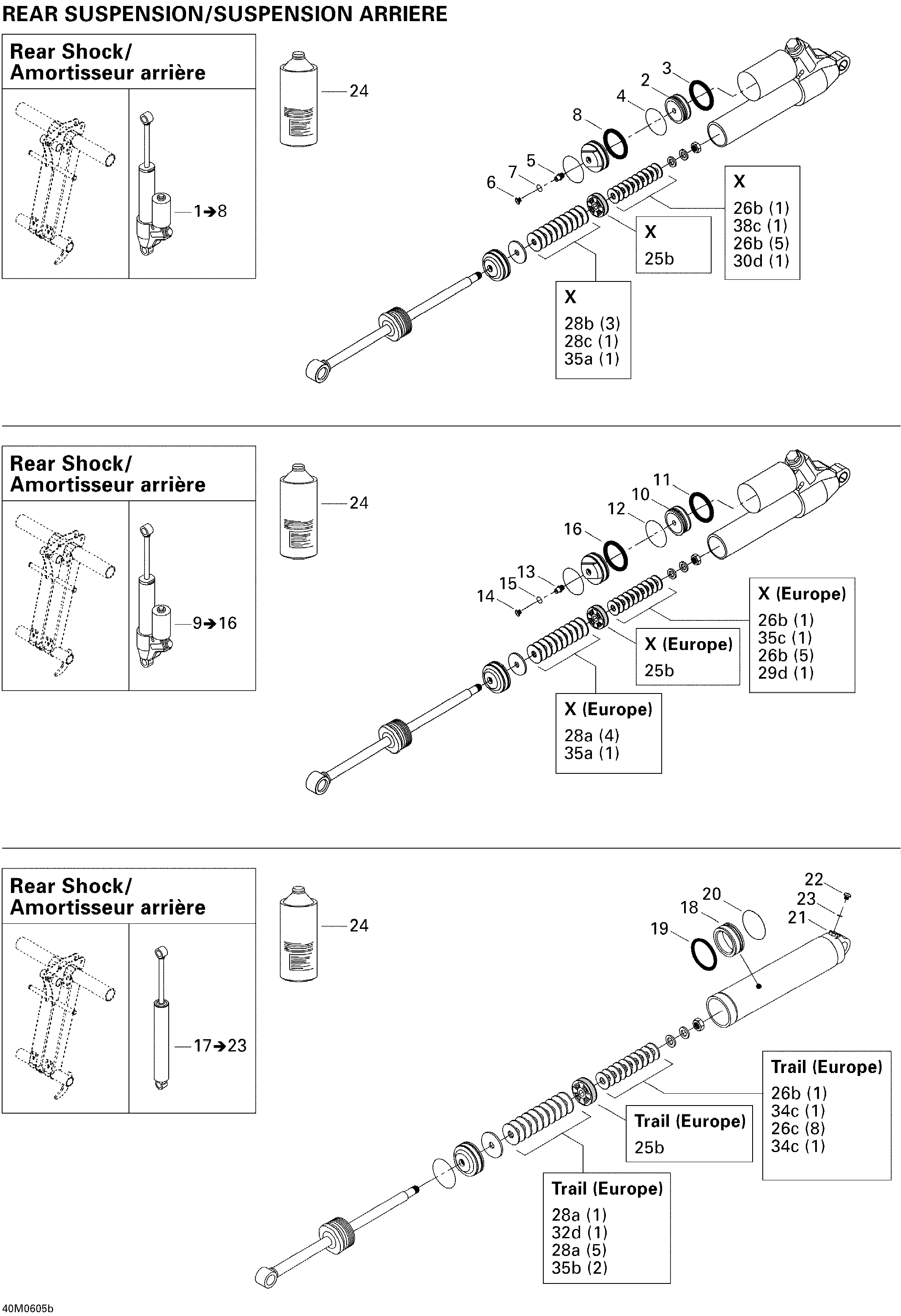

08- Take Apart Shock, Rear 2 (800) для BRP Ski-Doo MX Z 800 HO Adrenaline & X - 2006

  • №
    Артикул
    Название
  • 1
    503191204 Rear Shock. Includes 1 to 8 / 800 X
    Rear Shock. Includes 1 to 8 / 800 X
  • 2
    415093812 Free Piston. 800 X
    Free Piston. 800 X
  • 3
    415093807 O-Ring. 800 X
    O-Ring. 800 X
  • 4
    415093806 Piston Ring. 800 X
    Piston Ring. 800 X
  • 5
    505070398 Air Valve Ring. 800 X
    Air Valve Ring. 800 X
  • 6
    505070399 Screw. 800 X
    Screw. 800 X
  • 7
    505070400 O-Ring. 800 X
    O-Ring. 800 X
  • 8
    415093804 O-Ring. 800 X
    O-Ring. 800 X
  • 9
    503191221 Rear Shock. Includes 9 to 16 / 800 X (Europe)
    Rear Shock. Includes 9 to 16 / 800 X (Europe)
  • 10
    415093812 Free Piston. 800 X (Europe)
    Free Piston. 800 X (Europe)
  • 11
    415093807 O-Ring. 800 X (Europe)
    O-Ring. 800 X (Europe)
  • 12
    415093806 Piston Ring. 800 X (Europe)
    Piston Ring. 800 X (Europe)
  • 13
    505070398 Air Valve Ring. 800 X (Europe)
    Air Valve Ring. 800 X (Europe)
  • 14
    505070399 Screw. 800 X (Europe)
    Screw. 800 X (Europe)
  • 15
    505070400 O-Ring. 800 X (Europe)
    O-Ring. 800 X (Europe)
  • 16
    415093804 O-Ring. 800 X (Europe)
    O-Ring. 800 X (Europe)
  • 24
    293600035 Shock Oil, 1 Liter
    Shock Oil, 1 Liter
  • 25a
    414888304 Piston (C36)
    Piston (C36)
  • 25c
    414888305 Piston (2 X 0.3-2) (C36)
    Piston (2 X 0.3-2) (C36)
  • 25e
    414888306 Piston (2 X 0.3-4) (C36)
    Piston (2 X 0.3-4) (C36)
  • 25g
    414888307 Piston (2 X 0.3-6) (C36)
    Piston (2 X 0.3-6) (C36)
  • 26a
    415039100 Leaf Valve O30 X 0.254 (C36)
    Leaf Valve O30 X 0.254 (C36)
  • 26b
    414888318 Leaf Valve O30 X 0.203 (C36)
    Leaf Valve O30 X 0.203 (C36)
  • 26c
    414888319 Leaf Valve O30 X 0.152 (C36)
    Leaf Valve O30 X 0.152 (C36)
  • 27b
    414888320 Leaf Valve O28 X 0.203 (C36)
    Leaf Valve O28 X 0.203 (C36)
  • 27C
    414888321 Leaf Valve O28 X 0.152 (C36)
    Leaf Valve O28 X 0.152 (C36)
  • 28a
    415039000 Leaf Valve O26 X 0.254 (C36)
    Leaf Valve O26 X 0.254 (C36)
  • 28b
    414888322 Leaf Valve O26 X 0.203 (C36)
    Leaf Valve O26 X 0.203 (C36)
  • 28c
    414888323 Leaf Valve O26 X 0.152 (C36)
    Leaf Valve O26 X 0.152 (C36)
  • 30b
    414888324 Leaf Valve O22 X 0.203 (C36)
    Leaf Valve O22 X 0.203 (C36)
  • 30c
    414888325 Leaf Valve O22 X 0.152 (C36)
    Leaf Valve O22 X 0.152 (C36)
  • 31d
    414888340 Leaf Valve O21 X 0.114 (C36)
    Leaf Valve O21 X 0.114 (C36)
  • 32b
    414888326 Leaf Valve O20 X 0.203 (C36)
    Leaf Valve O20 X 0.203 (C36)
  • 32c
    414888327 Leaf Valve O20 X 0.152 (C36)
    Leaf Valve O20 X 0.152 (C36)
  • 32d
    414888328 Leaf Valve O20 X 0.114 (C36)
    Leaf Valve O20 X 0.114 (C36)
  • 34b
    414888329 Leaf Valve O18 X 0.203 (C36)
    Leaf Valve O18 X 0.203 (C36)
  • 34c
    414888330 Leaf Valve O18 X 0.152 (C36)
    Leaf Valve O18 X 0.152 (C36)
  • 36a
    414888331 Leaf Valve O16 X 0.254 (C36)
    Leaf Valve O16 X 0.254 (C36)
  • 36b
    414888332 Leaf Valve O16 X 0.203 (C36)
    Leaf Valve O16 X 0.203 (C36)
  • 36c
    414888333 Leaf Valve O16 X 0.152 (C36)
    Leaf Valve O16 X 0.152 (C36)
  • 36d
    415038900 Leaf Valve O16 X 0.114 (C36)
    Leaf Valve O16 X 0.114 (C36)
  • 37a
    414888334 Leaf Valve O15 X 0.254 (C36)
    Leaf Valve O15 X 0.254 (C36)
  • 37b
    414888335 Leaf Valve O15 X 0.203 (C36)
    Leaf Valve O15 X 0.203 (C36)
  • 37c
    414888336 Leaf Valve O15 X 0.152 (C36)
    Leaf Valve O15 X 0.152 (C36)
  • 37D
    414888337 Leaf Valve O15 X 0.114 (C36)
    Leaf Valve O15 X 0.114 (C36)
  • 40a
    503189538 Leaf Valve O12 X 0.254 (C36)
    Leaf Valve O12 X 0.254 (C36)
  • 40b
    414888338 Leaf Valve O12 X 0.203 (C36)
    Leaf Valve O12 X 0.203 (C36)
  • 40c
    414888339 Leaf Valve O12 X 0.152 (C36)
    Leaf Valve O12 X 0.152 (C36)
  • 40d
    415038800 Leaf Valve O12 X 0.114 (C36)
    Leaf Valve O12 X 0.114 (C36)
