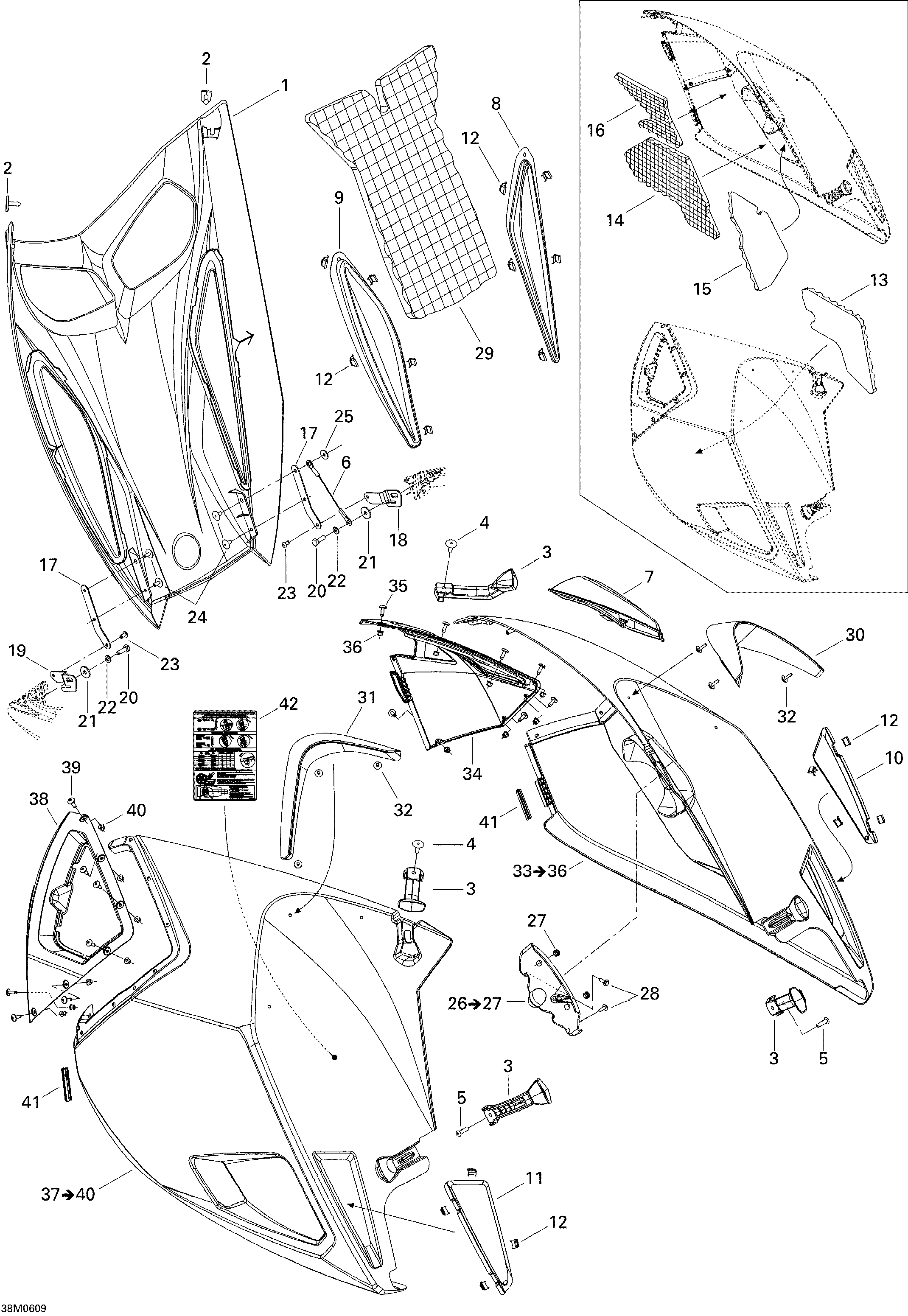

09- Hood для BRP Ski-Doo MX Z 1000 SDI Renegade X - 2006

  • №
    Артикул
    Название
  • 1
    517302788 Hood, Black, B-160
    Hood, Black, B-160
  • 2
    517302543 Pin
    Pin
  • 3
    517302448 Panel Latch
    Panel Latch
  • 4
    293150087 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 5
    390410100 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 6
    517302673 Retainer Cable
    Retainer Cable
  • 7
    517303434 Muffler Grill
    Muffler Grill
  • 8
    517302936 RH Hood Grill
    RH Hood Grill
  • 9
    517302937 LH Hood Grill
    LH Hood Grill
  • 10
    517303227 RH Panel Grill
    RH Panel Grill
  • 11
    517303228 LH Panel Grill
    LH Panel Grill
  • 12
    517302789 Clip
    Clip
  • 13
    517303392 LH Panel Foam
    LH Panel Foam
  • 14
    517303393 RH Panel Foam
    RH Panel Foam
  • 15
    517303394 RH Panel Foam
    RH Panel Foam
  • 16
    517303454 RH Panel Foam
    RH Panel Foam
  • 17
    517302544 Upper Half-Hinge
    Upper Half-Hinge
  • 18
    517302444 RH Lower Half-Hinge
    RH Lower Half-Hinge
  • 19
    517302445 LH Lower Half-Hinge
    LH Lower Half-Hinge
  • 20
    207161844 Hex Screw M6 X 18
    Hex Screw M6 X 18
  • 21
    224061121 Flat Washer
    Flat Washer
  • 22
    234161471 Lock Washer 6 mm
    Lock Washer 6 mm
  • 23
    390909200 Avex Rivet
    Avex Rivet
  • 24
    390406500 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 25
    517225900 Flat Washer
    Flat Washer
  • 26
    517303482 RH Console. Includes 26 to 27
    RH Console. Includes 26 to 27
  • 27
    275500241 Plug
    Plug
  • 28
    241151640 Hex Flanged Screw K50 X 16
    Hex Flanged Screw K50 X 16
  • 29
    517303493 Hood Foam
    Hood Foam
  • 30
    517303143 RH Air Deflector, Knees
    RH Air Deflector, Knees
  • 31
    517303142 LH Air Deflector, Knees
    LH Air Deflector, Knees
  • 32
    250000113 Screw M4 X 16, Type K-40
    Screw M4 X 16, Type K-40
  • 33
    517303361 RH Panel Ass'y. Includes 33 to 36, Black-Black Model
    RH Panel Ass'y. Includes 33 to 36, Black-Black Model
  • 33
    517303548 RH Panel Ass'y. Includes 33 to 36, Black-Yellow Model
    RH Panel Ass'y. Includes 33 to 36, Black-Yellow Model
  • 34
    517303106 RH Pannel Hub
    RH Pannel Hub
  • 35
    250000255 Torx Screw M5
    Torx Screw M5
  • 36
    250100058 Nylon Screw 10/32''
    Nylon Screw 10/32''
  • 37
    517303359 LH Panel Ass'y. Includes 37 to 40, Black-Black Model
    LH Panel Ass'y. Includes 37 to 40, Black-Black Model
  • 37
    517303550 LH Panel Ass'y. Includes 37 to 40, Black-Yellow Model
    LH Panel Ass'y. Includes 37 to 40, Black-Yellow Model
  • 38
    517303105 LH Pannel Hub
    LH Pannel Hub
  • 39
    250000255 Torx Screw M5
    Torx Screw M5
  • 40
    250100058 Nylon Screw 10/32''
    Nylon Screw 10/32''
  • 41
    517302823 Hinge Lock
    Hinge Lock
  • 42
    516002616 Decal, Suspension Adjustment
    Decal, Suspension Adjustment
