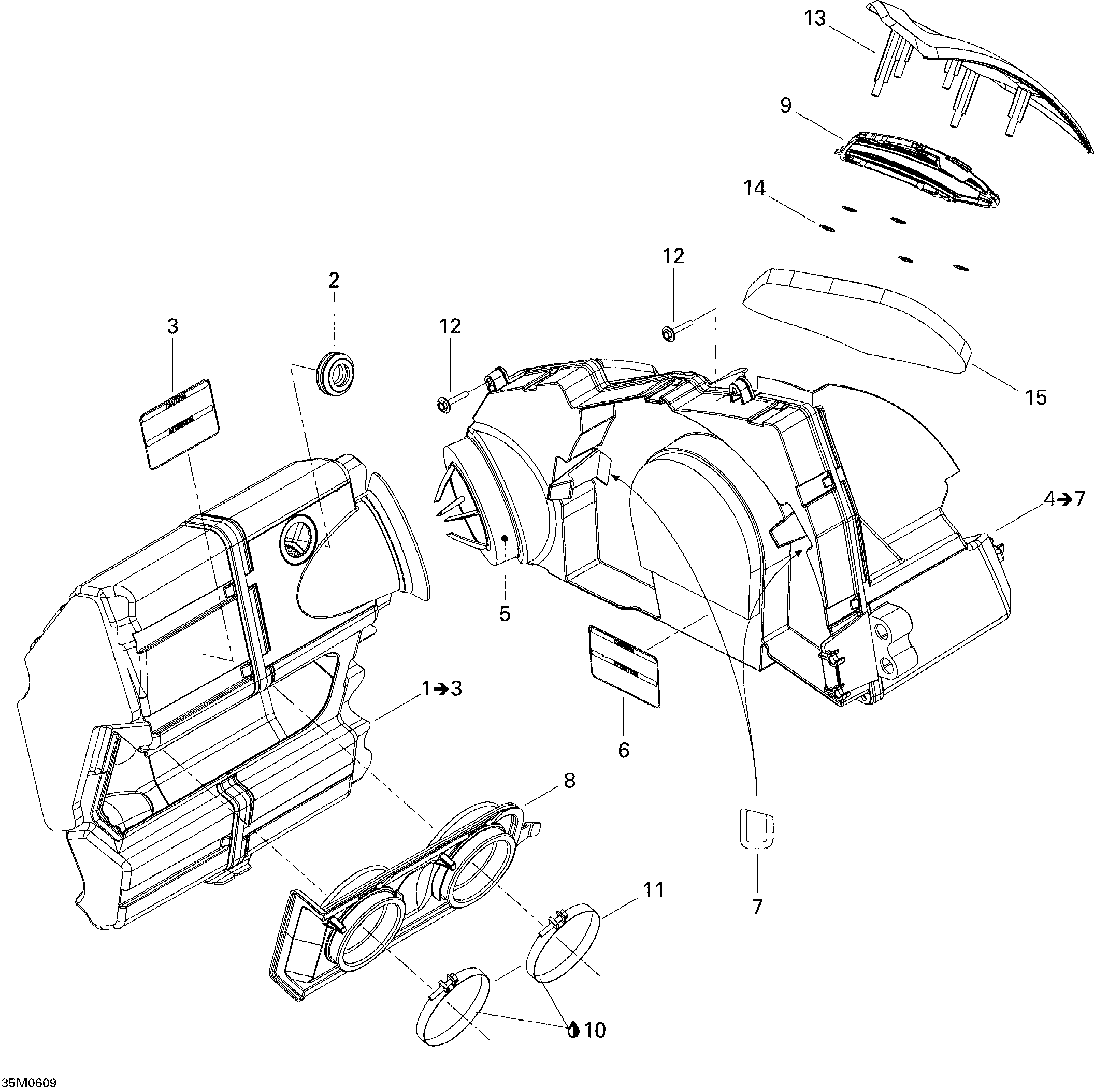

02- Air Intake System для BRP Ski-Doo MX Z 1000 SDI Renegade X - 2006

  • №
    Артикул
    Название
  • 1
    508000354 Primary Chamber Ass'y. Includes 1 to 3
    Primary Chamber Ass'y. Includes 1 to 3
  • 2
    570065500 Grommet
    Grommet
  • 3
    516002715 Caution Label, Air Intake
    Caution Label, Air Intake
  • 4
    508000519 Secondary Chamber Ass'y. Includes 4 to 7
    Secondary Chamber Ass'y. Includes 4 to 7
  • 5
    508000520 Foam
    Foam
  • 6
    516002715 Caution Label, Air Intake
    Caution Label, Air Intake
  • 7
    516001910 RH Protector Decal
    RH Protector Decal
  • 7
    516001911 LH Protector Decal
    LH Protector Decal
  • 8
    508000451 Adaptor Plate Ass'y
    Adaptor Plate Ass'y
  • 9
    508000506 Intake Filter
    Intake Filter
  • 10
    293600071 Semi-synthetic Oil (12 X 1 Liter)
    Semi-synthetic Oil (12 X 1 Liter)
  • 10
    293600072 Semi-synthetic Oil (3 X 4 Liters)
    Semi-synthetic Oil (3 X 4 Liters)
  • 10
    293600073 Semi-synthetic Oil (205 Liters)
    Semi-synthetic Oil (205 Liters)
  • 11
    508000346 Gemi Clamp
    Gemi Clamp
  • 12
    250000101 Screw M4 X 25
    Screw M4 X 25
  • 13
    508000461 Deflector
    Deflector
  • 14
    732610072 Push Nut
    Push Nut
  • 15
    508000367 Air Filter
    Air Filter
