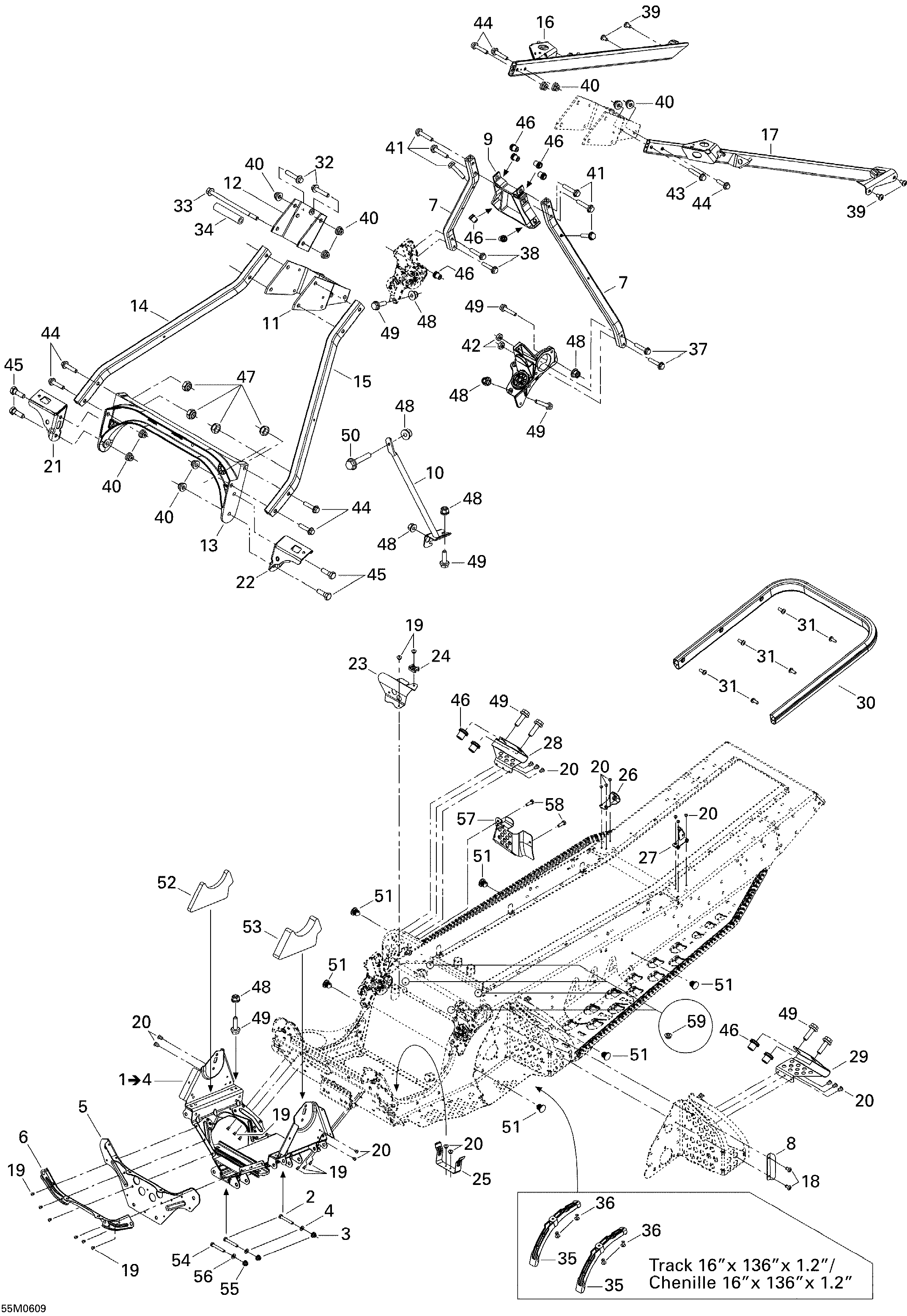

09- Frame and Components для BRP Ski-Doo MX Z 1000 SDI Renegade X - 2006

  • №
    Артикул
    Название
  • 1
    518323541 Front Member Ass'y. Includes 1 to 4
    Front Member Ass'y. Includes 1 to 4
  • 2
    207085544 Hex Screw M8 X 55
    Hex Screw M8 X 55
  • 3
    233281414 Elastic Flanged Nut M8
    Elastic Flanged Nut M8
  • 4
    234081410 Flat Washer 8 mm
    Flat Washer 8 mm
  • 5
    518324726 Front Plate
    Front Plate
  • 6
    518324727 Front Plate Reinforcement
    Front Plate Reinforcement
  • 7
    518324228 Handle Support
    Handle Support
  • 8
    518317504 Cable Protector
    Cable Protector
  • 9
    518323811 Handle Support Reinforcement
    Handle Support Reinforcement
  • 10
    518324080 Brace, Black
    Brace, Black
  • 11
    518323676 Attachment Bracket
    Attachment Bracket
  • 12
    518324046 Steering Column Support
    Steering Column Support
  • 13
    518324265 Upper Cross Member
    Upper Cross Member
  • 14
    518324285 RH Front Brace
    RH Front Brace
  • 15
    518324286 LH Front Brace
    LH Front Brace
  • 16
    518323352 RH Member
    RH Member
  • 17
    518323354 LH Member
    LH Member
  • 18
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 19
    390909100 Avex Rivet
    Avex Rivet
  • 20
    390909200 Avex Rivet
    Avex Rivet
  • 21
    518324148 RH Shock Bracket
    RH Shock Bracket
  • 22
    518324150 LH Shock Bracket
    LH Shock Bracket
  • 23
    518323584 Hose Support
    Hose Support
  • 24
    293750031 Tie Rap Mount
    Tie Rap Mount
  • 25
    518202100 Belt Guard Bracket
    Belt Guard Bracket
  • 26
    518323769 RH Bracket, Black
    RH Bracket, Black
  • 27
    518323770 LH Bracket, Black
    LH Bracket, Black
  • 28
    518323948 RH Toe Hold
    RH Toe Hold
  • 29
    518324392 LH Toe Hold
    LH Toe Hold
  • 30
    518323778 Rear Bumper
    Rear Bumper
  • 30
    518324829 Rear Bumper. Europe
    Rear Bumper. Europe
  • 31
    236282084 Hex Screw M8 X 20
    Hex Screw M8 X 20
  • 32
    207684044 Hex Flanged Screw M8 X 40
    Hex Flanged Screw M8 X 40
  • 33
    230684044 Hex. Flanged Screw M8 X 140
    Hex. Flanged Screw M8 X 140
  • 34
    518324048 Spacer
    Spacer
  • 35
    518324287 Front Radiator Protector. For Track 16''x136''x1.2''
    Front Radiator Protector. For Track 16''x136''x1.2''
  • 36
    390906800 Pop Rivet 3/16''. For Track 16''x136''x1.2''
    Pop Rivet 3/16''. For Track 16''x136''x1.2''
  • 37
    250000253 Flanged Hex. Screw M6 X 30
    Flanged Hex. Screw M6 X 30
  • 38
    207563044 Hex. Flanged Screw M6 X 30, Scotch Grip
    Hex. Flanged Screw M6 X 30, Scotch Grip
  • 39
    250000154 Torx Screw M8 X 13
    Torx Screw M8 X 13
  • 40
    233281414 Elastic Flanged Nut M8
    Elastic Flanged Nut M8
  • 41
    250000253 Flanged Hex. Screw M6 X 30
    Flanged Hex. Screw M6 X 30
  • 42
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 43
    207685044 Hex Flanged Screw M8 X 50
    Hex Flanged Screw M8 X 50
  • 44
    207683544 Hex Flanged Screw M8 X 35
    Hex Flanged Screw M8 X 35
  • 45
    207182544 Hex Screw M8 X 25
    Hex Screw M8 X 25
  • 46
    415107300 Insert
    Insert
  • 47
    232581414 Elastic Stop Nut M8
    Elastic Stop Nut M8
  • 48
    233261414 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 49
    207662044 Hex. Flanged Screw M6 x 20
    Hex. Flanged Screw M6 x 20
  • 50
    207663544 Hex Flanged Screw M6 X 35
    Hex Flanged Screw M6 X 35
  • 51
    518321954 Fastener Panel
    Fastener Panel
  • 52
    518324372 RH Front Foam
    RH Front Foam
  • 53
    518323007 LH Front Foam
    LH Front Foam
  • 54
    207085544 Hex Screw M8 X 55
    Hex Screw M8 X 55
  • 55
    233281414 Elastic Flanged Nut M8
    Elastic Flanged Nut M8
  • 56
    234081410 Flat Washer 8 mm
    Flat Washer 8 mm
  • 57
    518324701 Footrest Extension
    Footrest Extension
  • 58
    207661644 Hex Flanged Screw M6 X 16
    Hex Flanged Screw M6 X 16
  • 59
    390402400 Pop Rivet 3/16''. For Track 16''x136''x1.7''
    Pop Rivet 3/16''. For Track 16''x136''x1.7''
