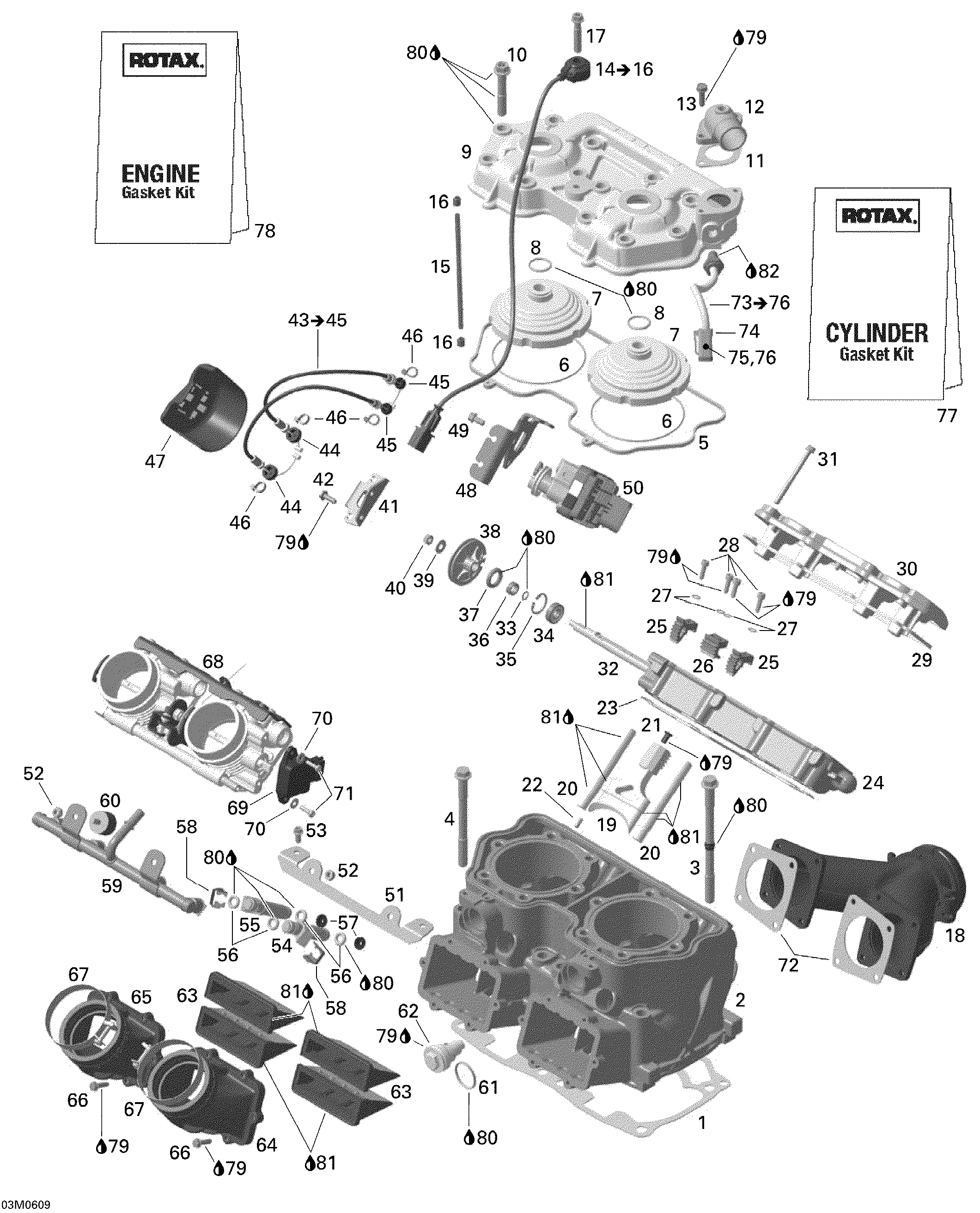

01- Cylinder and Cylinder Head для BRP Ski-Doo MX Z 1000 SDI Renegade X - 2006
-
№АртикулНазвание
-
1420630460 Gasket 1.0 mmGasket 1.0 mm
-
1420630461 Gasket 1.1 mmGasket 1.1 mm
-
1420630462 Gasket 1.2 mmGasket 1.2 mm
-
1420630463 Gasket 1.3 mmGasket 1.3 mm
-
2420613746 CylinderCylinder
-
3420641762 Hex Flanged Screw M10 X 150Hex Flanged Screw M10 X 150
-
4420641772 Hex Flanged Screw M10 X 115Hex Flanged Screw M10 X 115
-
5420630451 GasketGasket
-
6420630630 O-ringO-ring
-
7420613730 Combustion ChamberCombustion Chamber
-
8420430370 O-RingO-Ring
-
9420613720 Cylinder Head CoverCylinder Head Cover
-
10420940142 Torx Flange Screw M10 X 55Torx Flange Screw M10 X 55
-
11420850338 GasketGasket
-
12420822080 Bent Outlet SocketBent Outlet Socket
-
13420941250 Hex Tapping Screw M6 X 20Hex Tapping Screw M6 X 20
-
14420664035 Knock Sensor Ass'y. Includes 14 to 16Knock Sensor Ass'y. Includes 14 to 16
-
15420460010 TubeTube
-
16420960890 ClipClip
-
17420440862 Torx Flange Screw M8 X 35Torx Flange Screw M8 X 35
-
18420673150 Exhaust ManifoldExhaust Manifold
-
19420854730 Main Exhaust ValveMain Exhaust Valve
-
20420854740 Side Exhaust ValveSide Exhaust Valve
-
21420960390 StopperStopper
-
22420929650 Drive Pin 5 X 10Drive Pin 5 X 10
-
23420630690 GasketGasket
-
24420854761 Valve HousingValve Housing
-
25420834655 Drive GearDrive Gear
-
26420834650 Drive GearDrive Gear
-
27420939440 Spring WasherSpring Washer
-
28420840511 Socket Head Screw M5 X 16Socket Head Screw M5 X 16
-
29420631532 GasketGasket
-
30420854770 Valve CoverValve Cover
-
31420440602 Hex Flanged Screw M6 X 65Hex Flanged Screw M6 X 65
-
32420837700 Drive ShaftDrive Shaft
-
33420230990 O-ringO-ring
-
34420832830 Ball BearingBall Bearing
-
35420245480 Retaining RingRetaining Ring
-
36420947360 Distance SleeveDistance Sleeve
-
37420430102 O-ringO-ring
-
38420980710 Cable ActuatorCable Actuator
-
39420939450 Spring WasherSpring Washer
-
40232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
41420853052 Cable SupportCable Support
-
42420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
43420997023 Rave Cable Kit. Includes 43 to 45Rave Cable Kit. Includes 43 to 45
-
44420460350 CapCap
-
45420960773 CapCap
-
46420866718 Tie RapTie Rap
-
47420812630 Rave CoverRave Cover
-
48420851920 PlatePlate
-
49420841580 Hex Screw M6 X 8Hex Screw M6 X 8
-
50420889430 E-rave ActuatorE-rave Actuator
-
51420851893 Retaining PlateRetaining Plate
-
52232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
53420440142 Torx Flange Screw M6 X 12Torx Flange Screw M6 X 12
-
54420874485 Fuel InjectorsFuel Injectors
-
55420874480 Fuel InjectorFuel Injector
-
56420631220 O-RingO-Ring
-
57420874820 Protection CapProtection Cap
-
58420851800 ClipClip
-
59420874470 Fuel Rail Ass'yFuel Rail Ass'y
-
60420960065 StopperStopper
-
61420430060 O-ringO-ring
-
62420231135 Deco InsertDeco Insert
-
63420924790 Reed Valve Ass'yReed Valve Ass'y
-
64420667065 Carburator Socket, MagCarburator Socket, Mag
-
65420667060 Carburator Socket, PTOCarburator Socket, PTO
-
66420841555 Hex Tapping Screw M5 X 20Hex Tapping Screw M5 X 20
-
67420851810 ClampClamp
-
68420889194 Throttle BodyThrottle Body
-
69270000251 Position SensorPosition Sensor
-
70234041600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
71208641660 Phillips Screw M4 X 16Phillips Screw M4 X 16
-
72420630820 GasketGasket
-
73515176043 Temperature Sensor. Includes 73 to 76Temperature Sensor. Includes 73 to 76
-
74278000739 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
75278000632 Female TerminalFemale Terminal
-
76515175677 Lock Female, 4 CircuitsLock Female, 4 Circuits
-
77420891136 Cylinder Gasket SetCylinder Gasket Set
-
78420891131 Engine Gasket SetEngine Gasket Set
-
79293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
80413707000 Molykote 111, 150 GMolykote 111, 150 G
-
82293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
