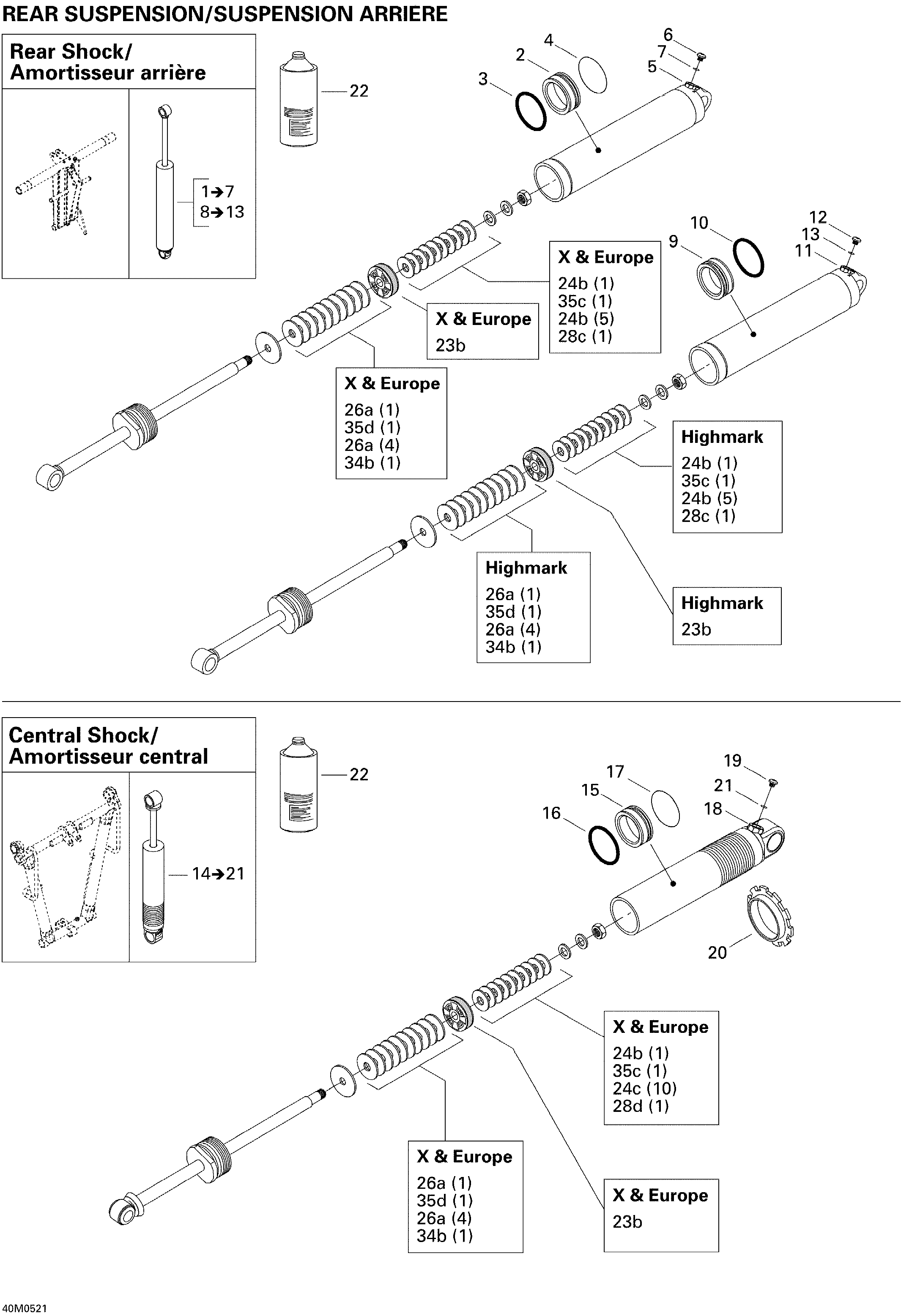

08- Take Apart Shock, Rear для BRP Ski-Doo Summit 1000 SDI, Highmark & Highmark X - 2005
-
№АртикулНазвание
-
1503190990 Rear Shock. Includes 1 to 7 / X & EuropeRear Shock. Includes 1 to 7 / X & Europe
-
2503189309 Free PistonFree Piston
-
3414888312 O-RingO-Ring
-
4503189308 Piston RingPiston Ring
-
5505070398 Air Valve RingAir Valve Ring
-
6505070399 ScrewScrew
-
7505070400 O-RingO-Ring
-
8503190834 Center Shock. Includes 8 to 13 / HighmarkCenter Shock. Includes 8 to 13 / Highmark
-
9415097900 Free PistonFree Piston
-
10414888312 O-RingO-Ring
-
11505070398 Air Valve RingAir Valve Ring
-
12505070399 ScrewScrew
-
13505070400 O-RingO-Ring
-
14503190662 Center Shock. Includes 14 to 21 / X & EuropeCenter Shock. Includes 14 to 21 / X & Europe
-
15503189309 Free PistonFree Piston
-
16414888312 O-RingO-Ring
-
17503189308 Piston RingPiston Ring
-
18505070398 Air Valve RingAir Valve Ring
-
19505070399 ScrewScrew
-
20414888316 Spring CollarSpring Collar
-
21505070400 O-RingO-Ring
-
22293600035 Shock Oil, 1 LiterShock Oil, 1 Liter
-
23a414888304 Piston (C36)Piston (C36)
-
23C414888305 Piston (2 X 0.3-2) (C36)Piston (2 X 0.3-2) (C36)
-
23E414888306 Piston (2 X 0.3-4) (C36)Piston (2 X 0.3-4) (C36)
-
23g414888307 Piston (2 X 0.3-6) (C36)Piston (2 X 0.3-6) (C36)
-
24a415039100 Leaf Valve O30 X 0.254 (C36)Leaf Valve O30 X 0.254 (C36)
-
24b414888318 Leaf Valve O30 X 0.203 (C36)Leaf Valve O30 X 0.203 (C36)
-
24c414888319 Leaf Valve O30 X 0.152 (C36)Leaf Valve O30 X 0.152 (C36)
-
25b414888320 Leaf Valve O28 X 0.203 (C36)Leaf Valve O28 X 0.203 (C36)
-
25c414888321 Leaf Valve O28 X 0.152 (C36)Leaf Valve O28 X 0.152 (C36)
-
26a415039000 Leaf Valve O26 X 0.254 (C36)Leaf Valve O26 X 0.254 (C36)
-
26b414888322 Leaf Valve O26 X 0.203 (C36)Leaf Valve O26 X 0.203 (C36)
-
26c414888323 Leaf Valve O26 X 0.152 (C36)Leaf Valve O26 X 0.152 (C36)
-
28b414888324 Leaf Valve O22 X 0.203 (C36)Leaf Valve O22 X 0.203 (C36)
-
28c414888325 Leaf Valve O22 X 0.152 (C36)Leaf Valve O22 X 0.152 (C36)
-
29D414888340 Leaf Valve O21 X 0.114 (C36)Leaf Valve O21 X 0.114 (C36)
-
30b414888326 Leaf Valve O20 X 0.203 (C36)Leaf Valve O20 X 0.203 (C36)
-
30c414888327 Leaf Valve O20 X 0.152 (C36)Leaf Valve O20 X 0.152 (C36)
-
30d414888328 Leaf Valve O20 X 0.114 (C36)Leaf Valve O20 X 0.114 (C36)
-
32b414888329 Leaf Valve O18 X 0.203 (C36)Leaf Valve O18 X 0.203 (C36)
-
32c414888330 Leaf Valve O18 X 0.152 (C36)Leaf Valve O18 X 0.152 (C36)
-
34a414888331 Leaf Valve O16 X 0.254 (C36)Leaf Valve O16 X 0.254 (C36)
-
34b414888332 Leaf Valve O16 X 0.203 (C36)Leaf Valve O16 X 0.203 (C36)
-
34c414888333 Leaf Valve O16 X 0.152 (C36)Leaf Valve O16 X 0.152 (C36)
-
34d415038900 Leaf Valve O16 X 0.114 (C36)Leaf Valve O16 X 0.114 (C36)
-
35a414888334 Leaf Valve O15 X 0.254 (C36)Leaf Valve O15 X 0.254 (C36)
-
35b414888335 Leaf Valve O15 X 0.203 (C36)Leaf Valve O15 X 0.203 (C36)
-
35c414888336 Leaf Valve O15 X 0.152 (C36)Leaf Valve O15 X 0.152 (C36)
-
35d414888337 Leaf Valve O15 X 0.114 (C36)Leaf Valve O15 X 0.114 (C36)
-
38a503189538 Leaf Valve O12 X 0.254 (C36)Leaf Valve O12 X 0.254 (C36)
-
38b414888338 Leaf Valve O12 X 0.203 (C36)Leaf Valve O12 X 0.203 (C36)
-
38c414888339 Leaf Valve O12 X 0.152 (C36)Leaf Valve O12 X 0.152 (C36)
-
38d415038800 Leaf Valve O12 X 0.114 (C36)Leaf Valve O12 X 0.114 (C36)
