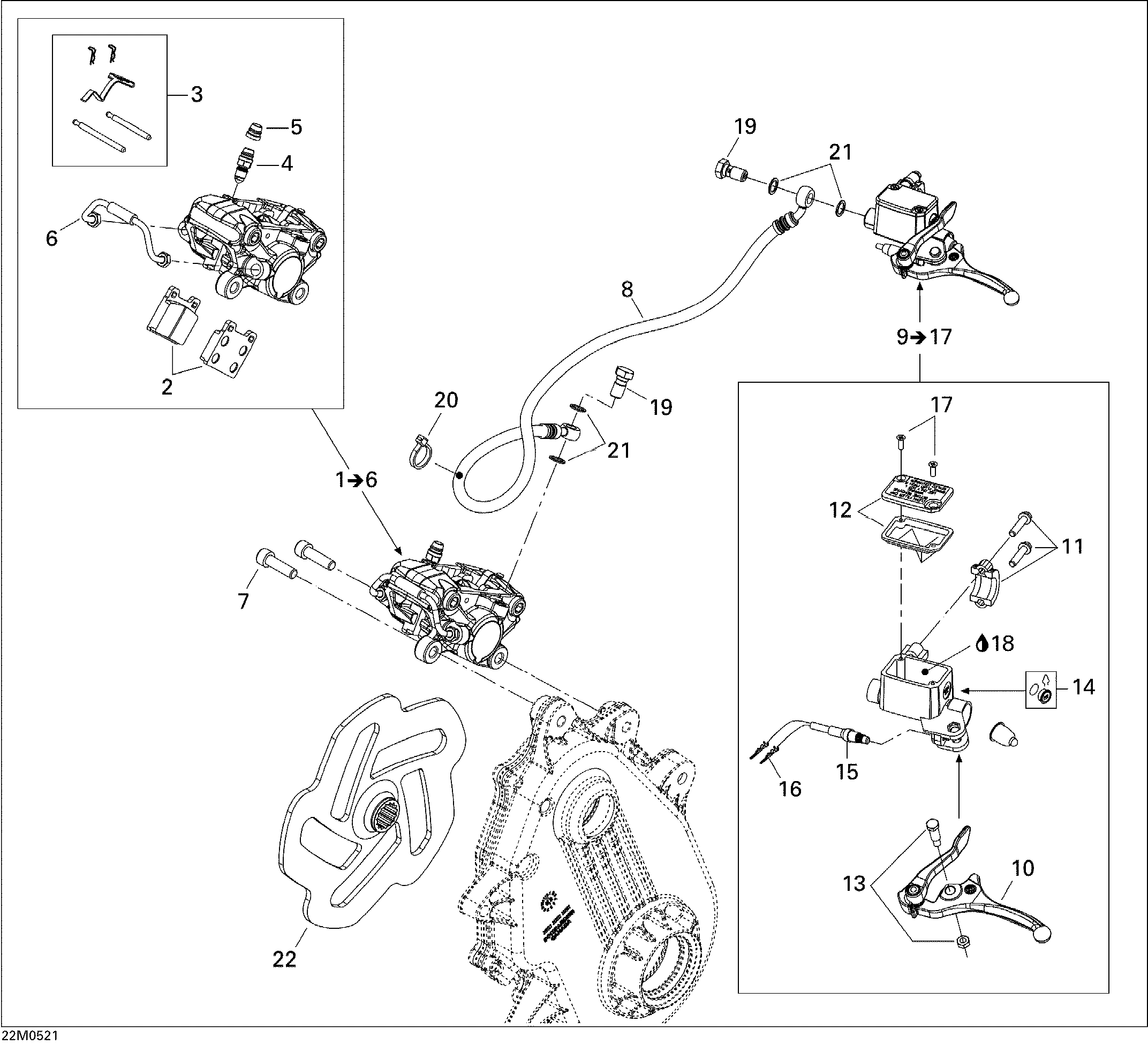

06- Hydraulic Brake для BRP Ski-Doo Summit 1000 SDI, Highmark & Highmark X - 2005

  • №
    Артикул
    Название
  • 1
    507032387 Brake Caliper. Highmark X, Includes 1 To 6
    Brake Caliper. Highmark X, Includes 1 To 6
  • 1
    507032417 Brake Caliper. Highmark, Includes 1 To 6
    Brake Caliper. Highmark, Includes 1 To 6
  • 2
    415084600 Brake Pad Kit
    Brake Pad Kit
  • 3
    415128865 Kit (pins, Retainers, Spring)
    Kit (pins, Retainers, Spring)
  • 4
    414989800 Bleeder Screw
    Bleeder Screw
  • 5
    414989700 Boot
    Boot
  • 6
    414989900 Rigid Tubing
    Rigid Tubing
  • 7
    205503544 Socket Head Screw M10 X 35, Scotch Grip
    Socket Head Screw M10 X 35, Scotch Grip
  • 8
    507032418 Brake Hose. Highmark X
    Brake Hose. Highmark X
  • 8
    507032419 Brake Hose. Highmark
    Brake Hose. Highmark
  • 9
    507032407 Master Cylinder. Highmark X, Includes 9 To 17
    Master Cylinder. Highmark X, Includes 9 To 17
  • 9
    507032421 Master Cylinder. Highmark, Includes 9 To 17
    Master Cylinder. Highmark, Includes 9 To 17
  • 10
    507032423 Brake Lever Ass'y
    Brake Lever Ass'y
  • 11
    415029800 Clamp Ass'Y
    Clamp Ass'Y
  • 12
    415029900 Cap
    Cap
  • 13
    415030000 Pin Ass'Y
    Pin Ass'Y
  • 14
    414990600 Window
    Window
  • 15
    507032366 Microswitch
    Microswitch
  • 16
    515175232 Male Terminal
    Male Terminal
  • 17
    216141260 Screw M4 X 12
    Screw M4 X 12
  • 18
    293600063 Brake Fluid, Srf (dot 4)
    Brake Fluid, Srf (dot 4)
  • 18
    293600062 Brake Fluid, Gtlma (dot 4) 12 X 354 ml
    Brake Fluid, Gtlma (dot 4) 12 X 354 ml
  • 19
    414920500 Banjo Bolt
    Banjo Bolt
  • 20
    293750002 Tie-Rap 130 mm
    Tie-Rap 130 mm
  • 21
    414920600 Washer
    Washer
  • 22
    507032400 Brake Disk
    Brake Disk
