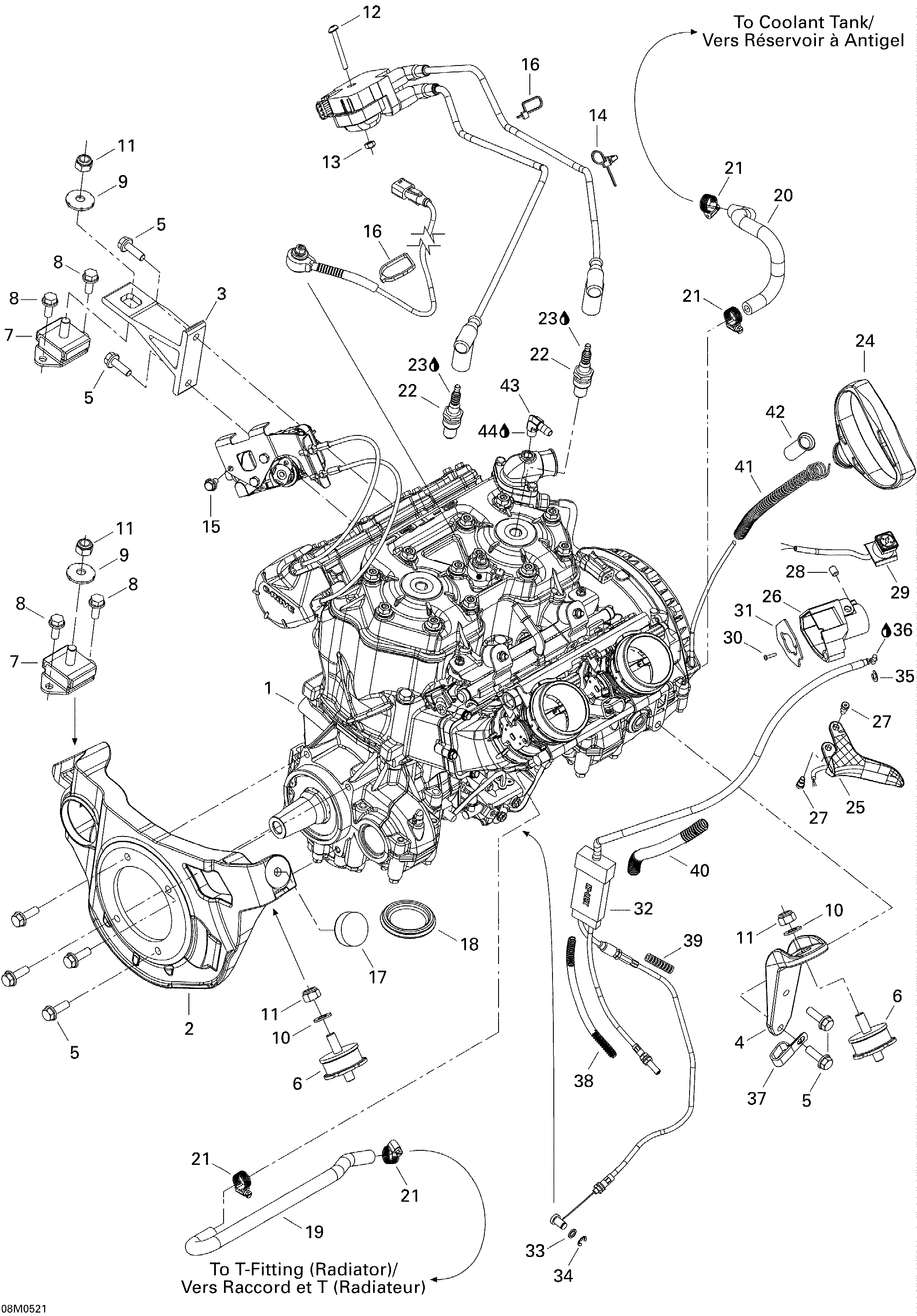

01- Engine для BRP Ski-Doo Summit 1000 SDI, Highmark & Highmark X - 2005
-
№АртикулНазвание
-
1400101116 Engine 995 SDI RerEngine 995 SDI Rer
-
2512059792 Engine Support, PTOEngine Support, PTO
-
3512059894 Front Engine Support, MagFront Engine Support, Mag
-
4512059794 Rear Engine Support, MagRear Engine Support, Mag
-
5207582544 Hex Flanged Screw M8 X 25, Scotch GripHex Flanged Screw M8 X 25, Scotch Grip
-
6512059960 Rubber MountRubber Mount
-
7512059936 Rubber MountRubber Mount
-
8207582044 Hex Flanged Screw M8 X 20, Scotch GripHex Flanged Screw M8 X 20, Scotch Grip
-
9512056700 Lock WasherLock Washer
-
10234001410 Flat Washer 10 mmFlat Washer 10 mm
-
11233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
12250000215 Torx Screw M6 X 45Torx Screw M6 X 45
-
13232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
14515175220 Tie RapTie Rap
-
15207661244 Hex Flange Screw M6 X 12Hex Flange Screw M6 X 12
-
16414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
17512060000 StopperStopper
-
18570045101 Bottom Pan CapBottom Pan Cap
-
19512060012 Formed Hose, Inlet Throttle BodyFormed Hose, Inlet Throttle Body
-
20512059935 Formed Hose, Outlet Throttle BodyFormed Hose, Outlet Throttle Body
-
21293650170 Tridon Hose ClampTridon Hose Clamp
-
22512060029 Spark Plug Br8ecsSpark Plug Br8ecs
-
23293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
24572084400 Starter GripStarter Grip
-
25512059891 Handle Ass'YHandle Ass'Y
-
26512059295 Throttle HousingThrottle Housing
-
27732601143 Flanged ScrewFlanged Screw
-
28414440800 Set Screw M8 X 10Set Screw M8 X 10
-
29515176091 Kill Switch. HighmarkKill Switch. Highmark
-
29515176092 Kill Switch. Highmark XKill Switch. Highmark X
-
30250000022 Phillips ScrewPhillips Screw
-
31512059507 PlatePlate
-
32512060009 Throttle CableThrottle Cable
-
33234081100 Flat Washer 8 mmFlat Washer 8 mm
-
34414753500 CirclipCirclip
-
35414274500 CirclipCirclip
-
36293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
37515175980 Open ClampOpen Clamp
-
38515175442 Tubing, 6 mmTubing, 6 mm
-
39515175442 Tubing, 6 mmTubing, 6 mm
-
40409901700 Tubing, 9 mmTubing, 9 mm
-
41512059964 Rope GuideRope Guide
-
42512059536 TubeTube
-
43293700045 Elbow Fitting 90°Elbow Fitting 90°
-
44293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
