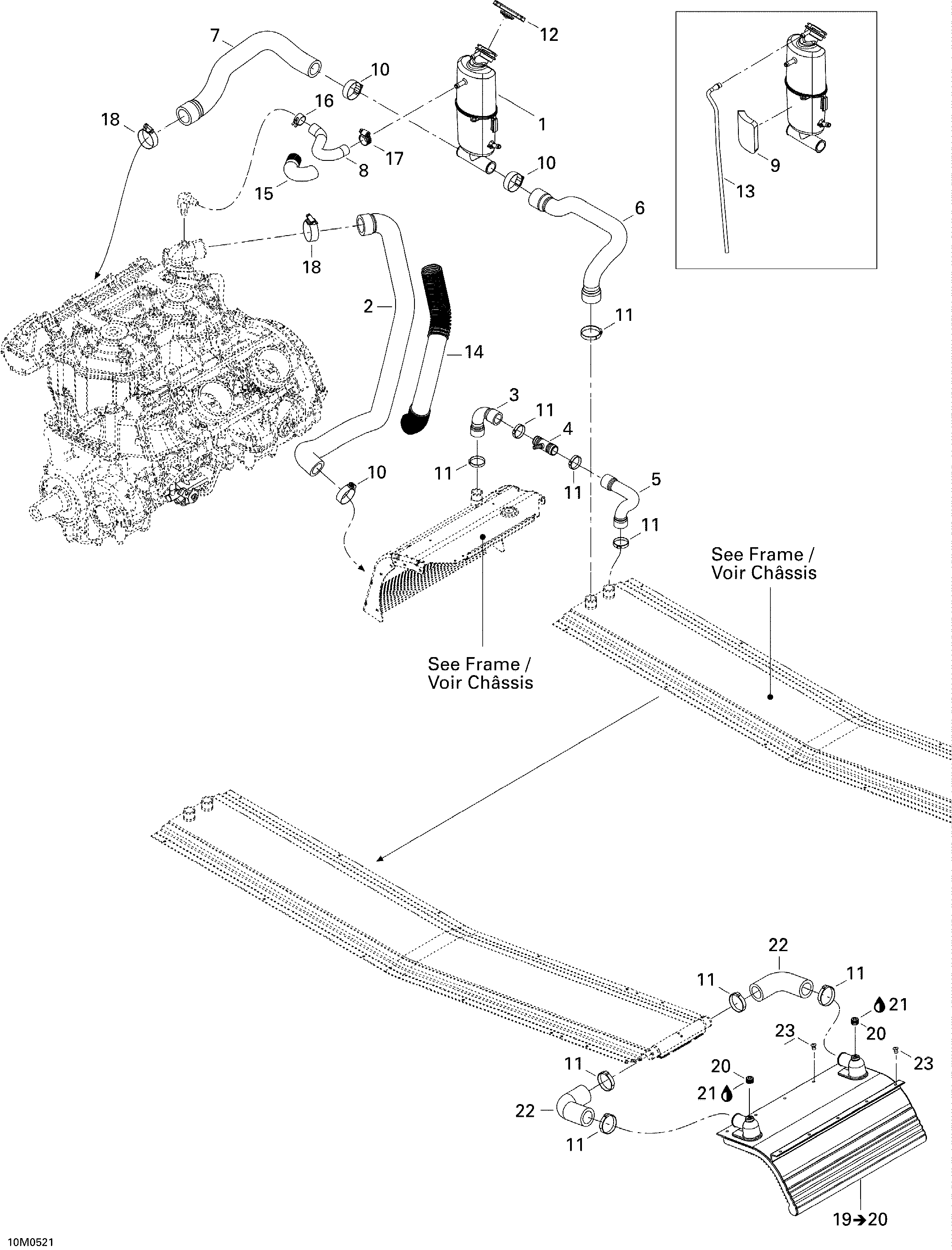

01- Cooling System для BRP Ski-Doo Summit 1000 SDI, Highmark & Highmark X - 2005
-
№АртикулНазвание
-
1509000323 Coolant TankCoolant Tank
-
2509000312 Engine Outlet HoseEngine Outlet Hose
-
3509000337 Front Radiator Outlet HoseFront Radiator Outlet Hose
-
4509000336 T-fittingT-fitting
-
5509000338 Radiator Inlet HoseRadiator Inlet Hose
-
6509000313 Radiator Outlet HoseRadiator Outlet Hose
-
7509000351 Engine Inlet HoseEngine Inlet Hose
-
8509000297 Bleed HoseBleed Hose
-
9509000353 FoamFoam
-
10408800400 Tridon Gear ClampTridon Gear Clamp
-
11509000045 Oetiker Gear ClampOetiker Gear Clamp
-
12509000187 Pressure CapPressure Cap
-
13415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
14515176260 Tubing 35mmTubing 35mm
-
15415080000 Tubing, 16 mmTubing, 16 mm
-
16513033029 Spring ClampSpring Clamp
-
17293650170 Tridon Hose ClampTridon Hose Clamp
-
18509000352 Aba Gear ClampAba Gear Clamp
-
19518324335 Rear Cap Radiator. Includes 19 To 20Rear Cap Radiator. Includes 19 To 20
-
20504151921 Plug 1/8''-27Plug 1/8''-27
-
21293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
22509000322 Rear HoseRear Hose
-
23390909200 Avex RivetAvex Rivet
