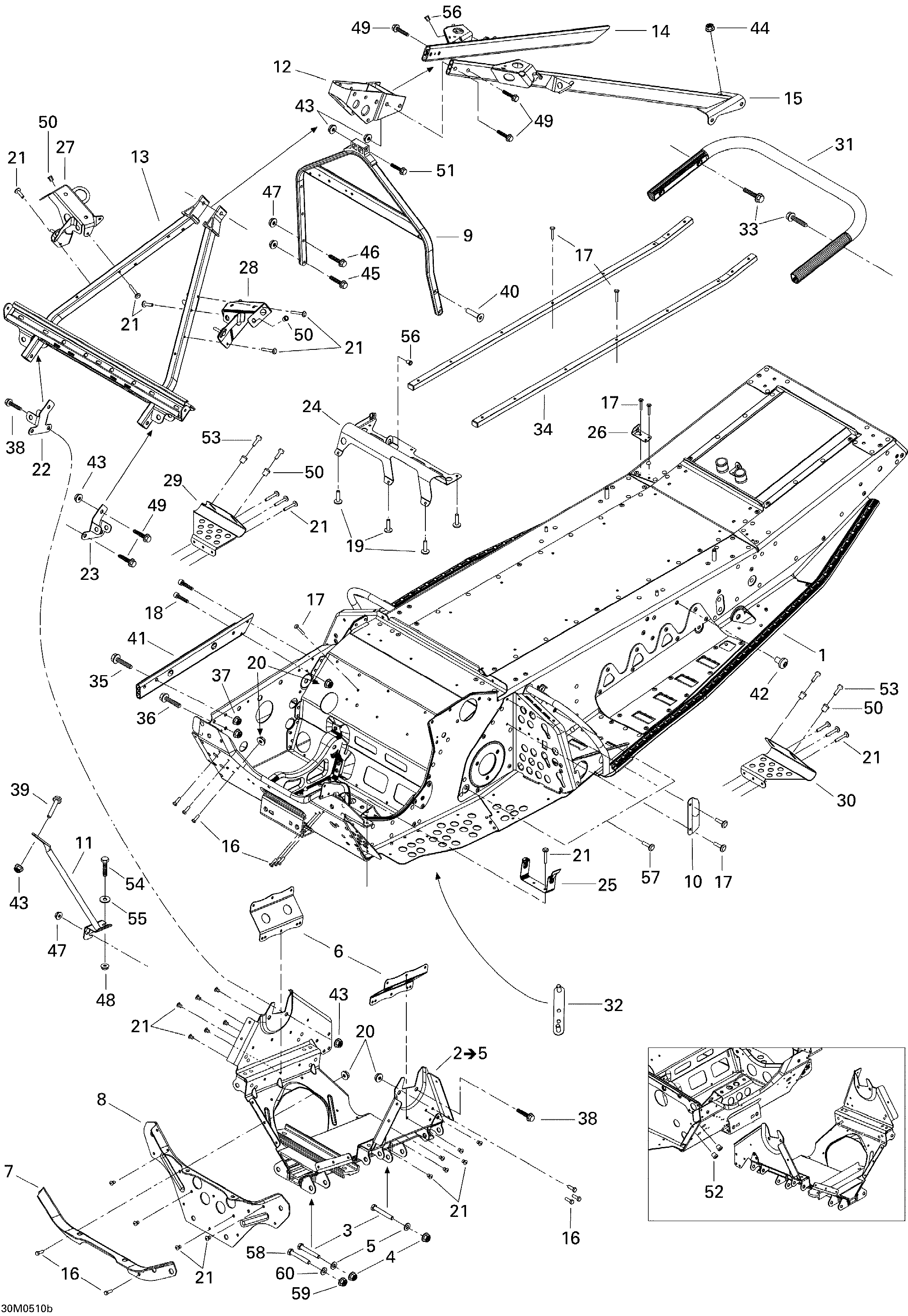

09- Frame and Components для BRP Ski-Doo MX Z X 440 Racing - 2005
-
№АртикулНазвание
-
1415128929 FrameFrame
-
2518324718 Front Cross Member. Includes 2 to 5Front Cross Member. Includes 2 to 5
-
3207085544 Hex Screw M8 X 55Hex Screw M8 X 55
-
4233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
5234081410 Flat Washer 8 mmFlat Washer 8 mm
-
6518324181 Corner ReinforcementCorner Reinforcement
-
7518324107 Plate ReinforcementPlate Reinforcement
-
8518324726 Front PlateFront Plate
-
9518324505 Handle SupportHandle Support
-
10518317504 Cable ProtecteurCable Protecteur
-
11518323472 Brace (black)Brace (black)
-
12518323853 Bracket BlockBracket Block
-
13518324574 Upper Cross MemberUpper Cross Member
-
14518324182 RH MemberRH Member
-
15518324183 LH MemberLH Member
-
16207151644 Hex Screw M5 X 16Hex Screw M5 X 16
-
17390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
18205051644 Socket Screw M5 X 16Socket Screw M5 X 16
-
19390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
20233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
21390909200 Rivet AvexRivet Avex
-
22518322461 RH Shock BracketRH Shock Bracket
-
23518322462 LH Shock BracketLH Shock Bracket
-
24518323532 Intake Air Admission SupportIntake Air Admission Support
-
25518322726 Guard Belt Bracket, BlackGuard Belt Bracket, Black
-
26518323274 Trunk Bracket (Black)Trunk Bracket (Black)
-
27518323535 RH Console SupportRH Console Support
-
28518323536 LH Console SupportLH Console Support
-
29518324391 RH Toe HoldRH Toe Hold
-
30518324392 LH Toe HoldLH Toe Hold
-
31518324465 Rear BumperRear Bumper
-
32518323896 Trunk Bracket, BlackTrunk Bracket, Black
-
33207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
34518324585 Tunnel ProtectorTunnel Protector
-
35207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
36207161844 Hex Screw M6 X 18Hex Screw M6 X 18
-
37233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
38207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
39207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
40205862044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
41518324096 RH Tunnel StiffenerRH Tunnel Stiffener
-
42250000154 Torx Screw M8 X 13Torx Screw M8 X 13
-
43233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
44233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
45207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
46207663544 Hex Flanged Screw M6 X 35Hex Flanged Screw M6 X 35
-
47233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
48232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
49207683544 Hex Flanged Screw M8 X 35Hex Flanged Screw M8 X 35
-
50415107300 InsertInsert
-
51207687044 Hex Flanged Screw M8 X 70Hex Flanged Screw M8 X 70
-
52293450166 InsertInsert
-
53207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
54207161444 Hex Screw M6 X 14Hex Screw M6 X 14
-
55224061121 Flat WasherFlat Washer
-
56293450232 InsertInsert
-
57518321954 Fastener PanelFastener Panel
-
58207085544 Hex Screw M8 X 55Hex Screw M8 X 55
-
59233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
60234081410 Flat Washer 8 mmFlat Washer 8 mm
