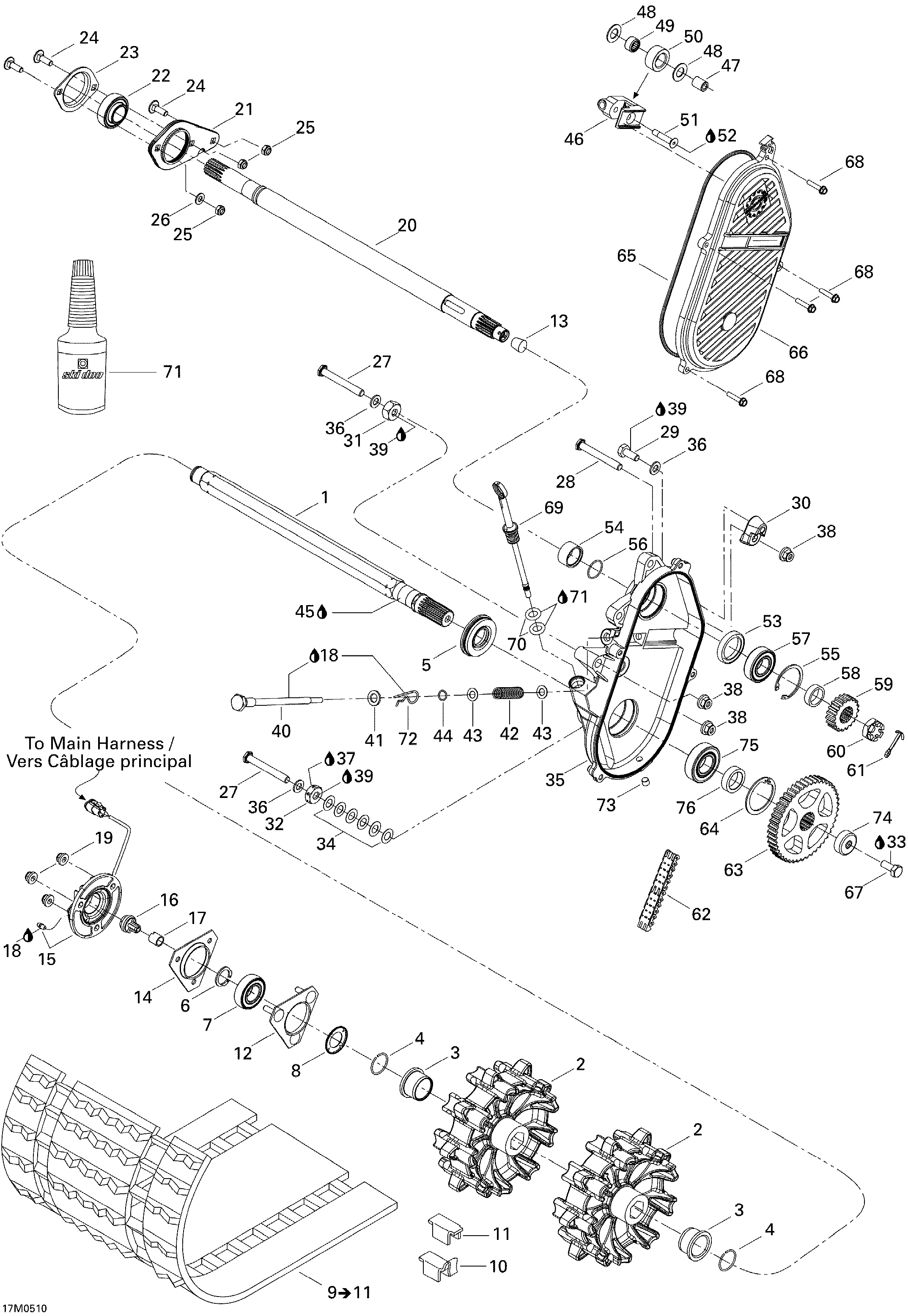

05- Drive System для BRP Ski-Doo MX Z X 440 Racing - 2005
-
№АртикулНазвание
-
1504152359 Drive AxleDrive Axle
-
2504152503 9 Teeth Double Sprocket9 Teeth Double Sprocket
-
3504152475 Retainer RingRetainer Ring
-
4504152194 CirclipCirclip
-
5504151918 Oil Seal Ass'YOil Seal Ass'Y
-
6371910200 CirclipCirclip
-
7504152009 Ball BearingBall Bearing
-
8501017400 Bearing ProtectorBearing Protector
-
9504152517 Track Assy.. Includes 9 to 11Track Assy.. Includes 9 to 11
-
10504152410 GuideGuide
-
11500003300 CleatCleat
-
12504151860 Bearing HousingBearing Housing
-
13414784800 CorkCork
-
14501025000 FlangeFlange
-
15504152345 SensorSensor
-
16504152040 Magnetic AdaptorMagnetic Adaptor
-
17572097500 AdaptorAdaptor
-
18219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
19233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
20504152020 Counter-ShaftCounter-Shaft
-
21504151968 SpacerSpacer
-
22504152026 Ball BearingBall Bearing
-
23501026900 FlangeFlange
-
24207782544 Carriage Bolt M8 X 25Carriage Bolt M8 X 25
-
25232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
26234081410 Flat Washer 8 mmFlat Washer 8 mm
-
27207107544 Hex Screw M10 X 75Hex Screw M10 X 75
-
28207006044 Hex Screw M10 X 60Hex Screw M10 X 60
-
29207602544 Hex Screw M10 X 25Hex Screw M10 X 25
-
30504152252 SpacerSpacer
-
31504083800 SpacerSpacer
-
32504152237 SpacerSpacer
-
33293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
34504073700 WasherWasher
-
35504152499 ChaincaseChaincase
-
36503175800 WasherWasher
-
37293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
38233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
39293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
40504151946 Screw AdjustingScrew Adjusting
-
41503189148 WasherWasher
-
42504151945 SpringSpring
-
43503125900 Hard WasherHard Washer
-
44504151954 O-RingO-Ring
-
45219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
46504152083 Chain TensionnerChain Tensionner
-
47504080200 SpacerSpacer
-
48504080300 WasherWasher
-
49405403000 Needle BearingNeedle Bearing
-
50414531300 RollerRoller
-
51732601144 ScrewScrew
-
52293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
53415049300 Oil SealOil Seal
-
54507031500 SpacerSpacer
-
55371901700 Circlip, InteriorCirclip, Interior
-
56414876700 O-RingO-Ring
-
57504152006 Ball BearingBall Bearing
-
58504093400 ShimShim
-
59504152044 Sprocket 21 TeethSprocket 21 Teeth
-
60250000012 Hex Castle Nut 20 X 1.5Hex Castle Nut 20 X 1.5
-
61371006300 Pin CotterPin Cotter
-
62504151932 Drive Chain Large (74 Links)Drive Chain Large (74 Links)
-
63504152518 Sprocket 45 TeethSprocket 45 Teeth
-
64415064300 Circlip, InteriorCirclip, Interior
-
65415046400 O-RingO-Ring
-
66504152471 Chaincase CoverChaincase Cover
-
67207102544 Hex Screw M10 X 25Hex Screw M10 X 25
-
68210263080 Hex Forming Screw M6 X 30Hex Forming Screw M6 X 30
-
69504151703 Filler Cap Ass'YFiller Cap Ass'Y
-
70414969400 O-RingO-Ring
-
71413803300 Synthetic Chaincase Oil, 12 X 355 mlSynthetic Chaincase Oil, 12 X 355 ml
-
72414575600 Hair PinHair Pin
-
73504151921 Plug 1/8''-27Plug 1/8''-27
-
74504152480 CapCap
-
75504152509 Ball BearingBall Bearing
-
76504152491 ShimShim
