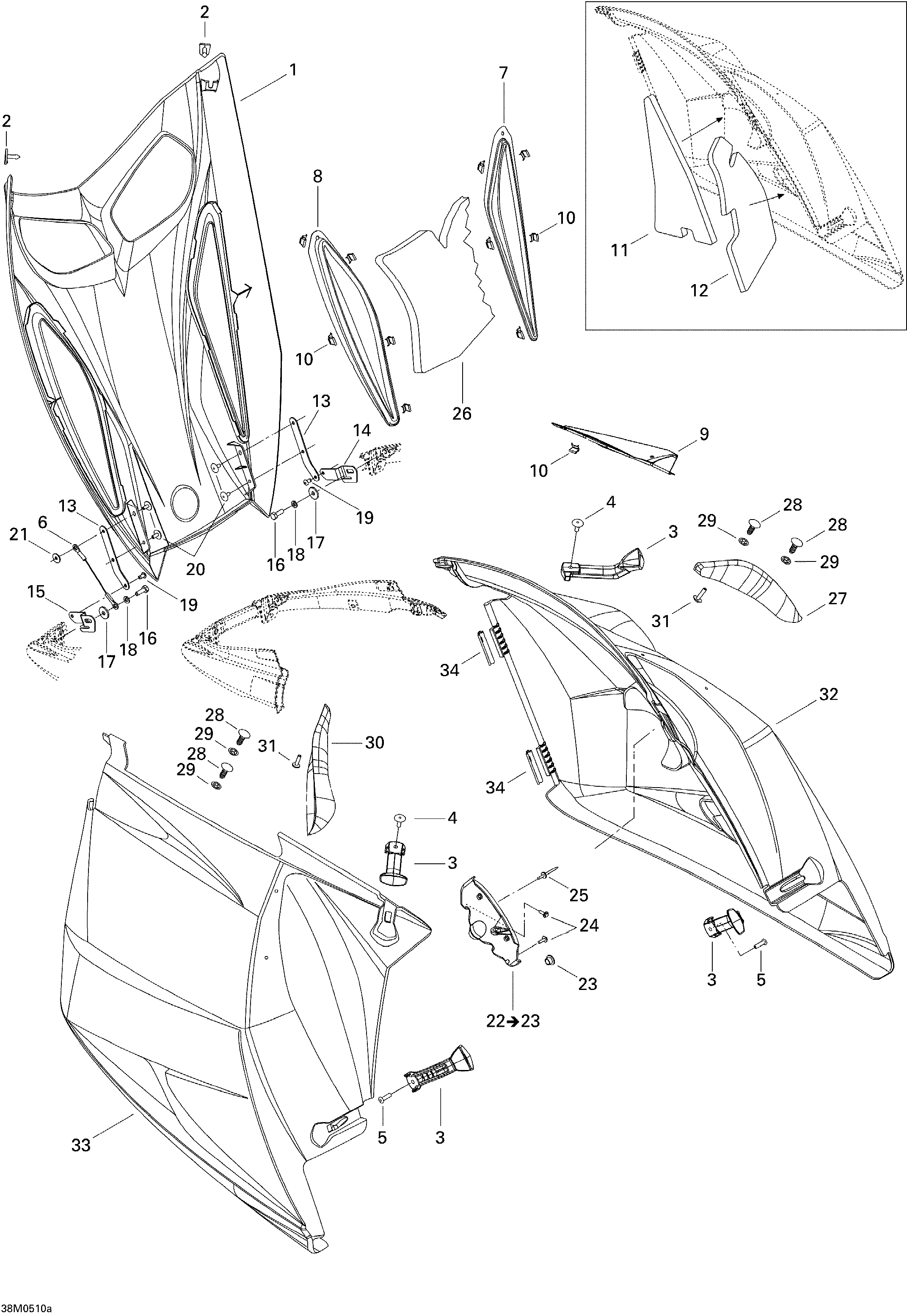

09- Hood для BRP Ski-Doo MX Z X 440 Racing - 2005
-
№АртикулНазвание
-
1517302788 Hood, BlackHood, Black
-
2517302543 PinPin
-
3517302448 Panel LatchPanel Latch
-
4293150087 Pop Rivet 3/16''Pop Rivet 3/16''
-
5390410100 Pop-rivet 3/16''Pop-rivet 3/16''
-
6517302673 Retainer CableRetainer Cable
-
7517302936 RH Hood GrillRH Hood Grill
-
8517302937 LH Hood GrillLH Hood Grill
-
9517302938 RH Panel GrillRH Panel Grill
-
10517302789 ClipClip
-
11517303082 RH Panel Front FoamRH Panel Front Foam
-
12517303492 RH Panel Rear FoamRH Panel Rear Foam
-
13517302544 Upper Half-HingeUpper Half-Hinge
-
14517302444 RH Lower Half-HingeRH Lower Half-Hinge
-
15517302445 LH Lower Half-HingeLH Lower Half-Hinge
-
16207161844 Hex Screw M6 X 18Hex Screw M6 X 18
-
17224061121 Flat WasherFlat Washer
-
18234161471 Lock Washer 6 mmLock Washer 6 mm
-
19390909200 Avex RivetAvex Rivet
-
20390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
21517225900 Flat WasherFlat Washer
-
22517303109 RH Console (Black (B-160)). Includes 22 to 23RH Console (Black (B-160)). Includes 22 to 23
-
23275500241 PlugPlug
-
24293150103 Rivet Pop 3/16''Rivet Pop 3/16''
-
25293150102 Rivet 3/16Rivet 3/16
-
26517303081 Hood FoamHood Foam
-
27517302800 RH Air DeflectorRH Air Deflector
-
28517303070 Windshield DartWindshield Dart
-
29250100034 Push NutPush Nut
-
30517302801 LH Air DeflectorLH Air Deflector
-
31250000101 Screw M4 X 25Screw M4 X 25
-
32517303182 RH Panel (Yellow (B-190))RH Panel (Yellow (B-190))
-
33517302805 LH Panel (Yellow (B-190))LH Panel (Yellow (B-190))
-
34517302823 Hinge LockHinge Lock
