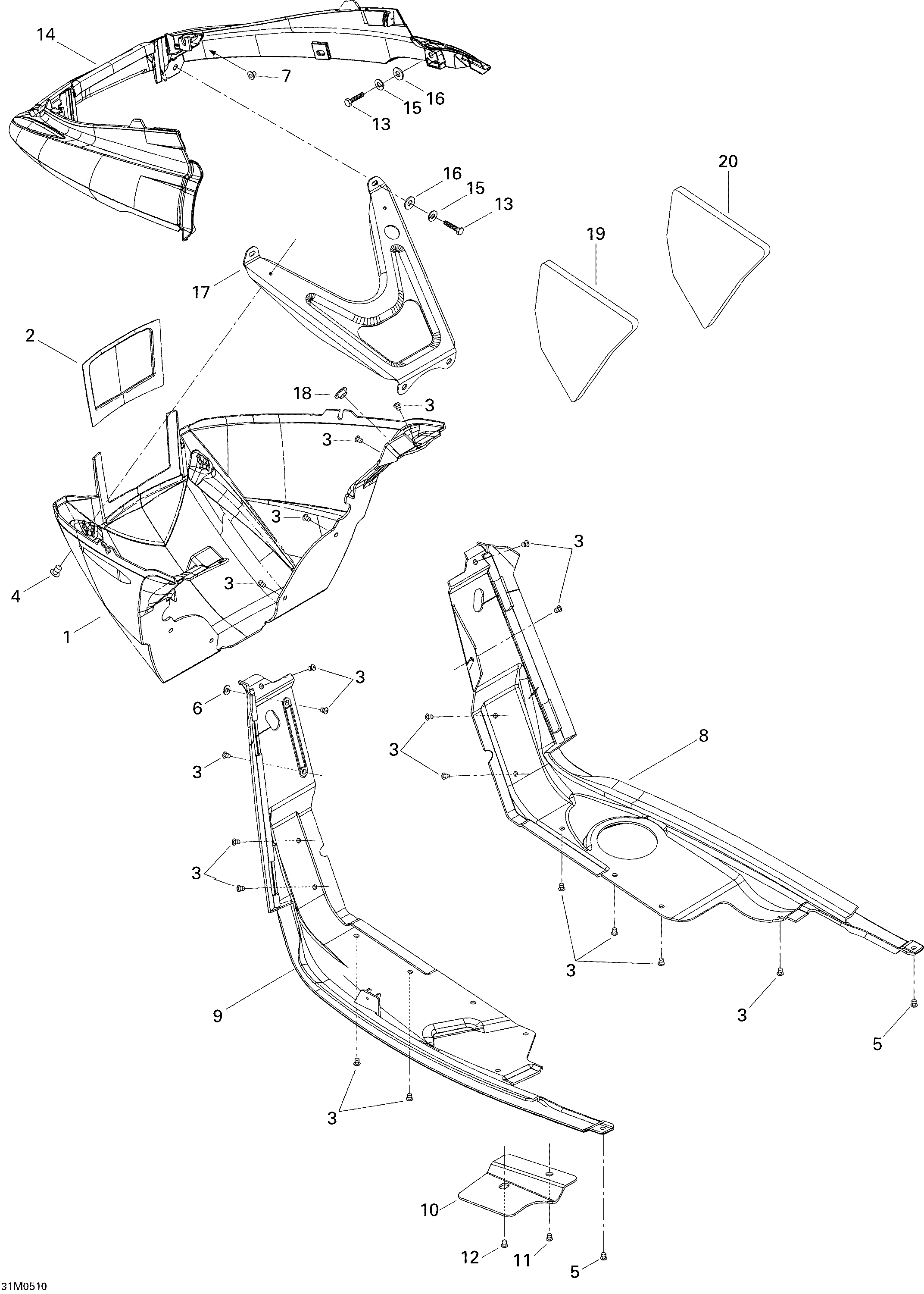

09- Bottom Pan для BRP Ski-Doo MX Z X 440 Racing - 2005
-
№АртикулНазвание
-
1502006733 Front Bottom PanFront Bottom Pan
-
2502006706 Bottom Pan PlateBottom Pan Plate
-
3293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
4293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
5293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
6517124300 WasherWasher
-
7293100003 Nut M6Nut M6
-
8502006729 RH Bottom PanRH Bottom Pan
-
9502006730 LH Bottom PanLH Bottom Pan
-
10502006799 BracketBracket
-
11390909200 Rivet AvexRivet Avex
-
12390410100 Pop-rivet 3/16''Pop-rivet 3/16''
-
13207161444 Hex Screw M6 X 14Hex Screw M6 X 14
-
14502006680 Bumper, Yellow, B-190Bumper, Yellow, B-190
-
15234161471 Lock Washer 6 mmLock Washer 6 mm
-
16224061121 Flat WasherFlat Washer
-
17502006772 SupportSupport
-
18414916600 Nylon CapNylon Cap
-
19502006722 LH FoamLH Foam
-
20502006721 RH FoamRH Foam
