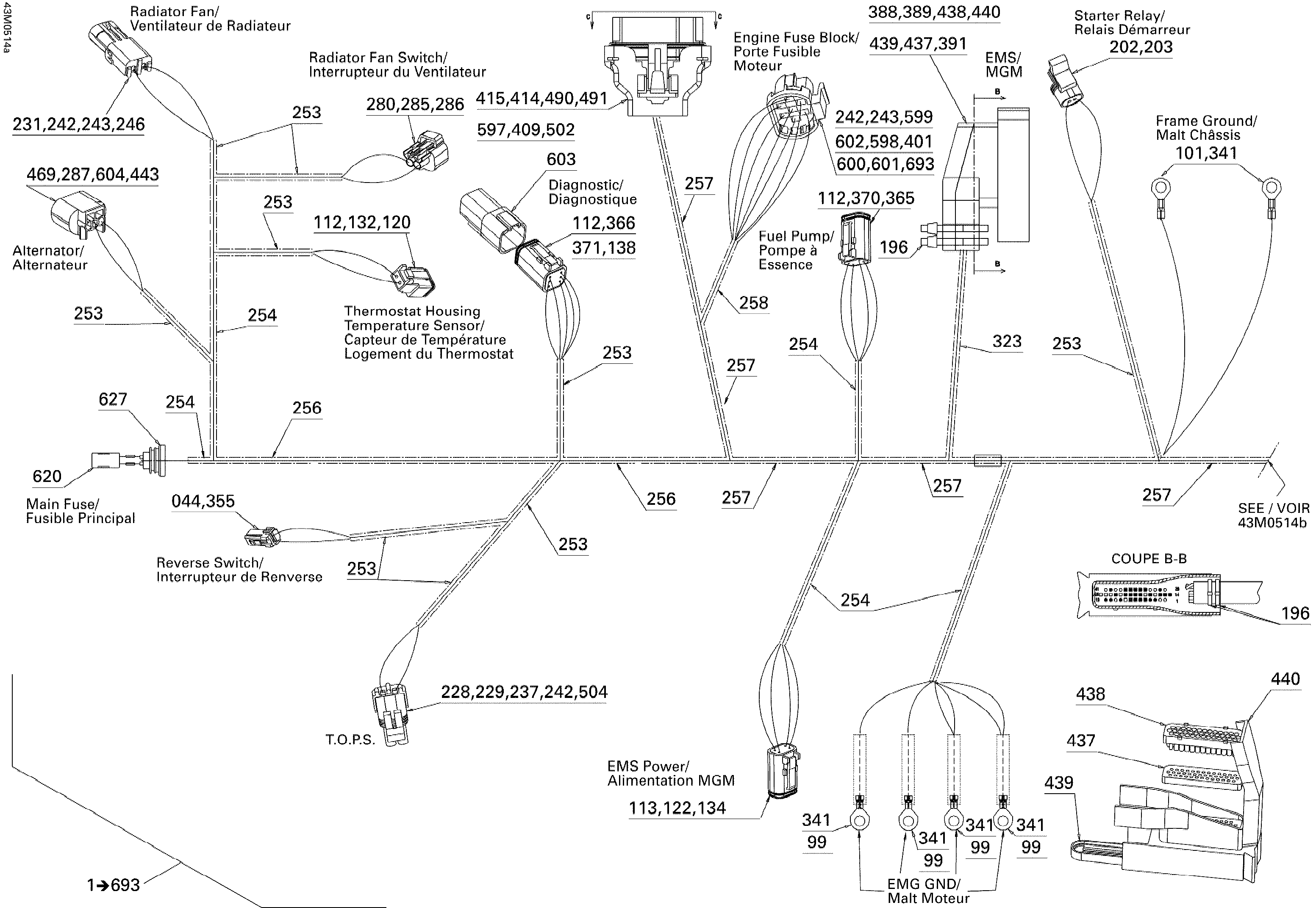

10- Electrical Harness 1 для BRP Ski-Doo Elite 1500 2nd Edition - 2004

  • №
    Артикул
    Название
  • 1
    515176266 Main Harness. Includes items 1 to 693
    Main Harness. Includes items 1 to 693
  • 34
    409010100 Female Terminal
    Female Terminal
  • 36
    409010400 Female Terminal Housing, 1 Circuit
    Female Terminal Housing, 1 Circuit
  • 42
    515175273 Male Terminal
    Male Terminal
  • 44
    515175231 Female Terminal
    Female Terminal
  • 46
    515175282 Female Terminal
    Female Terminal
  • 54
    515175495 Female Terminal Housing, 3 Circuits
    Female Terminal Housing, 3 Circuits
  • 88
    278001009 Female Terminal
    Female Terminal
  • 99
    278000992 Ring Terminal
    Ring Terminal
  • 100
    409012500 Open Barrel
    Open Barrel
  • 101
    278001392 Open Barrel
    Open Barrel
  • 110
    278000631 Male Terminal
    Male Terminal
  • 111
    515175823 Male Terminal
    Male Terminal
  • 112
    278000632 Female Terminal
    Female Terminal
  • 113
    278001661 Female Terminal
    Female Terminal
  • 114
    409206900 Male Housing, 2 Circuits
    Male Housing, 2 Circuits
  • 119
    409015800 Male Terminal Housing, 12 Circuits
    Male Terminal Housing, 12 Circuits
  • 120
    409207300 Female Terminal Housing, 2 Circuits
    Female Terminal Housing, 2 Circuits
  • 122
    278000739 Female Terminal Housing, 4 Circuits
    Female Terminal Housing, 4 Circuits
  • 126
    409207500 Male Lock, 2 Circuits
    Male Lock, 2 Circuits
  • 127
    409207600 Male Lock, 3 Circuits
    Male Lock, 3 Circuits
  • 129
    278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)
    (Female) Secondary Lock (6 Circuits) (Deutsch)
  • 132
    409207100 Female Lock, 2 Circuits
    Female Lock, 2 Circuits
  • 134
    278000738 Lock Female (4 Circuits)
    Lock Female (4 Circuits)
  • 138
    293000052 Sealing Cap
    Sealing Cap
  • 172
    561503100 Female Terminal
    Female Terminal
  • 192
    409003900 Fuse, 20 Amperes
    Fuse, 20 Amperes
  • 193
    278001197 Fuse 10 Amperes
    Fuse 10 Amperes
  • 194
    278001197 Fuse 10 Amperes
    Fuse 10 Amperes
  • 196
    293750002 Tie-Rap 130 mm
    Tie-Rap 130 mm
  • 202
    278001114 Female Terminal
    Female Terminal
  • 203
    278001113 Male Terminal Housing (2 Circuits)
    Male Terminal Housing (2 Circuits)
  • 204
    409003600 Female Terminal
    Female Terminal
  • 206
    409004200 Female Terminal
    Female Terminal
  • 224
    515175321 Female Terminal
    Female Terminal
  • 225
    409202700 Female Terminal Housing, 3 Circuits
    Female Terminal Housing, 3 Circuits
  • 226
    278000222 Male Terminal
    Male Terminal
  • 228
    409007300 Female Terminal
    Female Terminal
  • 229
    278000223 Female Terminal
    Female Terminal
  • 231
    278000217 Female Terminal Housing, 2 Circuits
    Female Terminal Housing, 2 Circuits
  • 237
    278000220 Male Terminal Housing (2 Circuits)
    Male Terminal Housing (2 Circuits)
  • 242
    278000218 Wire Seal
    Wire Seal
  • 243
    710000048 Wire Seal
    Wire Seal
  • 246
    409004300 Male Terminal
    Male Terminal
  • 253
    515175442 Tubing, 6 mm
    Tubing, 6 mm
  • 254
    409901700 Tubing, 9 mm
    Tubing, 9 mm
  • 255
    409901800 Tubing, 13 mm
    Tubing, 13 mm
  • 256
    415080000 Tubing, 16 mm
    Tubing, 16 mm
  • 257
    409901600 Tubing, 19 mm
    Tubing, 19 mm
  • 258
    415079900 Tubing, 10 mm
    Tubing, 10 mm
  • 260
    515175319 Tubing 22 mm
    Tubing 22 mm
  • 280
    409012100 Female Terminal
    Female Terminal
  • 285
    710000078 Female Terminal Housing, 2 Circuits
    Female Terminal Housing, 2 Circuits
  • 286
    409012300 Seal
    Seal
  • 287
    710000080 Cap
    Cap
  • 297
    278001007 Insulation Sheath
    Insulation Sheath
  • 300
    278000343 Fuse 15 Amperes
    Fuse 15 Amperes
  • 307
    515175509 Male Terminal Housing, 1 Circuit
    Male Terminal Housing, 1 Circuit
  • 308
    515175510 Female Terminal Housing, 1 Circuit
    Female Terminal Housing, 1 Circuit
  • 309
    515175543 Female Terminal Housing, 6 Circuits
    Female Terminal Housing, 6 Circuits
  • 318
    278001477 Male Terminal Housing, 4 Circuits
    Male Terminal Housing, 4 Circuits
  • 319
    515175568 Male Terminal
    Male Terminal
  • 323
    515175580 Low Temperatue Tubing
    Low Temperatue Tubing
  • 346
    278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)
    (Female) Secondary Lock (4 Circuits) (Deutsch)
  • 355
    515175658 Female Terminal Housing, 2 Circuits
    Female Terminal Housing, 2 Circuits
  • 359
    515175666 Male Terminal Housing, 3 Circuits
    Male Terminal Housing, 3 Circuits
  • 361
    515175668 Male Terminal Housing (6 Circuits)
    Male Terminal Housing (6 Circuits)
  • 365
    515175672 Female Terminal Housing, 4 Circuits
    Female Terminal Housing, 4 Circuits
  • 366
    515175673 Female Terminal Housing, 6 Circuits
    Female Terminal Housing, 6 Circuits
  • 370
    515175677 Lock Female, 4 Circuits
    Lock Female, 4 Circuits
  • 371
    515175678 Female Lock, 6 Circuits
    Female Lock, 6 Circuits
  • 382
    515175704 Female Terminal Housing, 12 Circuits
    Female Terminal Housing, 12 Circuits
  • 387
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 388
    278001750 Female Terminal
    Female Terminal
  • 389
    278001752 Female Terminal
    Female Terminal
  • 391
    278001751 Female Terminal Housing, 41 Circuits
    Female Terminal Housing, 41 Circuits
  • 401
    278001505 Wire Seal
    Wire Seal
  • 409
    515175812 Plug
    Plug
  • 410
    515175801 Female Terminal Housing, 24 Circuits
    Female Terminal Housing, 24 Circuits
  • 411
    515175802 Retainer
    Retainer
  • 412
    515175803 Wire Seal
    Wire Seal
  • 413
    515175804 Block
    Block
  • 414
    515175805 Lock
    Lock
  • 415
    515175806 Female Terminal
    Female Terminal
  • 430
    515175857 Fuse Holder
    Fuse Holder
  • 431
    515175856 Relay Holder
    Relay Holder
  • 433
    515175854 Female Terminal
    Female Terminal
  • 437
    515175886 Seal
    Seal
  • 438
    515175883 Latch
    Latch
  • 439
    515175884 Lock
    Lock
  • 440
    515175885 Cover
    Cover
  • 441
    410113604 Relay
    Relay
  • 443
    710000335 Female Terminal
    Female Terminal
  • 466
    415128525 Fuse (0.5 Ampere)
    Fuse (0.5 Ampere)
  • 469
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 469
    515175979 Seal
    Seal
  • 490
    710000394 Wire Seal
    Wire Seal
  • 491
    710000395 Female Housing 32 Pins
    Female Housing 32 Pins
  • 492
    710000396 Female Housing 32 Pins
    Female Housing 32 Pins
  • 501
    515176065 Fuse Box Base
    Fuse Box Base
  • 502
    710000413 Housing 32 Pins
    Housing 32 Pins
  • 504
    278001065 Wire Seal
    Wire Seal
  • 593
    515176069 Male Terminal Housing, 3 Circuits
    Male Terminal Housing, 3 Circuits
  • 597
    515176055 Terminal Retainer
    Terminal Retainer
  • 598
    515176051 Female Housing
    Female Housing
  • 599
    515176053 Female Terminal
    Female Terminal
  • 600
    515176052 Female Terminal
    Female Terminal
  • 601
    515176056 Latch
    Latch
  • 602
    515176057 Lock
    Lock
  • 603
    278001725 Diagnostique Connection Cap
    Diagnostique Connection Cap
  • 604
    515176054 Female Housing
    Female Housing
  • 620
    515176106 Female Terminal
    Female Terminal
  • 624
    710000221 Female Terminal
    Female Terminal
  • 625
    278001321 Male Terminal Housing (8 Circuits)
    Male Terminal Housing (8 Circuits)
  • 627
    515176110 Wire Seal
    Wire Seal
  • 693
    278002031 Female Terminal
    Female Terminal
