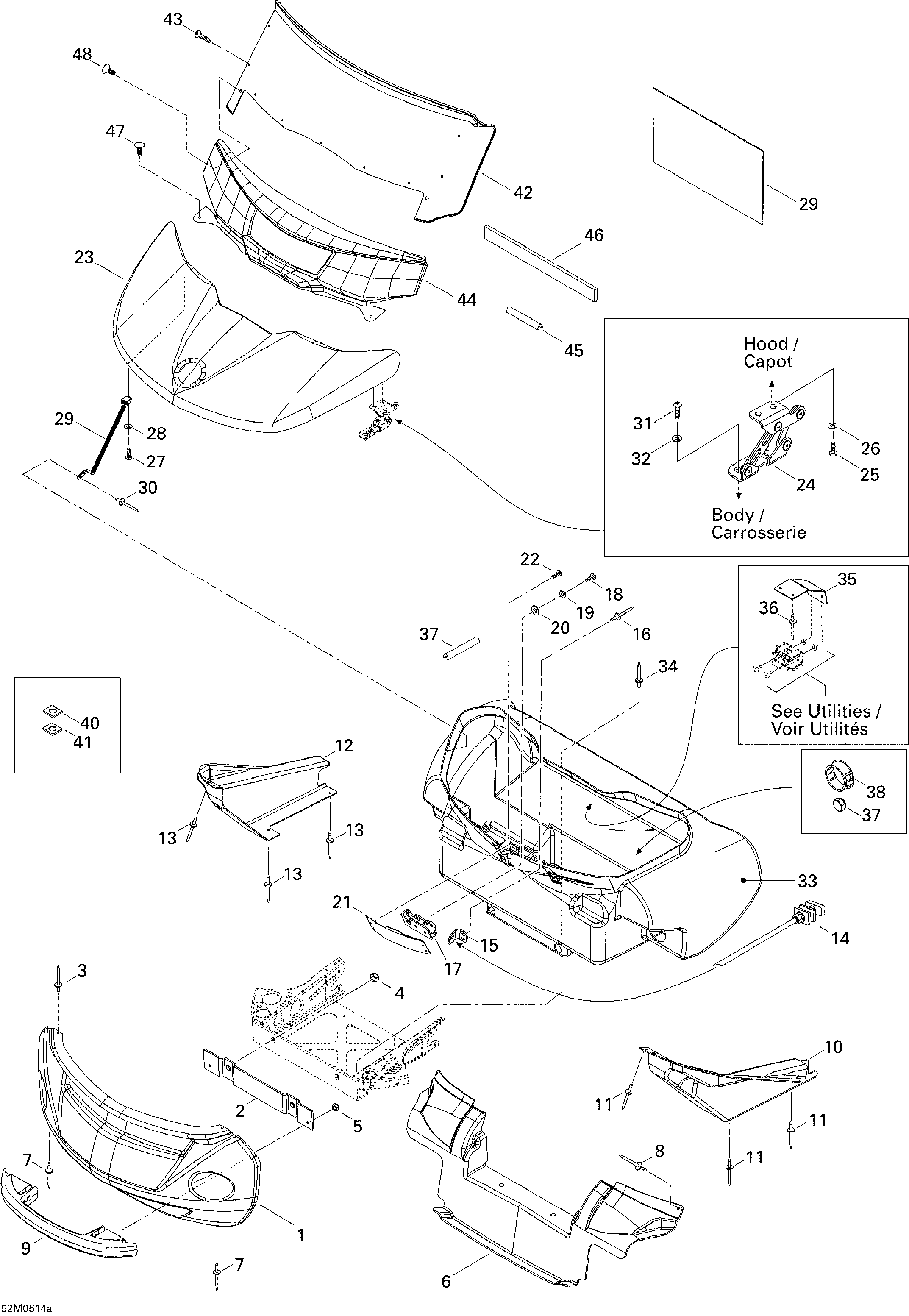

09- Body, Elite 1 для BRP Ski-Doo Elite 1500 2nd Edition - 2004
-
№АртикулНазвание
-
1517302869 HullHull
-
2517303200 Bumper InsertBumper Insert
-
3293150065 RivetRivet
-
4233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
5232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
6517303119 Bottom Pan PanelBottom Pan Panel
-
7293150065 RivetRivet
-
8293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
9517302987 Front BumperFront Bumper
-
10517303001 Front Moulding LHFront Moulding LH
-
11390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
12517303002 Front Moulding RHFront Moulding RH
-
13390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
14517303192 Hood CableHood Cable
-
15517303252 Cable SupportCable Support
-
16293150102 Rivet 3/16Rivet 3/16
-
17517302872 Latch Ass'Y RHLatch Ass'Y RH
-
18250000185 Socket Screw 1/4-20 X 1Socket Screw 1/4-20 X 1
-
19250200042 Lock Washer 1/4Lock Washer 1/4
-
20250200043 Flat Washer 1/4Flat Washer 1/4
-
21517303218 Latch GuardLatch Guard
-
22211000088 Phillips ScrewPhillips Screw
-
23517302875 HoodHood
-
24517302877 Hinge Ass'Y LHHinge Ass'Y LH
-
24517302961 Hinge Ass'Y RHHinge Ass'Y RH
-
25205460860 Socket Screw M6 X 8Socket Screw M6 X 8
-
26234161601 Lock Washer 6 mmLock Washer 6 mm
-
27205440660 Socket Screw M4 X 6Socket Screw M4 X 6
-
28234141601 Lock Washer 4 mmLock Washer 4 mm
-
29204000071 Spring SeatSpring Seat
-
30293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
31205461660 Socket Screw M6 X 16Socket Screw M6 X 16
-
32234161601 Lock Washer 6 mmLock Washer 6 mm
-
33517302879 Storage TrayStorage Tray
-
34293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
35517303431 Storage Tray ReinforcementStorage Tray Reinforcement
-
36293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
37517303315 SealSeal
-
38517303521 Plug 2 1/2''Plug 2 1/2''
-
39291000279 Black PlugBlack Plug
-
40517303258 Rubber Spacer 2 mmRubber Spacer 2 mm
-
41517303259 Rubber Spacer 5 mmRubber Spacer 5 mm
-
42517303027 WindshieldWindshield
-
43211000088 Phillips ScrewPhillips Screw
-
44517303464 HubcapHubcap
-
45517303284 SealSeal
-
46517303427 Headlamp Moulding FoamHeadlamp Moulding Foam
-
47517303276 Gray DartGray Dart
-
48293730014 Black DartBlack Dart
-
49517303233 Floor CarpetFloor Carpet
