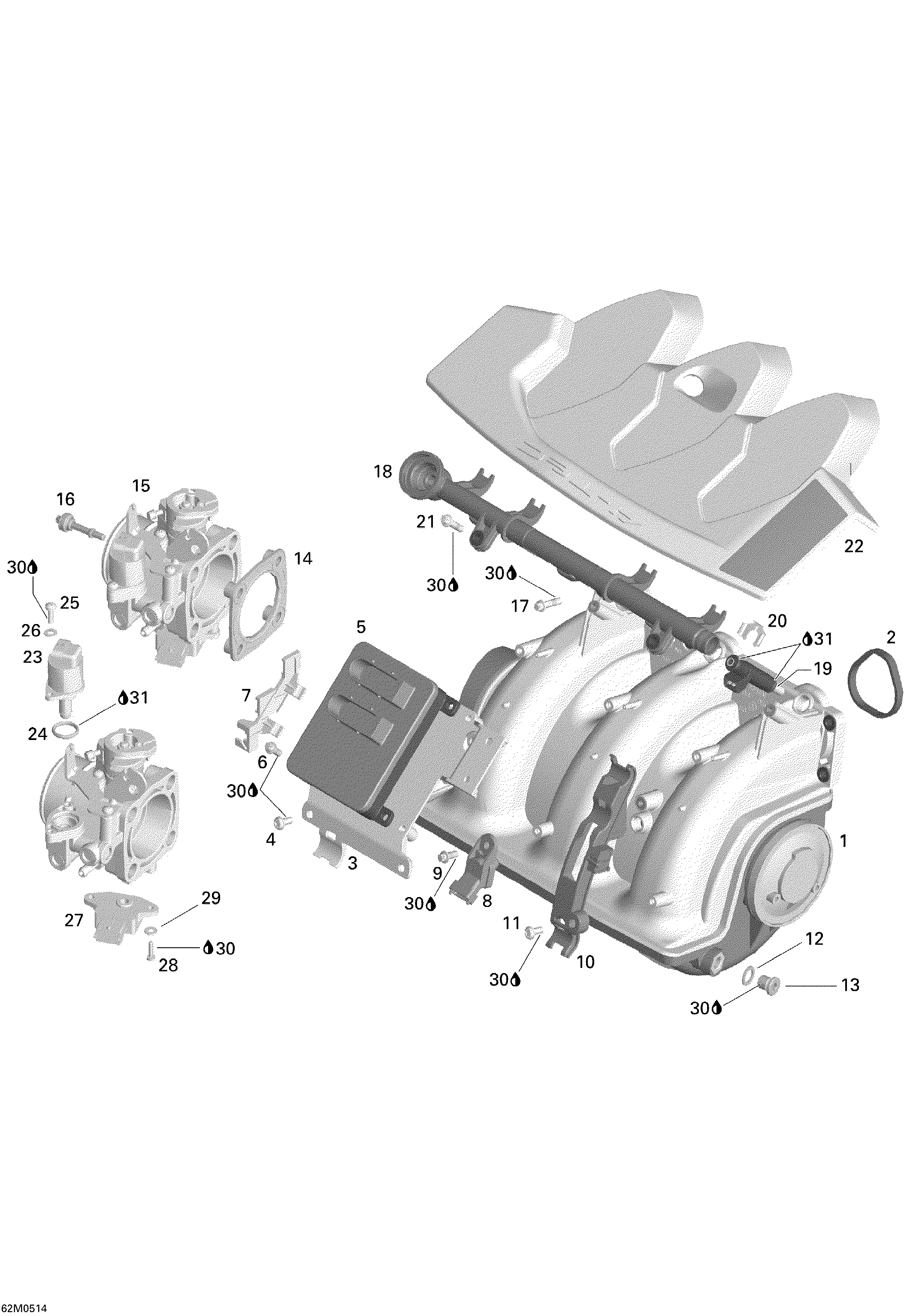

02- Air Intake Manifold для BRP Ski-Doo Elite 1500 2nd Edition - 2004
-
№АртикулНазвание
-
1420867951 Induction ManifoldInduction Manifold
-
2420950740 GasketGasket
-
3420851521 Base PlateBase Plate
-
4420641048 Torx Flanged Screw M6 X 1Torx Flanged Screw M6 X 1
-
5420664922 Electronic BoxElectronic Box
-
6420641583 Torx Flanged Screw M6Torx Flanged Screw M6
-
7420660402 Connector BracketConnector Bracket
-
8420274055 Pressure SensorPressure Sensor
-
9420641048 Torx Flanged Screw M6 X 1Torx Flanged Screw M6 X 1
-
10420660410 Wiring SupportWiring Support
-
11420641583 Torx Flanged Screw M6Torx Flanged Screw M6
-
12420250640 GasketGasket
-
13420241700 Plug Screw M12 X 1.5Plug Screw M12 X 1.5
-
14420950792 Rubber GasketRubber Gasket
-
15420888906 Throttle Body SocketThrottle Body Socket
-
16420440560 Torx Screw M6 X 30.5Torx Screw M6 X 30.5
-
17420641238 Torx Flanged Screw M6 X 2Torx Flanged Screw M6 X 2
-
18420874391 Fuel Rail Ass'YFuel Rail Ass'Y
-
19420874525 InjectorInjector
-
20420851531 Injector ClipInjector Clip
-
21420641238 Torx Flanged Screw M6 X 2Torx Flanged Screw M6 X 2
-
22270000652 CoverCover
-
23420963050 Idle Bypass ValveIdle Bypass Valve
-
24420631780 O-RingO-Ring
-
27270000251 Position SensorPosition Sensor
-
28208641660 Screw Phillips M4 X 16Screw Phillips M4 X 16
-
29234042600 Flat Washer 4 mmFlat Washer 4 mm
-
30293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
31293600054 Engine Oil 4 Strokes, 0w40, 12 X 1 LiterEngine Oil 4 Strokes, 0w40, 12 X 1 Liter
